Table of Contents

DESCRIPTION
Steel structure Ø90
Powder coated
CONFORM
European norm
NF EN 16630
The assembly time for this elliptical trainer is estimated at 30 minutes with 2 people (without concreting).
The equipement has to be regularly maintained by the owner. If one of the modules has to be repaired,
users should not be able to access to it until the repair is done. To ensure good use, routine visual ins-
pections are required, paying special attention to the following points: The cleanliness, ground clearance,
surface condition, visible foundations, sharp edges , missing parts, excessive wear of moving parts and
the structural integrity. Moreover, a more thourough functional check should be carried out every two
months on the following points:
- Check that all the screws are correctly tightened
- Remove all the non expected elements (ex: stickers, clothes, ropes,...)
- Fix paint defects if the module has been damaged, using the adapted paint, specified by the manufactu-
rer.
- Replace all damaged or missing parts with a spare part recommended by the manufacturer.
- Check that all the instruction labels stuck on the modules are in condition and are readable. Replace
them if necessary.
- Check the stability of the modules. If one of them is sligthly unfixed from the foundation,
- Check that all the anchors are secure in the ground.
- Clean all dirty parts with soapy water.
Every year, it is recommended to check carefully the ground fixation. In order to do this, remove the dirt
covering the attachment plate, and inspect cautiously the wear of the fixations and of the concrete. Re-
place them if necessary. Check that the screws are firmly tightened.
Note : If the screws untighten too easily, do not hesitate to use Loctite !
One full year parts and labor guarantee. Every claim regarding condition of the delivered equipment has to
be done within the legal period of the reception of the material. The warranty will not apply to:
-
all degradation during the transport.
-
all degradation due to use differing from which was intended.
-
all degradation due to poor maintenance.
-
any defect claimed after the end of the legal period.
-
any damaged due to a faulty installation and assembly of the module

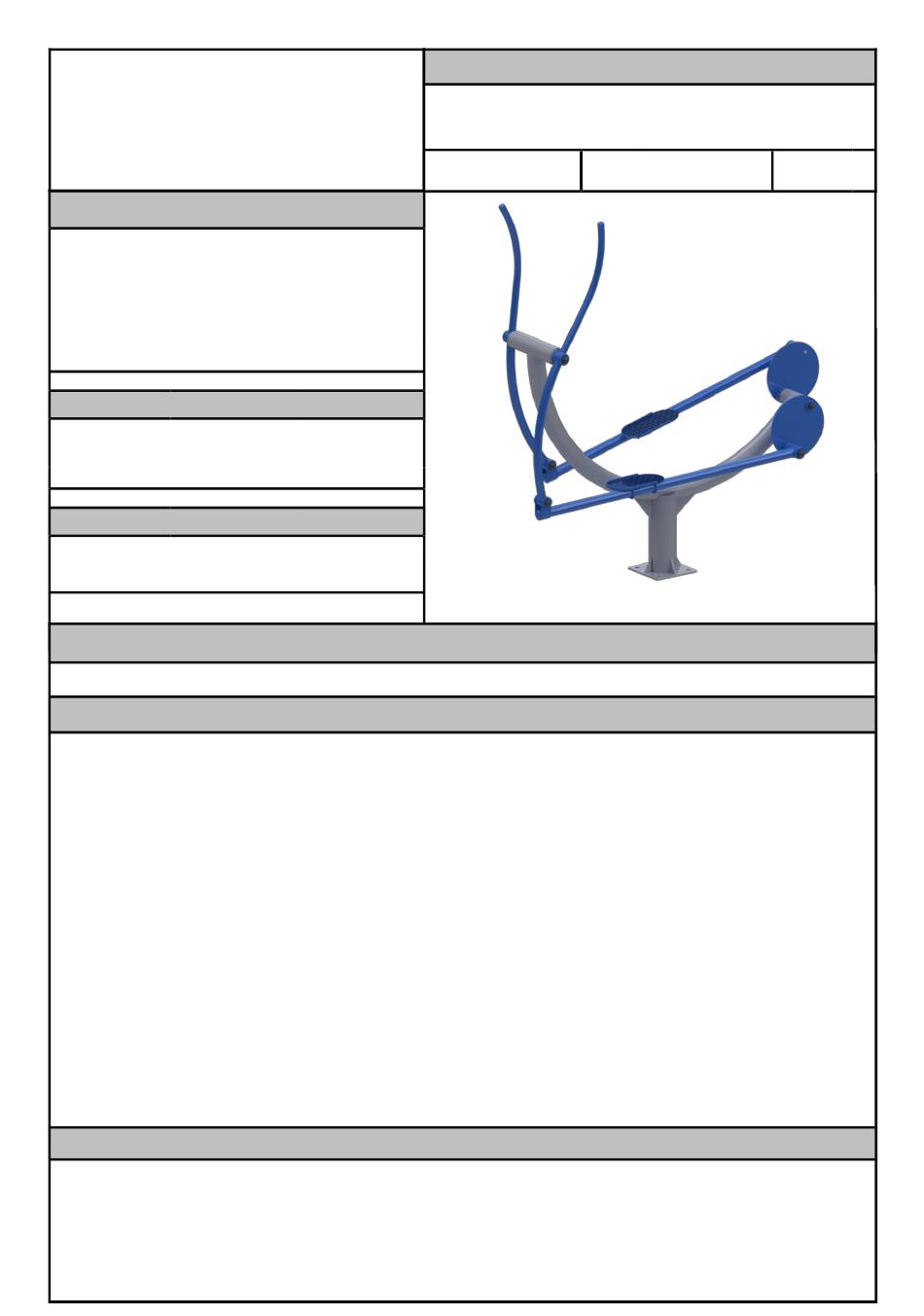

PRODUCT SHEET
ELLIPTICAL TRAINER
PRODUCT REF
ASSEMBLY TIME
MAINTENANCE
WARRANTY
S80102
:
UNIT
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S80102 and is the answer not in the manual?

Questions and answers

Related Manuals for Sodex Sport S80102

Summary of Contents for Sodex Sport S80102

  • Page 1 PRODUCT SHEET ELLIPTICAL TRAINER S80102 UNIT PRODUCT REF DESCRIPTION Steel structure Ø90 Powder coated CONFORM European norm NF EN 16630 ASSEMBLY TIME The assembly time for this elliptical trainer is estimated at 30 minutes with 2 people (without concreting). MAINTENANCE The equipement has to be regularly maintained by the owner.
  • Page 2 TECHNICAL DETAILS AND DRAWINGS Exercise space and evolution space Dimensions Dimensions Height of free fall: 520 mm Evolution zone area: 16 m²...
  • Page 3 USER MANUAL Precautions: - Be careful during the access and egress to the module - Only one person at a time - Do not jump on the module Advantages: This module is ideal: - To strengthen legs’s and arms’s muscles - To work on coordination - To maintain heart fonctions Example:...

  • Page 4: Included Items

    FIXATION & CONCRETING NECESSARY TOOLS (NOT INCLUDED) Wrench 27 Shovel INCLUDED ITEMS NB: All the dimensions are in millimeter Dig a hole for the concrete according to the drawing above. The dimensions of the holes are: - Depth : 0.75 m - Width : 0.7 m - Length : 0.7 m...

  • Page 5: Necessary Items

    FIXATION & SEALING - Assemble the plate attachments as follow: - Pour concrete (EN 206-1) and stop when you are 25 cm under the surface. - Insert the attachment plate into the concrete, ensuring it is settled horizontally. Let the concrete set during 3 or 4 days. NECESSARY ITEMS...
  • Page 6 FIXATION & CONCRETING Remove the nuts and the washers from the at- tachment plates. Mount the equipment onto the attachment plate and fix them together thanks to the fixing kit already used. Fill the gap with dirt, then cover. NECESSARY ITEMS...
  • Page 7 ASSEMBLY NECESSARY TOOLS (NOT INCLUDED) Torque wrench 17 Mallet INCLUDED ITEMS 1– ASSEMBLY OF THE ROTATING PART To make the assembly, follow the steps bellow : - Insert 2 IGUS pads in every bore (4 in total) - Insert the assemblies on the main frame and lock them with the covers + spacers + washers + screws NECESSARY...
  • Page 8 PACKING LIST ELLIPTICAL TRAINER PRODUCT REF S80102 Index C UNIT NOMENCLATURE Package Weight Dim. Index Designation Description Quantity Packing Method N° (kg) (mm) Plastic S80102-01 Main frame bubbles+cardb 1900x1375x500 oard 5 layers Plastic S80102-02 Right arm bubbles+cardb 1650x300x200 oard 5 layers...

  • Page 9: Packing List

    PACKING LIST ELLIPTICAL TRAINER PRODUCT REF S80102 Index C UNIT ACCESSORIES PUT IN CLEAR PVC BAG Package Designation Description Note N° SS Screws M10x20 + BITH1020 To fix the arms to the SS Washers 10 + 4 + 4 + 4...
