INSTALLATION
ONLITE central eBox BSIM
ONLITE central eBox BSIM (22 185 298)
Systembus
System bus
Bus système
Bus di sistema
Bus de sistema
Systeembus
Spannungsversorgung 1
L1
Voltage supply 1
L2
Alimentation en tension 1
L3
Alimentazione di tensione 1
N
Suministro de tensión 1
PE
Spanningsvoorziening 1
Spannungsversorgung 2
L
Voltage supply 2
N
Alimentation en tension 2
PE
Alimentazione di tensione 2
Suministro de tensión 2
Spanningsvoorziening 2
0,75 – 2,5 mm²
8 – 9 mm
eindrähtig/feindrähtig
solid/fine-stranded
monobrin/fil fin
a filo unico/a fili sottili
monofilar/hilo fino
massief/soepel
70 mm
58 mm
ZUMTOBEL LIGHTING GmbH
Schweizer Strasse 30, A-6851 Dornbirn AUSTRIA
www.zumtobel.com

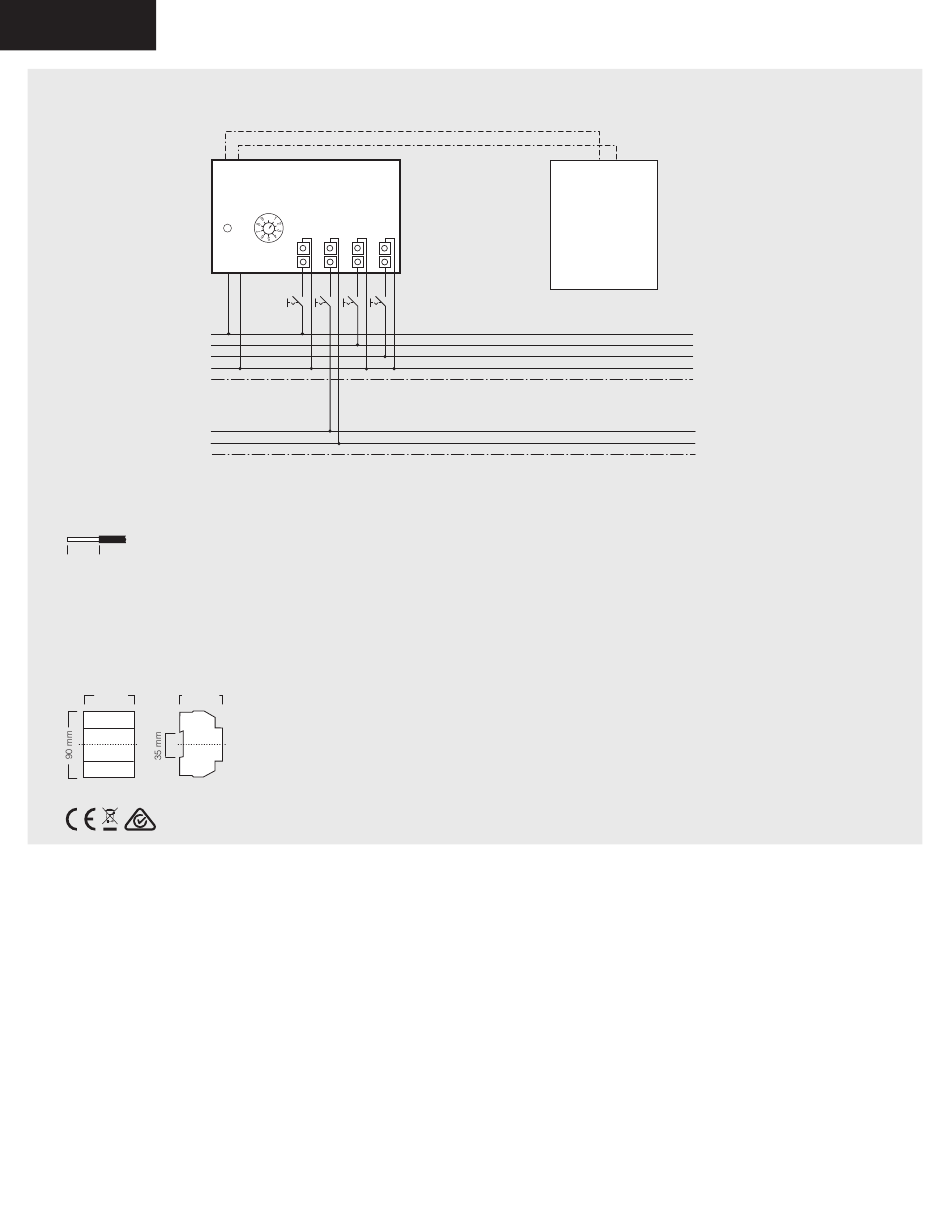

B1 B2
ONLITE central
eBox BSIM
0
S1
S2
S3
S4
Status
N
N
N
N
Address
L N
L
L
L
L
B1 B2
ONLITE central
eBox MS1200
ONLITE central
eBox MS1700
230/240 V AC
50/60 Hz
230/240 V AC
50/60 Hz
