Thank you for purchasing our Studio Designs, Inc.
Gracias por comprar nuestro mueble Studio Designs, Inc.
Merci d'avoir acheté un meuble Studio Designs, Inc.

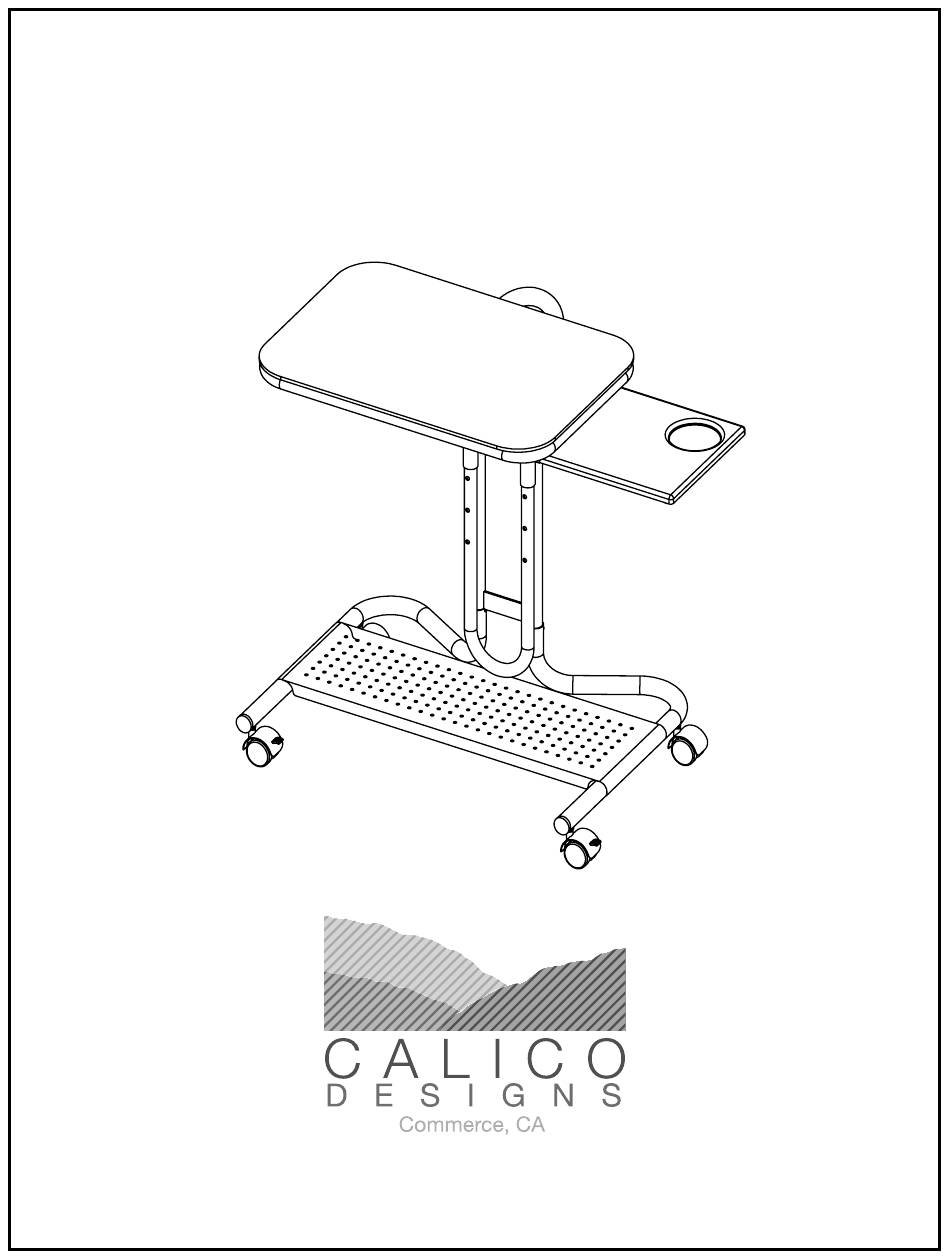

LAPTOP CART
Model #51200 Chrome / Black Glass
Model #51200 Chrome / Clear Glass
Product Support Line:
866.942.0492
Office: 562.942.0492
Rev. 9.20.2011
Advertisement
Related Manuals for CALICO DESIGNS 51200
Summary of Contents for CALICO DESIGNS 51200
- Page 1 Thank you for purchasing our Studio Designs, Inc. Gracias por comprar nuestro mueble Studio Designs, Inc. Merci d’avoir acheté un meuble Studio Designs, Inc. LAPTOP CART Model #51200 Chrome / Black Glass Model #51200 Chrome / Clear Glass Product Support Line: 866.942.0492 Office: 562.942.0492...
- Page 2 ASSEMBLY INSTRUCTIONS - IMPORTANT: Carefully unpack & identify each component before attempting to assemble. Refer to parts list. Please take care when assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts, or information on other products, please visit our website: www.studiodesigns.com or call or write us.
- Page 3 PARTS LIST / LISTA DE PARTES / LISTE DES PIÈCES DÈTACHÉES DESCRIPTION / DESCRIPCIÓN / DESCRIPTION QUANTITY / CANTIDAD / QUANTITÉ Left Leg Right Leg Main Frame Handle U Tube Top Frame Glass Top Mouse Pad Support Mouse Pad Bottom Shelf Height Adjustment Lever p.
- Page 4 Locking Caster Non-Locking Caster Allen Bolt Stopper End Cap Glass Spacer Phillips Screw Allen Wrench Hex Wrench p. 4...
- Page 5 Step 1 • Insert End Caps (16) to Left Leg (1) and Right Leg (2). • Insert Locking Casters (12) to bottom Holes of Left Leg (1) and Right Leg (2). • Insert Non-Locking Casters (13) to bottom holes of Left Leg (1) and Right Leg (2). •...
- Page 6 Step 2 HOOK HOOK THIRD HOLE • Attach Height Adjustment Lever (11) to inside holes of Handle (4). • Attach U Tube (5) to Main Frame (3), pull up U Tube and fix the third hole on hook of Height Adjustment Lever (11) for easier assembly later of the Top Frame.
- Page 7 Step 3 • Attach Top Frame (6) to U Tube (5) using Allen Bolts (14). • Attach Bottom Shelf (10) to Legs (1 & 2). • Insert Glass Spacers (17) into holes of Top Frame (6). p. 7...
- Page 8 Step 4 •Attach Mouse Pad Support (8) to Top Frame (6) using Phillips Screws (18). •Attach Glass Top (7) to Top Frame (6) using Allen Bolts (14). p. 8...
- Page 9 Step 5 • Slide Mouse Pad (9) onto Mouse Pad Supports (8). • Screw Stoppers (15) to bottom holes of Mouse Pad (9). p. 9...
- Page 10 Step 6 To Raise And Lower Desktop : • To Raise the desktop, steady the Laptop by placing your feet on the legs, then use two hands to grab the desktop and pull up to the desired position. • To lower the desktop, lightly pull the desktop up then lift up Height Adjustment Lever to allow the metal tube to slide down easily and release desktop to the desired position.
-
Page 11: Limited Warranty
GARANTIE LIMITÉE Calico Designs (la « Compagnie ») garantit à l’acheteur original que ce produit sera exempt de tout défaut de fabrication et matériel s’il est utilisé à la maison et dans des conditions d’exploitation normales, tel que décrit à la présente. La Compagnie réparera ou remplacera, à...
