OSP DESIGNS SEATING LIMITED WARRANTY

OSP Designs chairs are warranted from the date of purchase against failure due to material and workmanship as follows:
• 5 Years on all non-moving metal parts.
• 2 Years on component parts including Control mechanisms, pneumatic cylinders, wood, plastic parts, base and casters.
• 1 Year on upholstery fabric and foam against wear and deterioration.
To make a warranty claim, contact Parts Department. Provide model number, proof of purchase, description of the problem and obtain return authorization.
At it's option Office Star Products will:
(a) Supply compatible components of current manufacture.
(b) Repair the customer's component. The customer must prepay freight on any components returned to the factory. Return freight on components
still in warranty will be paid by Office Star Products.
*All warranties are limited to the original purchaser for normal Residential usage by persons weighing 200 lbs. or less. This warranty will not cover labor, freight
or damage from misuse, abuse, negligence, alteration, accident, vandalism, rusting, acts of nature or any other event beyond the control of Office Star
Products. The warranty does not cover cosmetic damage that may result from normal use. Liability for incidental or consequential damages is excluded. The
user assumes all risk of injury resulting from use of this product. This warranty gives you specific legal rights, and you may also have other rights which vary
from state to state.
Our quality standards are among the highest in the industry. Sometimes, no matter how hard we try, there are times when parts are damaged or missing. Our
Parts Department will do everything possible to promptly remedy the problem. Contact us via e-mail parts@officestar.net, by Fax 1-909-930-5629, or toll free
parts number 1-800-950-7262, Monday through Friday 8:00 a.m. - 5:00 p.m. Pacific Time.

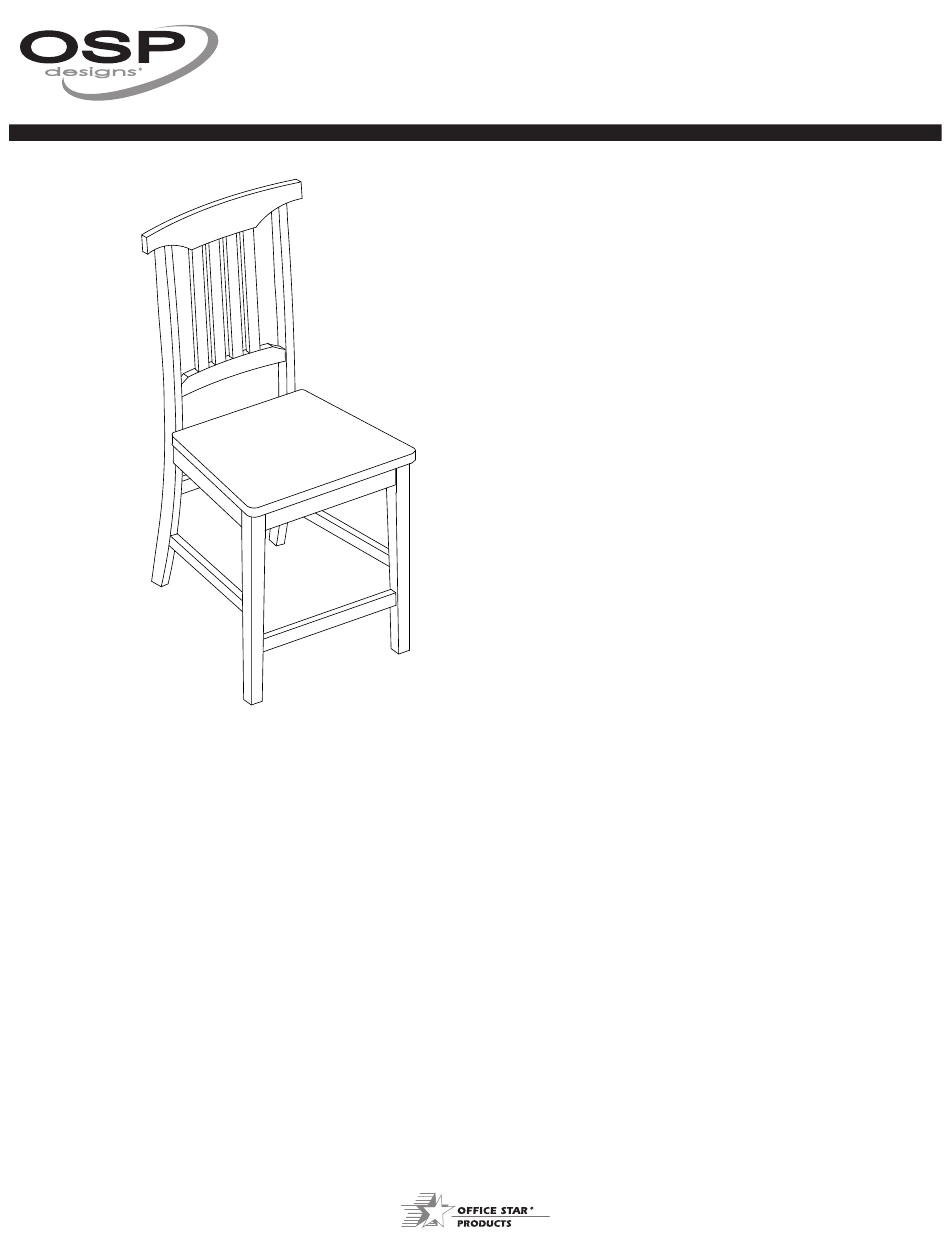

BEKC-AW

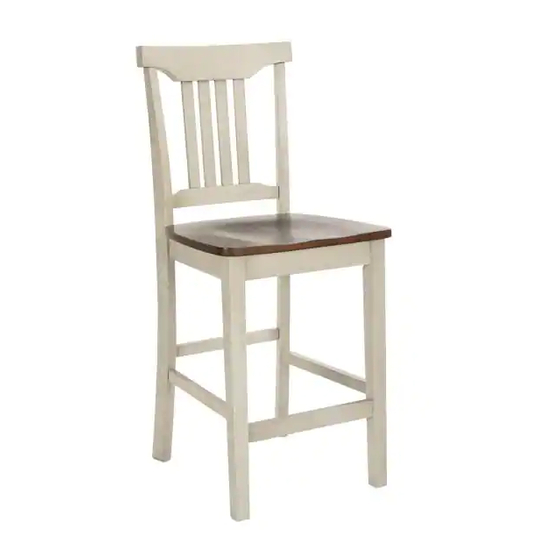

BERKLEY PUB CHAIR
ASSEMBLY INSTRUCTIONS

WARNING

1. Do not use this product unless all screws and bolts are securely
tightened.
2. Check that all screws and bolts are tight every three months or as
needed.
3. Dispose of packing material properly. Do not use plastic cover as
head covering. It may cause suffocation.
4. Do not use this product as a stepladder.
5. Use this product for its intended purpose only.
6. Intended for residential use only.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BERKLEY BEKC-AW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for OSP Designs BERKLEY BEKC-AW

  • Page 1 6. Intended for residential use only. OSP DESIGNS SEATING LIMITED WARRANTY OSP Designs chairs are warranted from the date of purchase against failure due to material and workmanship as follows: • 5 Years on all non-moving metal parts. • 2 Years on component parts including Control mechanisms, pneumatic cylinders, wood, plastic parts, base and casters.
  • Page 2 PARTS LIST (A) Chair Back (1PC) (B) Seat Frame (1PC) (C) Seat (1PC) (D) Front Leg (Left & Right) (2PCS) (E) Side Stretcher (2PCS) (F) Front Stretcher (1PC)
  • Page 3 HARDWARE LIST DRAWING DESCRIPTION SIZE QUANTITY Short Bolt 3 PCS 1/4” x 1 3/4” Long Bolt 4 PCS 1/4” x 3” Screw 12 PCS 5/32” x 1 1/2” Washer 11 PCS 5/16” x 6/8” x 0.008” Lock Washer 11 PCS 5/16”...
  • Page 4 STEP 1 DO NOT FULLY TIGHTEN BOLTS. STEP 2 DO NOT FULLY TIGHTEN BOLTS.
  • Page 5 STEP 3 (4)(5) (6) DO NOT FULLY TIGHTEN NUTS (6). STEP 4 APPLY FIRM PRESSURE TO ALIGN & FULLY TIGHTEN ALL BOLTS (1 & 2) & NUTS (6) WITH KEY WRENCH (7).
  • Page 6 STEP 5 FULLY TIGHTEN ALL SCREWS (3) USING PHILLIPS SCREWDRIVER (not provided).
