Accumax Spectroline XRP-3000A Quick Manual

ENGLISH

To Start

1. Install the batteries.

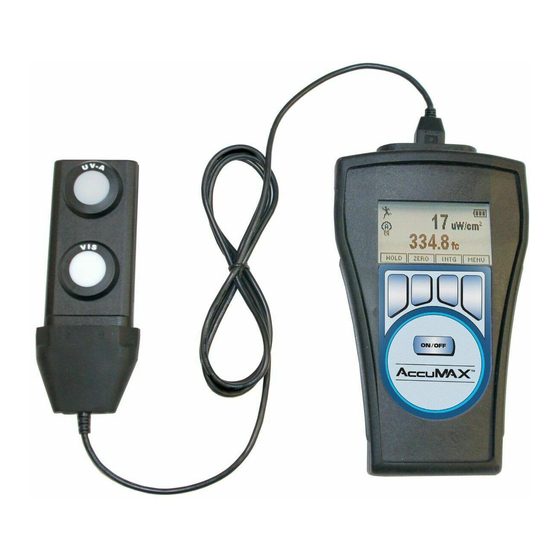

2. Attach the sensor detector either directly to the readout unit or by using the adapter cable.
3. To turn the meter on, press and hold ON/OFF for two seconds.
4. The AccuMAX automatically opens in OPERATION mode (see screen below) and begins to take readings.
Shine the light directly over the sensor of interest (UV or VIS) on the dual detector. The meter will instantly read and display
the light level for each wavelength (intensity/unit area).

5. Display and Icons:

The AccuMAX uses a liquid crystal display (LCD) with a combination of easy-to-read icons and alphanumeric characters to
denote readings, units, operating mode and meter status in a four-line format. UV and VIS level readings are automatically
adjusted for the magnitude of the measurement (autoranging) and then displayed with the appropriate 4-digit resolution units.
For example: 12,000 µW/cm
a wide range of light levels. Icons provide a quick glance at data type and the available functions at every operational
screen.
Running Man Icon––
Meter in running operation
Open Hand Icon––
Holds data-constant display
Mountain peak Icon––
Peak value displayed
XRP-3000A Radiometer/Photometer Quick Guide
Thank you for purchasing the AccuMAX™ meter.
This Quick Guide is intended to get you started as soon as possible.
UV-A sensor
Visible sensor
Dual-sensor detector
(XDS-1000A)
Meter readout unit
(XR-1000)
Detected sensor wavelengths
Operation mode
Data type
Available menu-driven operations,
correspond to keypad buttons
2 would be displayed as 12.00 mW/cm
Freezes data during integration
Water-resistant
adapter cable
2 . This enables the readout unit to accept and respond to
Bulb A Icon––
Absolute readings displayed
Bulb Z Icon––Zero readings
with ambient light subtracted
Snowflake Icon––
™
Battery power bars
UV-A reading
Visible reading
Battery Power Bars
Hourglass Icon––Integration of
light levels––continuous count
Circular Arrows Icon––
Integration in progress
