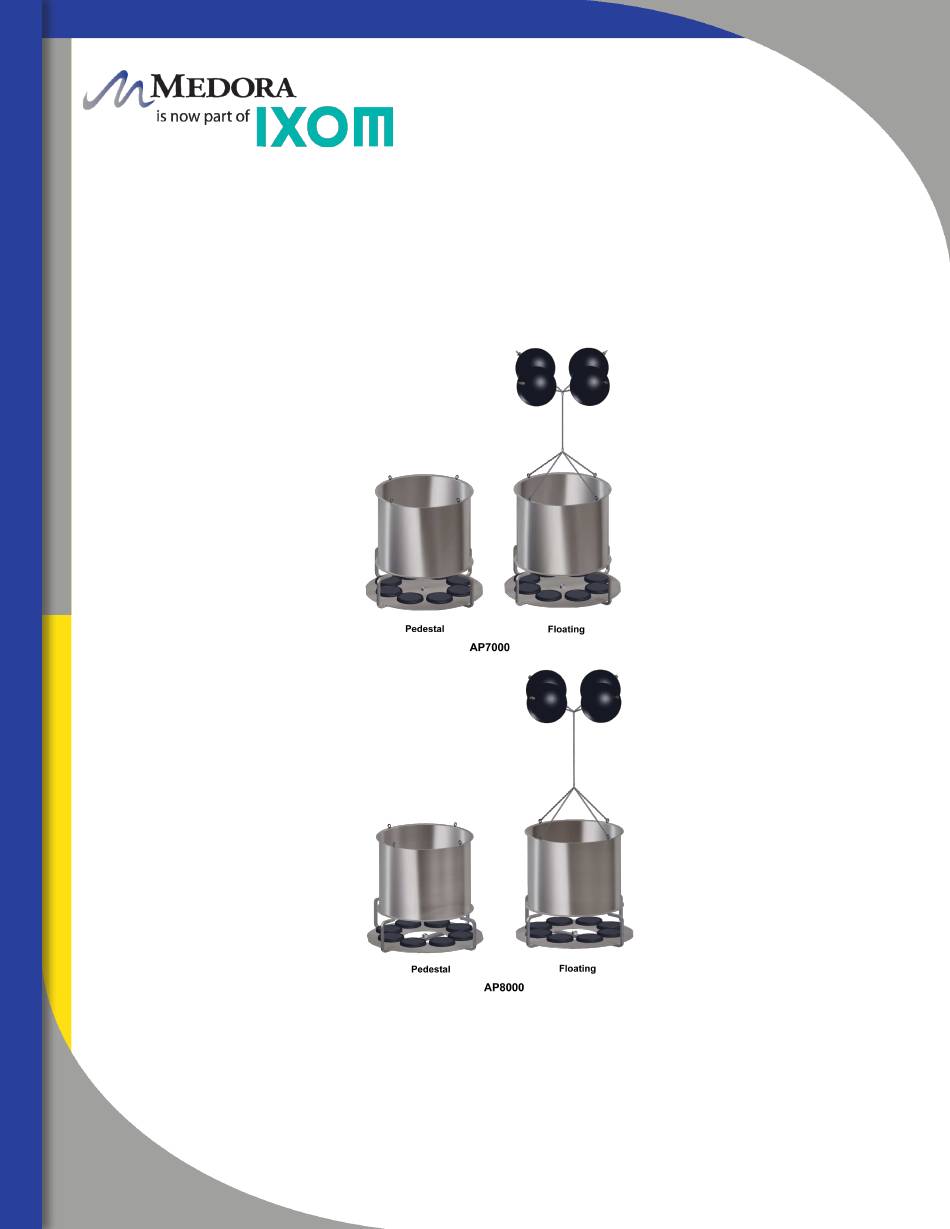

- Page 1 AP7000 & AP8000 Operation & Maintenance Manual © 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | info@medoraco.com O&M_AP7000_&_AP8000_10097_20200602...
-
Page 2: Table Of Contents
Customer Service About Ixom Ixom combines knowledge and experience from across the water quality spectrum to help solve real-world problems. Whether in Lakes, Stormwater Retention Ponds, Raw Drinking-Source Reservoirs, Water Treatment Plants, Potable Storage Tanks, or Wastewater Treatment Processes, Ixom equipment continues to be at the forefront as the #1 world leader for in-situ water body treatment. -
Page 3: Safety
Most accidents can be avoided by using common sense and concentration on the job being done. Carefully read safety information when you see any safety symbols. © 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | info@medoraco.com 1949_10036_20200528 O&M_AP7000_&_AP8000_10097_20200602 - 1... - Page 4 CAUTION: EDGES MAY BE SHARP AND CAUSE WARNING: ICE SURROUNDING MACHINE MAY LACERATION IF PROPER CARE IS NOT USED. NOT SUPPORT WEIGHT, KEEP CLEAR OF THIN ICE. © 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | info@medoraco.com 1949_10036_20200528 O&M_AP7000_&_AP8000_10097_20200602 - 2...
- Page 5 "OFF" position. The On/Off switch is to be by OSHA. used as the emergency stop. © 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | info@medoraco.com 1949_10036_20200528 O&M_AP7000_&_AP8000_10097_20200602 - 3...
-

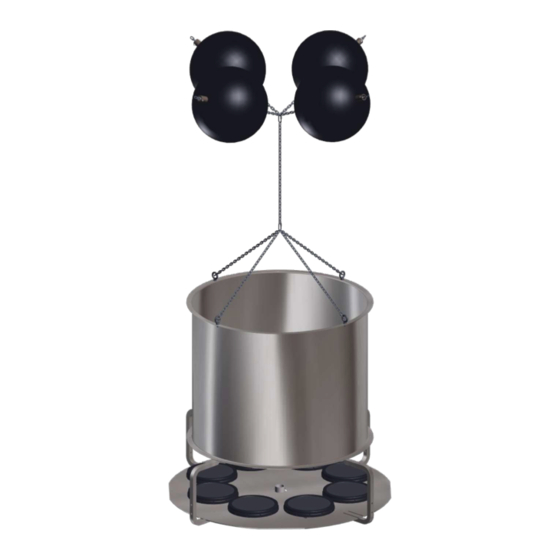

Page 6: Package Contents
For air supply configuration, please consult with factory. Additional hardware and fittings may be required for different configurations. Extension legs also available. 100’ Air Hose © 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | info@medoraco.com 10098_20200602 O&M_AP7000_&_AP8000_10097_20200602 - 4... - Page 7 Optional Accessories: For air supply configuration, please consult with factory. Additional hardware and fittings may be required for different configurations. 100’ Air Hose © 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | info@medoraco.com 10098_20200602 O&M_AP7000_&_AP8000_10097_20200602 - 5...
-
Page 8: Installation
OPTIONAL HOSE ASSEMBLY AND ATTACHMENT For attaching hoses to the unit, assemble using hose clamp and 5/16" nut driver on each end. Prior to tightening hose Figure 1: AP Unit Pedestal Configuration clamp, be sure that the clamp is located above the barb on Model may vary the hose flange to prevent the hose from slipping off the flange during operation. © 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | info@medoraco.com 10099_20200602 O&M_AP7000_&_AP8000_10097_20200602 - 6... - Page 9 Stop Bolt and Float Pipe For floating configurations additional anchoring systems may be required, such as mooring or tethering, to keep the unit in position within the pond or basin. In some applications, suspending the unit from and structure above will work, just be sure to use the dedicated lifting eyelets or eyebolts. OPTIONAL HOSE ASSEMBLY AND ATTACHMENT For attaching hoses to the unit, assemble using hose clamp and 5/16" nut driver on each end. Prior to tightening hose clamp, be sure that the clamp is located above the barb on the hose flange to prevent the hose from slipping off the Figure 2: AP Unit Float Assembly flange during operation. © 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | info@medoraco.com 10099_20200602 O&M_AP7000_&_AP8000_10097_20200602 - 7...
-
Page 10: Operation
AP Unit to run on a timer or local SCADA system. Refer to air supply manufacturer for recommended duty cycle and other operational recommendations and constraints. Figure 3: Flow Leaving AP Unit © 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | info@medoraco.com 10100_20200602 O&M_AP7000_&_AP8000_10097_20200602 - 8... -
Page 11: Deployment
To set intake depth, the anchor chain should be 30” less than desired intake measurement. Figure 1: Typical Deployment (Not to scale) Air unit should be located away from water. Model May Vary. © 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | info@medoraco.com 10221_20200602 O&M_AP7000_&_AP8000_10097_20200602 - 9... - Page 12 Part Number Size Hose Barb, Male Cam Lock 100679 3/4” 100680 1” 100681 1 1/2” Subject to change without notice. Hose Splice Connection © 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | info@medoraco.com 10221_20200602 O&M_AP7000_&_AP8000_10097_20200602 - 10...
- Page 13 *Part Not included in kit, use part from Air Supply Hardware Kit Parts. Optional Optional Configuration Configuration Tee Fitting Connections © 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | info@medoraco.com 10221_20200602 O&M_AP7000_&_AP8000_10097_20200602 - 11...
-
Page 14: Maintenance
If these recommendations are not followed, the AP Unit will cause thin ice several meters around the vicinity, creating a very large hazardous area. © 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | info@medoraco.com 10101_20200602 O&M_AP7000_&_AP8000_10097_20200602 - 12... -
Page 15: Technical Specifications
Maintenance / Warranty- Limited maintenance. Limited manufacture’s warranty. See Warranty Statement for details. Patent Pending Subject to change without notice. © 2020 Ixom | www.medoraco.com | 866 - 437 - 8076 | info@medoraco.com 1719_10102_20200602 O&M_AP7000_&_AP8000_10097_20200602 - 13... -
Page 16: Warranty
Where labor is included, in lieu of sending a factory service crew to the site for minor repairs, Ixom may choose to send the replacement parts to the owner postage-paid and may pay the owner a reasonable labor allowance, as determined solely by Ixom, to install the parts. -
Page 17: Customer Service
OSHA to perform the necessary work to install or remove SolarBee and GridBee equipment, and are knowlegeable in the regulations and standards of OSHA. If you feel the need to service your SolarBee or GridBee circulation equipment, please contact Ixom's Customer Service Department at: +1 866 437 8076 ©...
