Instructions for
Installation, Operation,
Care and Maintenance
Note: N2-Blast
and Blast-off
®
South-Tek Systems, LLC.
Reliable Automatic Sprinkler Co., Inc., 103 Fairview Park Drive, Elmsford, New York 10523
are registered trademarks of
®

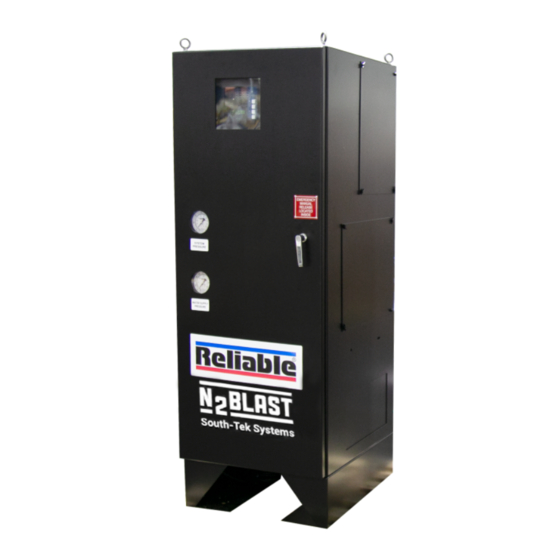

Model DDX N2-Blast
Type D Preaction System
2" (50mm), 2-1/2" (65mm),
3" (80mm), 4"(100mm)
10 PSI (0.7 bar) Pneumatic
Supervising Pressure
Single Interlock - Electric Release
Double Interlock - Electric/Electric Release
General Description
The Reliable Model DDX PrePaK system with integrated
nitrogen generation is a completely self-contained, super-
vised preaction system that can be readily installed within
a floor space of less than 7 ft
swing). Installation of the PrePaK system (not including ex-
terior devices, i.e., detectors and alarm bells) requires three
piping connections: the water supply, the sprinkler system,
and the drain. Reference locations of these piping connec-
tions are shown in Fig.1. Independent electrical supplies are
required for the optional system air compressor (115 or 220 VAC),
the optional Potter Model 4410 Releasing Control Panel (115/220
VAC), and the nitrogen generator (115 VAC).
Full assembly drawings for the units are available on the
Reliable Automatic Sprinkler Company website (www.reli-
ablesprinkler.com).
The Reliable Model DDX N2-Blast
porates a South-Tek Systems FPS-900 pressure swing ad-
sorption N2-Blast
nitrogen generator, complete with inde-
®
pendent air compressor, nitrogen storage tank, and control
system. The nitrogen generator is completely wired, tested,
and integrated with the Model DDX PrePaK system, and
supplies 98% pure nitrogen to the piping network to limit
electrochemical, galvanic, and micro-biologically influenced
corrosion (MIC). Operation and maintenance information
can be found in this bulletin as well as the South-Tek Sys-
tems website (www.southteksystems.com).
The Reliable Model DDX PrePaK system utilizes an option-
al Potter Model PFC-4410-RC Releasing Control Panel. This
fully programmable, microprocessor-based releasing panel
is Underwriters Laboratories, Inc. Listed and is in compli-
ance with NFPA 13 and NFPA 72. The PFC-4410-RC is
totally zone and output programmable such that the Reli-
able Model DDX PrePaK system can be utilized in many dif-
ferent preaction applications without having to rewire any of
the factory installed devices. Once the previously described
connections are completed, the 24 VDC detectors, output
devices, and relay contacts may be connected to achieve
the desired system implementation.
Bulletin 735 January 2021
PrePaK™
®
(0.65 m
) (not including door
2
2
PrePaK system incor-
®
Advertisement
Related Manuals for Reliable DDX N2-Blast PrePaK
Summary of Contents for Reliable DDX N2-Blast PrePaK
- Page 1 24 VDC detectors, output devices, and relay contacts may be connected to achieve the desired system implementation. Note: N2-Blast and Blast-off are registered trademarks of ® ® South-Tek Systems, LLC. Reliable Automatic Sprinkler Co., Inc., 103 Fairview Park Drive, Elmsford, New York 10523...
-
Page 2: Technical Data
Technical Data a local alarm and an alarm at the fire alarm panel. Electri- 1. The Reliable Model DDX PrePaK systems are rated for cal relays inside the releasing control panel can be used to a minimum supply pressure of 20 psi (1.4 bar) and a shut down air moving equipment or activate security doors maximum supply pressure of 250 psi (17.2 bar). - Page 3 Fig. 1...
-
Page 4: Installation Requirements
Reliable Model DDX Type D PrePaK sys- mounted on the interior of the enclosure. All field wiring tem must be UL and/or ULC Listed or FM Approved, as ap- is connected to this terminal box. - Page 5 This causes the supply pressure. clapper to open. Refer to Reliable Bulletin 519 for further Energizing the releasing solenoid valve allows the deluge details.
-
Page 6: Maintenance
Resetting Single And Double Interlock Systems Maintenance 1. Close the main valve controlling water supply to the del- The Reliable Model DDX PrePaK system and associated uge valve and close the ¼” air shutoff valve. equipment shall periodically be given a thorough inspection and 2. - Page 7 Testing The Model DDX PrePaK Without WARNING: PRIOR TO OPERATING THE SOLENOID VALVE, BE SURE TO CLOSE THE SYSTEM CONTROL Causing Water Flow VALVE TO AVOID UNINTENTIONAL OPERATION OF 1. Close the main valve controlling water supply to the del- THE DELUGE VALVE uge valve and open the main drain valve.
- Page 8 Fig. 2...
- Page 9 Fig. 3...
- Page 10 Fig. 4...
- Page 11 Fig. 5...
- Page 12 Fig. 6...
- Page 13 Fig. 7...
- Page 14 Fig. 8 — Wiring Diagram...
- Page 15 Fig. 9 — Wiring Diagram...
- Page 16 Single Interlock, Single Detection Zone Potter Program #6 1. Apply power to panel. 5. Press the FUNCTION button until the display reads “PRO- 2. Slide the program switch down. GRAM ##.” (the second “#” character refers to the current 3. Press the FUNCTION button until the display reads “PASS- program number between “0”...
- Page 17 Single Interlock, Cross Zoned Detection Potter Program #7 5. Press the FUNCTION button until the display reads “PRO- 1. Apply power to panel. GRAM ##.” (the second “#” character refers to the current 2. Slide the program switch down. program number between “0” and “24”). 3.
- Page 18 Double Interlock Preaction, Single Zone Detection Potter Program #9 5. Press the FUNCTION button until the display reads “PRO- 1. Apply power to the panel. GRAM ##.” (the second “#” character refers to the current 2. Slide program switch down. program number between “0”...
- Page 19 Double Interlock Preaction, Cross Zoned Detection Potter Program #10 5. Press the FUNCTION button until the display reads “PRO- 1. Apply power to the panel. GRAM ##.” (the second “#” character refers to the current 2. Slide program switch down. program number between “0”...
- Page 20 Single Interlock Preaction, New York City 11. Press the SELECT button until the display reads “PROGRAM #0.” Custom Program 12. Press the SET button. 1. Apply power to the panel. 13. Press the FUNCTION button until the display reads “OUTPUT 2.
- Page 21 Make sure that replacement parts South-Tek Systems and Reliable. The user(s) of this docu- meet or exceed the original parts’ specification. ment should confer any questions with a qualified South- •...
-
Page 22: Key Features
Key Features N2-Blast FPS-900-RS Specifications ® • Nitrogen Purity 98.5+% • Integrated Installation in Reliable PrePak Air Compressor • Display Hours/Power on/Operating An oil-less internal air compressor has an engineered • Storage Pressure 60-70 PSIG (±5%) dampening system reducing vibration and noise through- •... - Page 23 To run the system in normal run mode: Power Loss Alarm Mode (-----) 1. Connect power to the system. The Power Loss alarm activates when the nitrogen 2. Open the nitrogen generator’s 3-way outlet ball valve generator loses power for any reason. This will cause the to nitrogen-out position.
-
Page 24: Key Contacts
Key Contacts Air Intake Filter The integrated air compressor, of the N2-Blast FPS- ® 900-RS, has an air intake pre-filter. It prevents particles Contact your local provider/installer for any questions from entering the compressor housing and damaging in- about the performance and/or maintenance of the system. ternal components. - Page 25 Fig. 10 - Nitrogen Generator Filter Locations...
- Page 26 Optional Seismic Kit: Reliable part number 6501200041 (25” x 28” cabinet for 2” -4” systems without nitrogen generator) and 6501200042 (30” x 33” cabinet for 6” and 8” systems, and all units with nitrogen generator) are seismic upgrade kits required to make the Reliable PrePaK OSHPD compliant. One...
