NL-28
NL-28
User manual
C
ATTENTION!
All persons involved in installation, commissioning,
operation, maintenance and repair of this product
should be made available to these instructions.
V. 1.0 ENG
Jan2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NL-28 and is the answer not in the manual?

Questions and answers

Summary of Contents for Thermopatch NL-28

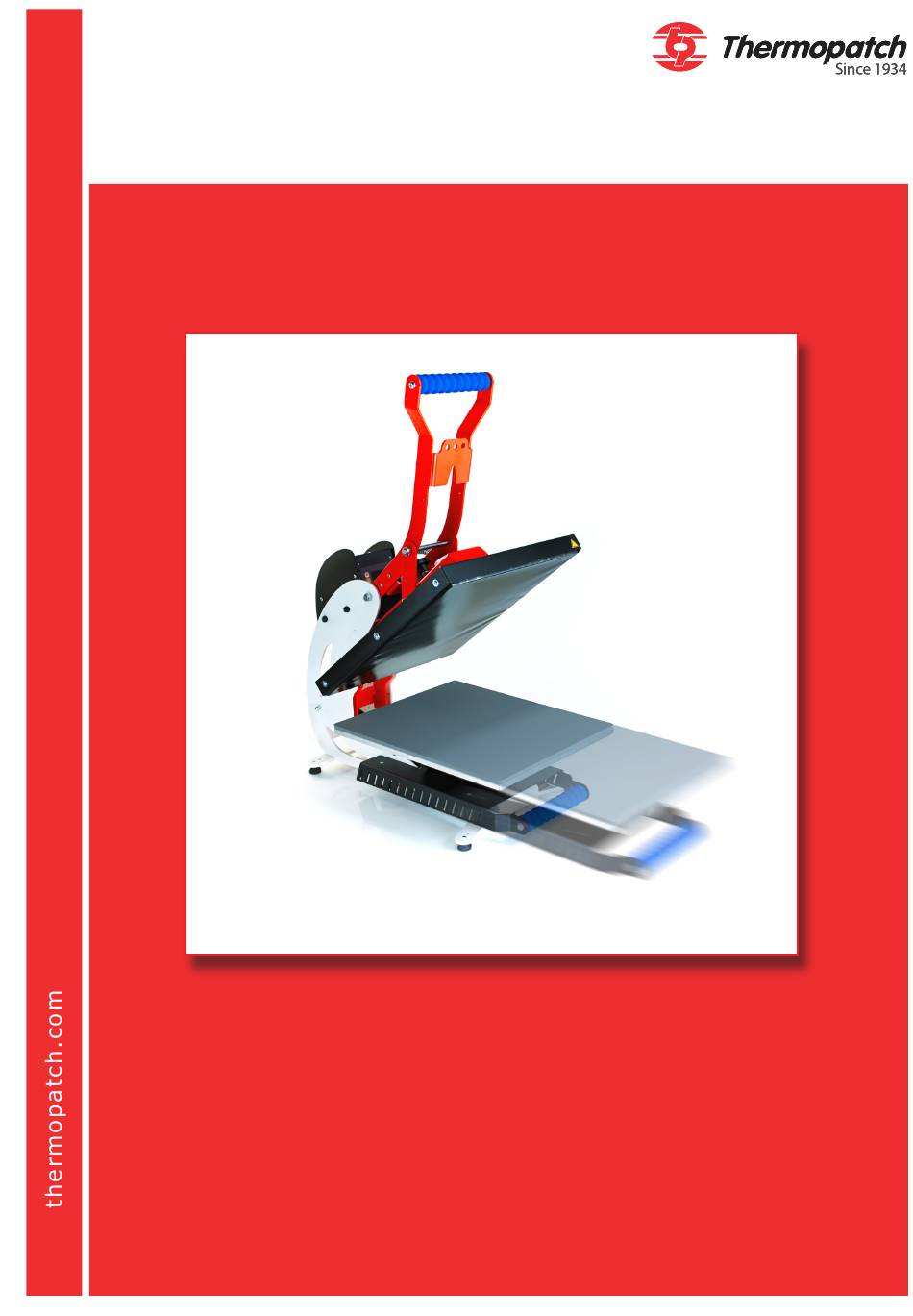

  • Page 1 NL-28 NL-28 User manual ATTENTION! All persons involved in installation, commissioning, operation, maintenance and repair of this product should be made available to these instructions. V. 1.0 ENG Jan2015...
  • Page 2: Copyrights

    Copyrights © 2016, Thermopatch bv, Almere, The Netherlands. No part of this publication may be reproduced by any means without the prior written permission of Thermopatch bv, The Netherlands. Thermopatch and the Thermopatch logo, Thermoseal and Thermocrest are registered trademarks of Thermopatch.
  • Page 3: Introduction

    ATTENTION! In order to make safe and optimal use of the NL-28, it is important to take note of and understand the contents of this manual. V. 1.0 ENG Jan2015 Manual NL-28 / mn_ENG_V1.0 original...
  • Page 4: Table Of Contents

    1. General description 1.1 Delivery 1.2 Conditions of warranty 2. Intended use 3. Technical specifications 3.1 Specifications of the NL-28 4. Overview of safety tips and warnings 4.1 Safety tips and warnings 5. Transport and storage 5.1 Transport 6. Operating instruction 6.1 Installation...
  • Page 5: Declaration Of Conformity

    Thermopatch NL-28, which this declaration refers to, is in accordance with the conditions of the following Directive(s): 2006/42/EG (Machinery directive) 2014/35/EG (EMC directive) The Netherlands, Almere, 01-04-2016 Jan Bausch, Director V. 1.0 ENG Jan2015 Manual NL-28 / mn_ENG_V1.0 original...
  • Page 6: General Description

    1. General description The NL-28 is a practical and universal heat seal press with a sliding and reversible sealing pad for optimal use. Textile labels, company emblems, repair patches, transfers, in short all Thermopatch materials for marking and repair are easily and permanently pressed on all types of fabric.
  • Page 7: Intended Use

    2. Intended use The NL-28 is a heat seal machine that is intended for the application of heat seal transfers but also repair patches, heat seal emblems and labels. In short, all Thermopatch marking and mending materials can be applied with the NL-28.
  • Page 8: Technical Specifications

    3. Technical specifications 3.1 Specifications of the NL-28 Power 2500 Watts Power supply 230 Volt 50/60 Hz Operating temperature 180 °C Temperature range 0-220 °C Press Time range 0-9 min. 30 sec. Thermoregulator accurate up to +/- 10% Adjustable pressure range 0-450 g/cm²...
  • Page 9: Overview Of Safety Tips And Warnings

    ATTENTION! Make sure you are informed about the contents of this manual before starting to work with the NL-28. This ensures an optimal and safe use of the machine. ATTENTION! Always turn the power off (unplug it) when you need to carry out maintenance work or when cleaning the machine.
  • Page 10: Transport And Storage

    5. Transport and storage 5.1 Transport When the machine needs to be moved, Thermopatch advises to use the original packaging. For carrying the press, ensure that the press is cold • and move the press by holding the two plates (top and bottom) at the same time (closed press).
  • Page 11: Operating Instruction

    (closed press). Remove the screw labelled « Transport security » before • opening the press. Plug the machine into the electrical mains (230 Volt • grounded / 50 - 60 Hertz). V. 1.0 ENG Jan2015 Manual NL-28 / mn_ENG_V1.0 original...
  • Page 12: Operating The

    2 seconds (see 6.5.3). Use the handle (See number (5) page 11) to slide the • lower plate forward and backward. V. 1.0 ENG Jan2015 Manual NL-28 / mn_ENG_V1.0 original...
  • Page 13: Using 'Dry' Mode (Optional)

    LED (1) control LED (2) control LED (3) Programmed Program cycles SAVE selection Stop cycle Parts Counter Time and Preheating Temperature setting Time and Temperature Time and Temperature DECREASE INCREASE V. 1.0 ENG Jan2015 Manual NL-28 / mn_ENG_V1.0 original...
  • Page 14: Press Time And Temperature Settings

    • the DECREASE key. Confirm the value by pressing again on the PREHEATING • key. If the value is 0 (default value), the preheating cycle will • not be performed. V. 1.0 ENG Jan2015 Manual NL-28 / mn_ENG_V1.0 original...
  • Page 15 The default value for the 3 programs Pr1 to Pr3 is : • 180° C. for the temperature 15 seconds for the pressing time 0 second for the preheating time V. 1.0 ENG Jan2015 Manual NL-28 / mn_ENG_V1.0 original...
  • Page 16 After 3 seconds, the screen returns to the normal display. 7. Error messages Message on the screen Due to Effect Temperature probe default Heating relay off Card probe default Heating relay off Keyboard connection alarm Relay off V. 1.0 ENG Jan2015 Manual NL-28 / mn_ENG_V1.0 original...
  • Page 17: Pressure Adjustment

    Turn the wheel on the top of the heating plate: clockwise to increase the pressure, • counter clockwise to decrease the pressure. • Tighten the nut back to lock and secure the pressure ad- justment wheel. V. 1.0 ENG Jan2015 Manual NL-28 / mn_ENG_V1.0 original...
  • Page 18: Assembly And Installation

    7. Assembly and installation 7.1 Installation Unpacking Remove the NL-28 from its packaging. • Place the machine on its operating location. • Before carrying the press, ensure that the press is cold • and move the press by holding the two plates (top and bottom) at the same time (closed press).
  • Page 19: Maintenance Instructions

    ATTENTION! Switch off the machine and disconnect from the electrical power • • Make sure the NL-28 has cooled down enough before starting maintenance or repairs. V. 1.0 ENG Jan2015 Manual NL-28 / mn_ENG_V1.0 original...
  • Page 20: Technical Annexes

    SPA33-002/A SILICONE RUBBER 400x500 mm SPA27-006 GAS SPRING SPA3X-004 ELECTROMAGNET 230V 7W SPA3X-003 Fuse 16 A SLOW SPA28-100 SET OF FOUR LOWER PLATENS SPA28-101 NOMEX PROTECTION COVER 40 X 50 CM V. 1.0 ENG Jan2015 Manual NL-28 / mn_ENG_V1.0 original...
  • Page 21: Trouble Shooting

    Ensure that the machine has cooled down before starting repairs or maintenance. The heating element can cause burns. All repairs must be performed by qualified staff. V. 1.0 ENG Jan2015 Manual NL-28 / mn_ENG_V1.0 original...
  • Page 22: Drawing 01

    Drawing 01 Clamping Handle Pressure Adjustement wheel Control Panel Electromagnet Heating platen Silicone rubber Sliding plate handle (5) Sliding plate 180° Reversable lower platen (6) Main switch Fuse V. 1.0 ENG Jan2015 Manual NL-28 / mn_ENG_V1.0 original...
  • Page 23 Drawing 02 Thermopatch B.V. Draaibrugweg 14, 1332 AD, Netherlands Electrical Wiring Diagram COMPLETE NL-28 V. 1.0 ENG Jan2015 Manual NL-28 / mn_ENG_V1.0 original...
  • Page 24: End Of Life

    - Dismantle the machine groups: steel parts / pneumatic components / electrical components - These can be separated and returned for recycling. ATTENTION! Always dispose according to current and locally applied guidelines for health and safety and disposal requirements. V. 1.0 ENG Jan2015 Manual NL-28 / mn_ENG_V1.0 original...
  • Page 25 F +1 315 445-8046 sales@thermopatch.com Thermopatch European Headquarters The Netherlands T +31 36 549 11 11 F +31 36 532 03 98 sales@thermopatch.nl Thermopatch Australia Pty Ltd Australia T +61 395325722 F +386 2 80 55 232 marktpatchaust@bigpond.com.au Thermopatch Canada Inc Canada...
