  • Page 1 Instruction Manual Code 1888...

  • Page 2: Part Description

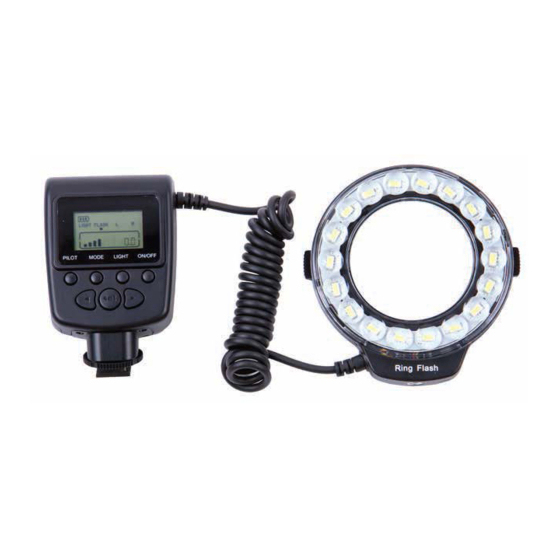

    Part Description Macro ring head Power control unit Connection cable Diffuser ring (clear, amber, blue and white are included) LED array Mounting ring locks Adapter ring Battery cover Hot shoe base 10. Locking wheel 11. Mounting foot with hot shoe contact 12.
  • Page 3 The Mode Indicator is shown across the middle of the LCD panel and is identified as: LIGHT FLASH A dot is displayed below one of the modes to show the RL100 current mode setting. LIGHT indicates Constant Light mode. FLASH indicates Flash mode.
  • Page 4 3. 4 diffusers are included with this kit. The transparent diffuser will give the most powerful and harshest light. The frosted white diffuser produces a soft light with less power. The amber diffuser matches the RL100’s light to a tungsten color temperature and creates a very warm effect. The blue diffuser creates a cool light which can be used as a special effect or to match the extreme color temperature often experienced during the ‘blue...
  • Page 5 Installing the RL100 Ring Flash on Your Camera The RL100 has two main parts – the ring flash head and the power control unit. To mount the power control unit to your camera: 1. Slide the mounting foot onto your camera’s hot shoe.
  • Page 6 Installing the Macro Ring Head on Your Lens This kit includes 49, 52, 55, 58, 62, 67, 72 and 77mm lens adapter rings. 1. Choose the adapter ring that matches the thread size on your lens. 2. Screw the adapter ring into the lens threads until snug. Be careful not to overtighten. 3.

  • Page 7: Operating The Unit

    Flash Mode The RL100 will start in Flash mode each time you turn the unit on. Be sure the hot shoe contact, located on the bottom of the mounting foot, lines up with the center contact of your camera’s hot shoe. Use the Output Power Adjustment buttons to increase or decrease the intensity of the light.

  • Page 8: Power Saving Features

    The LCD back-light will automatically turn off after 20 seconds of non use (use includes button pressing or flash operation.) The back-light will automatically turn on again when a button is pressed. The RL100 will enter a deep sleep mode after 30 minutes of inactivity. Press the SET button to wake it up. Specifications...
  • Page 9 ONE YEAR UNCONDITIONAL GUARANTEE If for any reason, this ProMaster product fails within ONE YEAR of the date of purchase, return this product to your ProMaster dealer and it will be exchanged for you at no charge. ProMaster products are guaranteed for ONE FULL YEAR against defects in workmanship and materials.
