Webb WEBV26 Original Instructions Manual

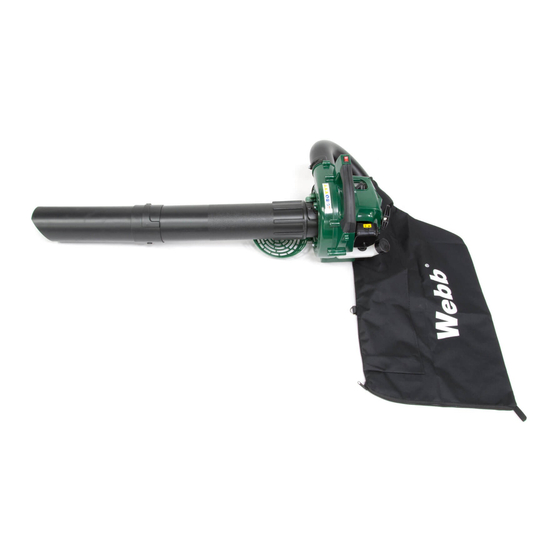

26cc petrol garden blower & vacuum

Hide thumbs Also See for WEBV26:

Operator's manual (28 pages)

Operators manual & parts lists (19 pages)

Table Of Contents

Quick Links

26cc Petrol Garden Blower

& Vacuum

WEBV26

193867003

en - Original Instructions

Sales & Support: 01793 333212

Before use please read & understand this manual; paying particular attention to the safety instructions.

The manufacturer reserves the right to change the product speciﬁ cation and livery according to continues product improvements.

Table of Contents

Need help?

Do you have a question about the WEBV26 and is the answer not in the manual?

Questions and answers

Summary of Contents for Webb WEBV26

Page 1 26cc Petrol Garden Blower & Vacuum WEBV26 193867003 en - Original Instructions Sales & Support: 01793 333212 Before use please read & understand this manual; paying particular attention to the safety instructions. The manufacturer reserves the right to change the product speciﬁ cation and livery according to continues product improvements.
Page 2 Instruction Manual 17 Jan 2019 Copyright Notice Copyright © Handy Distribution Permission is granted to reproduce this publication for personal & educational use only. Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Handy Distribution.
Page 3: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS SPECIFICATIONS COMPONENTS ASSEMBLY OPERATION MAINTENANCE, CLEANING & STORAGE TROUBLE SHOOTING PARTS DIAGRAM & LIST DECLARATION OF CONFORMITY WARRANTY...
Page 4: Safety Instructions
Instruction Manual SAFETY INSTRUCTIONS Read and understand the owner’s manual and labels affixed to the machine. Learn its application and limitations as well as the specific potential hazards. Retain these instructions for future reference. The operator is responsible for following the warnings & instructions in this manual and on the product. Read &...
Page 5 STAY ALERT Do not operate the machine while under the influence of drugs, alcohol, or any medication that could affect your ability to use it properly. Do not use this machine when you are tired or distracted from the job at hand. Be aware of what you are doing at all times.
Page 6: Specifications
Instruction Manual SPECIFICATIONS Model WEBV26 Product Number 193867003 Engine (cc) Idle Speed (r/min) 3000+200 Fuel Tank Capacity (Litre) Fuel Ratio (Unleaded Petrol:2 Stroke 40:1 Synthetic or Semi Synthetic Oil) Weight (kgs) N.W 4.8 - G.W 7.05 The manufacturer reserves the right to change the product specification and livery according to continued product improvements.
Page 7: Assembly
ASSEMBLY Remove the machine and contents from the carton. Be sure the carton is empty before discarding. If you require any assistance with regards to the contents of the lawnmower contact us: Tel: 01793 333212 Email: customerservice@webblawnmowers.co.uk Hours: Monday to Friday 8.30am – 5.30pm (excl. Bank Holidays) VACUUM ASSEMBLY 1.
Page 8: Operation
Instruction Manual OPERATION DANGER DANGER ZONE - WITHIN 15 METRES OF USER RISK ZONE - GREATER THAN 15 METRES OF USER All model Blowers can throw small stones, metal or small objects as well as material. Do not allow anyone to enter the operating DANGER ZONE with you.
Page 9 FUEL & OIL MIXTURE Fuel & its vapors are very flammable. Do not use or fuel the machine near a flame, sparks or while smoking. Allow the engine to cool for more than 2 minutes, before re-fueling. Never fuel the machine with the engine running.
Page 10 Instruction Manual ENGINE STARTING & STOPPING PROCEDURE STARTING A COLD ENGINE 1. Place the machine onto a flat, firm surface. 2. Keep the machine clear of any surrounding objects 3. Move the stop switch to "START" position 4. Give a gentle push on the primer pump repeatedly (7-10 times) until fuel comes into the primer pump. 5.
Page 11: Maintenance, Cleaning & Storage
MAINTENANCE, CLEANING & STORAGE WARNING Improper maintenance & storage of the machine may void your warranty. Keep the machine clean for better and safer performance. MAINTENANCE • Before each use, check all nuts & bolts to be sure they are sufficiently tightened. •...
Page 12: Trouble Shooting
Instruction Manual STORAGE • For years of trouble free service, make sure the machine is clean and dry before storing. • Before storing, clean the machine thoroughly as indicated above. • Store indoors or in a safe, locked protected area during severe weather and winter months. •...
Page 13 Notes...
Page 14 PARTS DIAGRAM - WEBV26 ENGINE (193867003)
Page 15 PARTS LIST - WEBV26 ENGINE (193867003) Item Part No Description Item Part No Description Champion Spark WE03130010013 WE03010010069 Bolt M5x30 Plug RCJ6Y WE03010010062 Bolt M5x20 WE02050030260 Flywheel Insulating WE70070130011 Cylinder WE02070010082 Gasket WE02070010020 Cylinder Gasket WE02110030036 Insulator WE02020020003 Piston Ring...
Page 16 PARTS DIAGRAM - WEBV26 MACHINE (193867003)
Page 17 PARTS LIST - WEBV26 MACHINE (193867003) Item Part No. Description Item Part No. Description WE70050010068 Tube A WE70030160048 Upper Handle WE70050010069 Tube B WE03010040068 Screw ST4.2x12 WE03010040048 Screw M5x16 WE03010040025 Screw ST4.2x13 WE03020020028 Screw M5x16 WE02050050141 Stop Wire WE70030030284 Connect Cover...
Page 18 EC DECLARATION OF CONFORMITY We Handy Distribution Ltd - SN3 5HY (Importer) declare that the product: Designation: 26cc Petrol Blower & Vacuum Model(s): WEBV26 Product No. 193867003 Type/Serial No. As per rating label on machine Complies with the following directives:...
Page 19 Notes...
Page 20 Instruction Manual Notes...
Page 21 Notes...
Page 22 Instruction Manual This Service Book is provided with your Webb, to help you look after your purchase to our recommendations and enable you to take advantage of the conditional manufacturer domestic warranty*. Present this service book to your authorised Webb repair dealer, whenever a service or a warranty appraisal is required.
Page 23 Webb (excludes Electric Handheld) & Webb Pro, 2 year conditional warranty from the original date of sale to the ﬁ rst domestic user. Webb Electric Handheld & Dynamic, Legacy & Heritage 1 year warranty from the original date of sale to the ﬁ rst domestic user.
Page 24: Warranty
It is the owner’s responsibility to ensure that their Webb machine is maintained at speciﬁ c intervals. Any approved Webb service dealer can undertake a service, which are specialised in our products and will be aware of your particular machine and any technical updates which will save valuable time &...
Page 25 SERVICE BOOK Your servicing Webb approved dealer will stamp & date the below relevant sections, when the correct service actions have been completed. PLEASE ENSURE THE SERVICE BOOK IS AVAILABLE FOR THE DEALER, DURING SERVICE WORK. 1st Service This must be stamped by an approved service dealer to qualify for a free second year warranty.
Page 26 Service Record Instruction Manual 48 Months 60 Months Date Date 72 Months 84 Months Date Date 96 Months 108 Months Date Date 120 Months 132 Months Date Date...
Page 27 Email From time to time Webb, its associated companies, authorised dealers or third parties working on our behalf may wish to contact you regarding our products, services, oﬀ ers or just opinions, which may be used for marketing, research or analysis purposes.
Page 28 Webb Lawnmowers Murdock Road Dorcan Swindon Wiltshire SN3 5HY...
