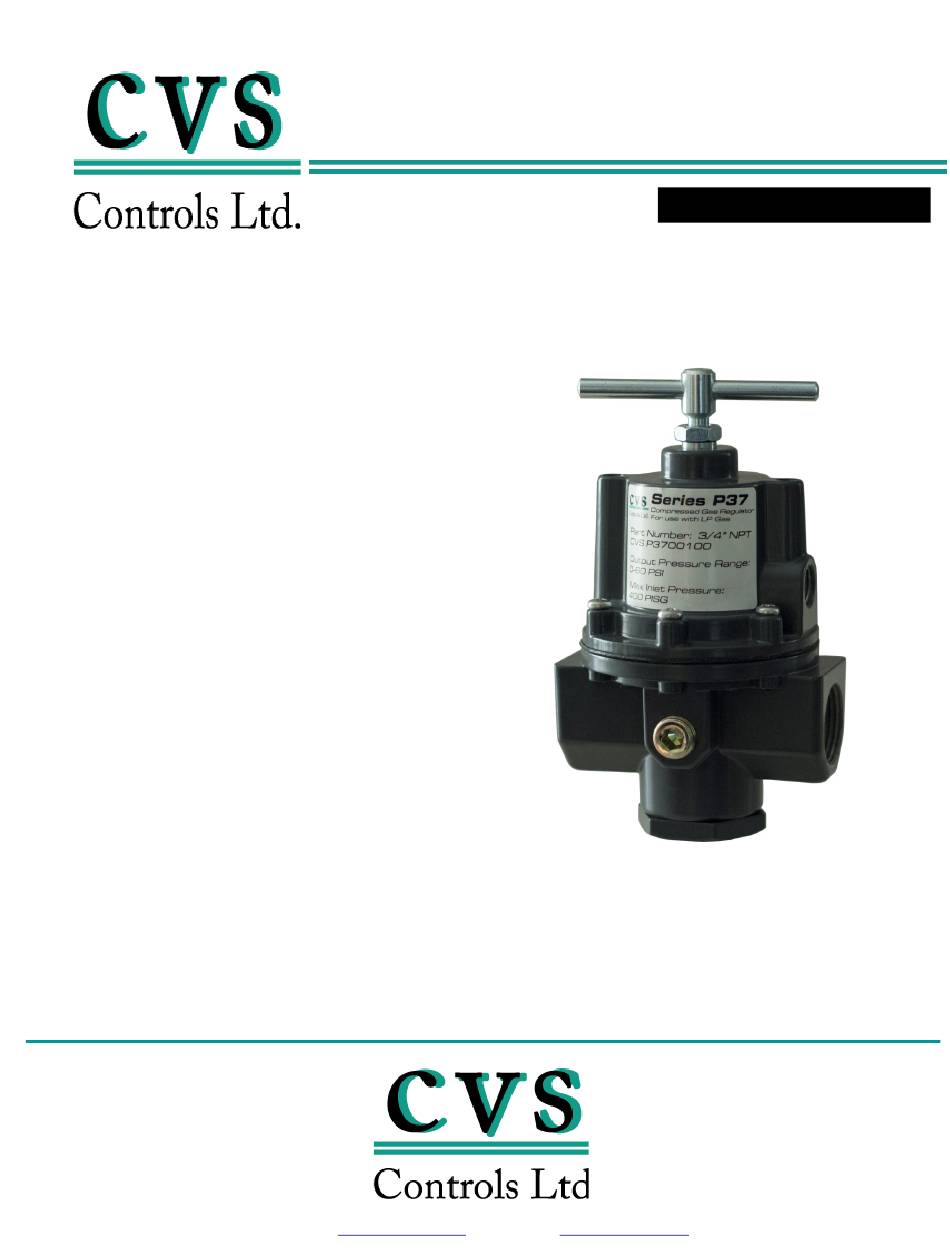

CVS P37 LP Gas
Reducing Regulator

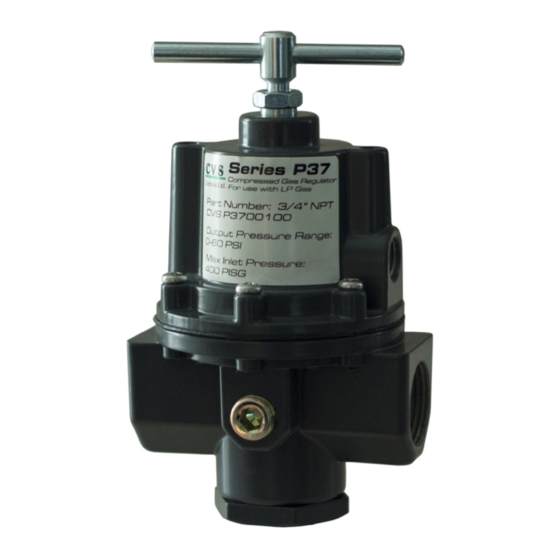

The CVS Controls P37 Regulator is a
non-relieving, pressure reducing
regulator suitable for use in LP gas
applications (Natural Gas and
Propane). As well as standard
compressed air applications.
Features:
The balanced pintle design of the CVS
P37 Regulator eliminates unwanted
changes in the outlet pressure, due to
inlet pressure variances.
Typical applications include:
-Compressed Air
-Actuators
-Valve Positioning
-Pneumatic Pressure Controllers
-Fuel Gas
Head Office
3900 101 Street
Edmonton, Alberta
T6E 0A5
Canada
Office: (780) 437-3055
Fax: (780) 436-5461
Website:
www.cvs-controls.com
INSTRUCTION MANUAL
CVS P37 LP Gas Regulator
Email:
info@cvs-controls.com
Calgary Sales Office
3516 114 Avenue SE
Calgary, Alberta
T2Z 3V6
Canada
Office: (403) 250-1416
Fax: (403) 291-9487

Advertisement

loading
Need help?

Need help?

Do you have a question about the P37 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CVS Controls P37

  • Page 1 INSTRUCTION MANUAL CVS P37 LP Gas Reducing Regulator The CVS Controls P37 Regulator is a non-relieving, pressure reducing regulator suitable for use in LP gas applications (Natural Gas and Propane). As well as standard compressed air applications. Features: The balanced pintle design of the CVS...
  • Page 2: Installation

    Ensure proper safety procedures are adhered to during installation and maintenance. It is recommended that the CVS P37 Regulator be installed as close as possible to the supply instrument. The CVS P37 may be installed at any angle without affecting performance.
  • Page 3: Repair And Maintenance

    Note: The CVS P37 Regulator is a non-relieving regulator. The use of a relief valve is recommended in the installation. Additionally the P37 cannot exhaust excess pressure at the regulator assembly. It may be require to cycle downstream flow in order to achieve an accurate output pressure.
  • Page 4 Dimensional Data: Inches P a g e...
  • Page 5 CVS P37 Assembly: Description Description Item Part Number Item Part Number CVS P3700001 Adjusting Screw Assembly CVS P3700011 Pintle Spring Spring Case Assembly Bottom Plug CVS P3700002 CVS P3700012 CVS P3700003 Upper Seat Spring CVS P3700013 o-ring, #025 CVS P3700004...
  • Page 6 Notes: P a g e...
  • Page 7 Notes: CVS Controls Ltd. strives for the highest levels of quality and accuracy. The information included in this publication is presented for informational purposes only. CVS Controls Ltd. reserves the right to modify or change, and improve design, process, and specifications without written notice.
  • Page 8 Calgary Sales Office Head Office 3516 114 Avenue SE 3900 101 Street Calgary, Alberta Edmonton, Alberta T2Z 3V6 T6E 0A5 Canada Canada Office: (403) 250-1416 Office: (780) 437-3055 Fax: (403) 291-9487 Fax: (780) 436 5461 Website: www.cvs-controls.com Email: info@cvs-controls.com June 2014 P a g e...
