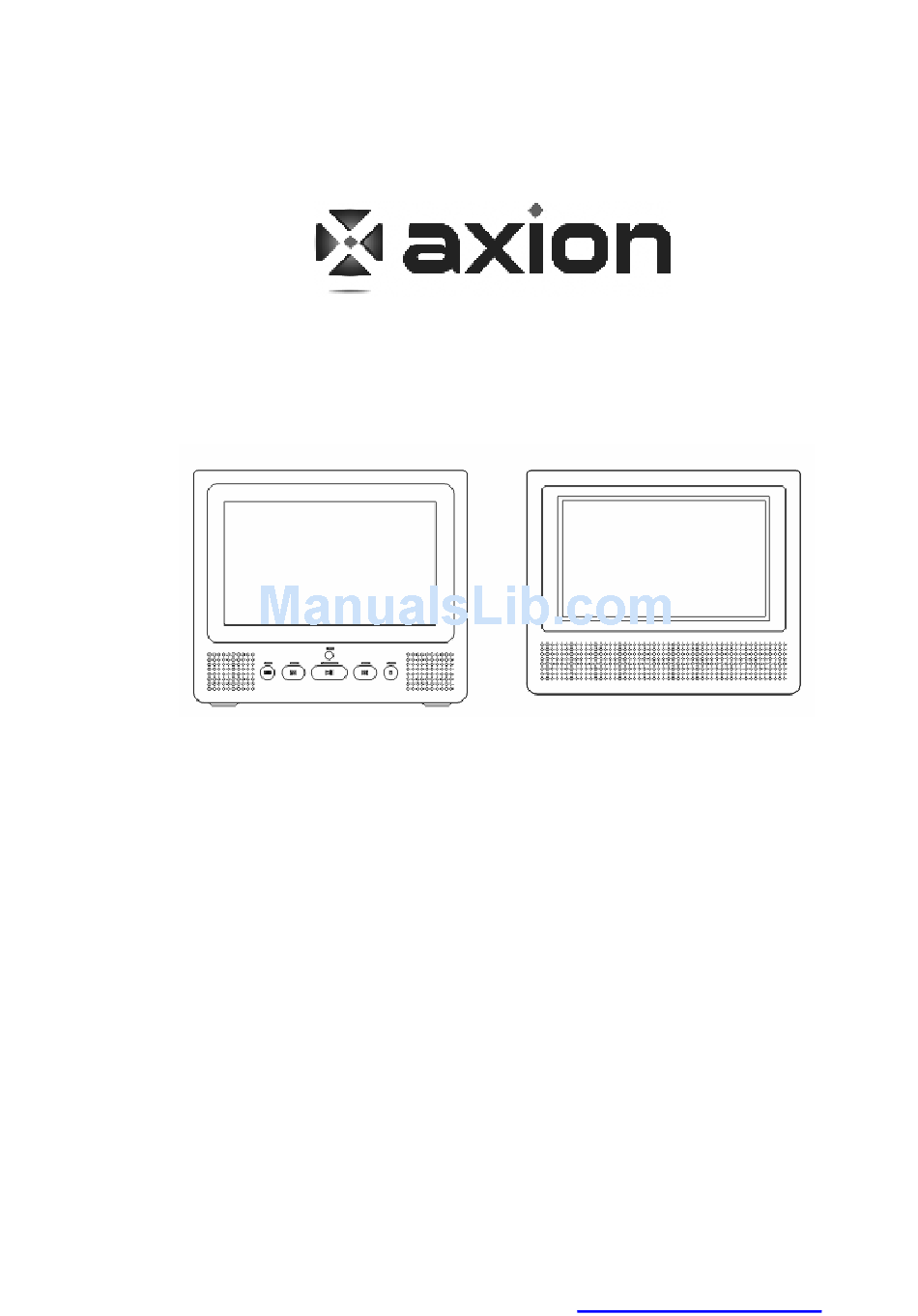

- Page 1 7" Dual Screen Portable DVD Player AXN-6979 PDF created with pdfFactory Pro trial version www.pdffactory.com...
-
Page 2: Table Of Contents
Content A. Cautions and Warning...3 B. Unit View...4 C. Monitor View..7 D. Powering and Installation...8 E. Remote Control View...10 F. Setup...13 G. Connecting to Headphones...17 H. Specifications...18 I. Trouble Shooting...18 What’ s included: 1 x 7" LCD Screen with DVD Player 1 x 7"... -
Page 3: Cautions And Warning
A. Cautions and Warnings 1. Placement To prevent fire or electric shock, do not expose this appliance to rain or moisture. Do not place the set on an unstable cart, stand, tripod, bracket or table to prevent it from falling. Keep the unit away from strong magnets, heat sources, direct sunlight, excessive dust. -
Page 4: Unit View
B. Unit View 1. Front 1). Wide Button: Switches the LCD screen between the 16:9 and 4:3 screen displays. 2). PREV. Button: Skip to the previous titles, chapters, or tracks. NOTE: Press this button for 3 seconds to scan backward at 2, 4, 3). - Page 5 3. Right 1). Power On/Off Switch Turns the player on or off. 2). Column for Binding 3). AV In/Out Switch Switches the A/V jack between input and output. 4). A/V Jack Connects to an external audio/video source (A/V in) or player (A/V out) like a monitor or amplifier.
- Page 6 4. Left 1). Column for Binding 2). Headphone Jack 1 Connect a set of headphones here. Disable the internal speakers. 3). Headphone Jack 2 Connect a set of headphones here. Disable the internal speakers. 5. Top 1). Open Switch: Opens the disc tray. PDF created with pdfFactory Pro trial version www.pdffactory.com...
-
Page 7: Monitor View
C. Monitor View LEFT RIGHT PDF created with pdfFactory Pro trial version 1). Strap Connector: Attach one end of a carrying strap here. 2). Power On/Off Switch Turns the player on or off. 3). 16:9 4:3 Button Switches the LCD screen between the 16:9 and 4:3 screen displays. -
Page 8: Powering And Installation
D. Powering and Installation 1. Powering the system indoors Plug one end of the AC to DC adapter into the DC jack on the side of the main unit, then plug the other end into the 100~240V AC power outlet. 2. - Page 9 4. Positing the DVD Player/Monitor on Headrest Note: Install the DVD player/Monitor according to the above steps PDF created with pdfFactory Pro trial version Step 1 Step 2 www.pdffactory.com...
-
Page 10: Remote Control View
E. Remote Control View 1) Display Display information about the DVD, such as title, chapter number, track number and time. 2) Setup Enter or exit the setup menu. 3) Fast Forward Scan forward at 2,4,8,16,or 32 times normal playback speed. 4) Rewind Scan backward at 2,4,8,16,or 32 times normal playback speed. - Page 11 5) Skip+ Move forward to previous title or chapter. 6) Skip- Move back to the next title or chapter. 7) Stop Press once to stop playback. The player remembers where you stopped playback and you can restart playing at this point. Press twice to stop playback.
- Page 12 16) Menu Press once to show the DVD root menu. Press twice to show title menu. 17) Zoom Enlarge the image 2, 3, or 4 times the original size. 18) Return Press once to return to the previous menu. 19) Slow Play forward or backward at 1/2, 1/4,1/8 and 1/16 times speed.
-
Page 13: Setup
F. Setup 1. General Setup Page 1) Press ‘SETUP’ to display the Main screen of the Setup Menu on the screen and “General Setup Page” appears. At the same time, “ ” is highlighted. Press ‘SETUP’ again to exit the Setup Menu and the unit will resume it’s last playback mode. - Page 14 d) Screen Saver *On: Enables screen saver NOTE: The DVD player will enter the Screen Saver mode after approximately five minutes if the same image remains on the screen. *Off: Disables screen saver (off) e) Last Memory *On: The unit will return to the last position on the disc. *Off: The unit will not return to the last position on the disc.
- Page 15 3. Password In Setup menu, Press the Page” and page. Press ENTER twice to enter the Password Change Page. Input the Old Password or the Default Password, the New Password, and Confirmed the New Password. Press ENTER to confirm the change. Note: The default password is 3308.
- Page 16 d) Parental Select ‘Parental’ by pressing the And Press desire using rating levels. These are listed from the lowest level (1 Kid Safe) to the highest level (8 Adult). Press ENTER and input 4 digit password, then press ENTER again to confirm the parental level setting. 1 KID SAFE 3 PG 4 PG-13...
-
Page 17: Connecting To Headphones
G. Connecting to Headphone Wired headphone may be used with the DVD or Monitor, Simply plug in the headset to either Headphone 1Jack or 2 jack on the Right DVD or Left Monitor. Monitor Plugging into Headphone jack 1/2 disable the internal speakers. PDF created with pdfFactory Pro trial version www.pdffactory.com... -
Page 18: Specifications
H. Specifications DVD Player Compatible DISC: Signal system: Panel size: Audio S/N: Dynamic range : Power source: Operating temperature: Weight : Dimensions (W x D x H): Single Monitor Colour System: Screen Size: Power Supply: Operating Temperature: Operating Humidity: Storage Temperature: Dimensions (W x D x H): Weight: Design and Specifications are subject to change for... -
Page 19: Trouble Shooting
Trouble Shooting The icon ( The feature or action cannot be completed at this time because: 1. The disc’s software restricts it. 2. The disc’s software doesn’t support the feature (e.g., angles) 3. The feature is not available at the moment. 4. - Page 20 What brand(s) can be covered under the warranty: Any “ACTION” and “AXION” branded products sold by America Action, Inc. Whom the warranty protects: The warranty is valid only for the original purchaser within the continental of USA.
- Page 21 How to get service: 1. For additional information on obtaining an extended warranty service, contact your AXN dealer or AXN’s Customer Service Department by e-mailing to customerservice@axionzone.com To obtain warranty service, you will be required to do one of the following: fill out an online RMA Request Form, print the form, fill it out and fax it to 1-909-869-5545, or call AXN’s Customer Service number at 1-909-869-6600.
- Page 22 INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BYAPPLICABLE LAW,ANYIMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS DURATION TO THE DURATION OF THIS WARRANTY. Some states do not allow the exclusion or limitation of incidental or consequential damages, or allow limitations on how long an implied warranty lasts, so the above limitations or exclusion may not apply to you.
