Axion AXN-6092 User Manual

Portable 9" lcd monitor and dvd player
Hide thumbs

Advertisement

Quick Links

Portable 9" LCD Monitor and DVD Player
AXN-6092
Please read this user's guide before installing,
setting up,or using your new product.

Advertisement

loading
Need help?

Need help?

Do you have a question about the AXN-6092 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Axion AXN-6092

Summary of Contents for Axion AXN-6092

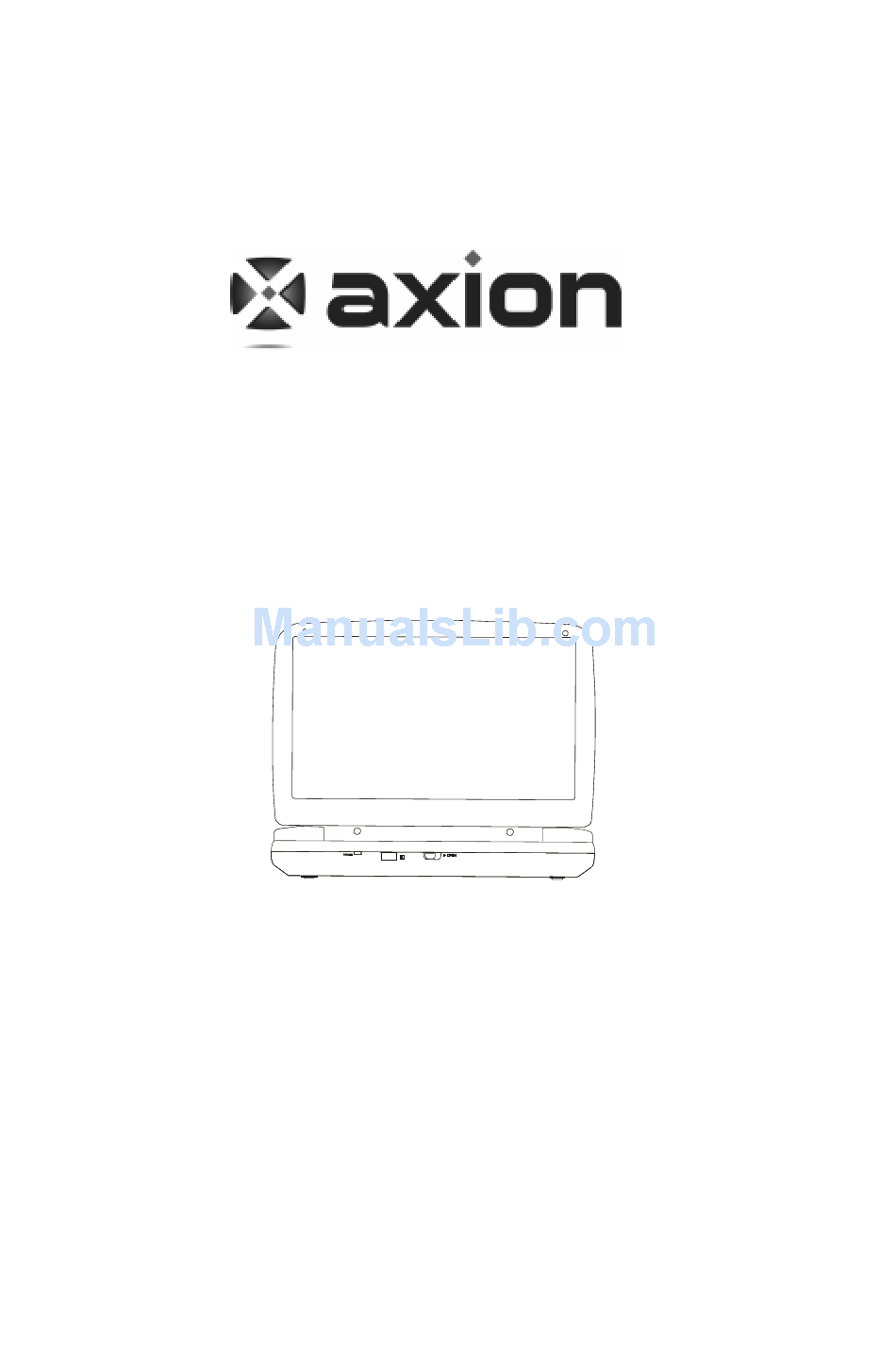

  • Page 1 Portable 9" LCD Monitor and DVD Player AXN-6092 Please read this user’s guide before installing, setting up,or using your new product.

  • Page 2: Table Of Contents

    A.Cautions and Warning B.Unit View C. Powering and Installation D. Remote Control View E. Setup F. Specifications G. Trouble Shooting What’s included: 1 x AC to DC Adapter 1 x Remote Control with battery (CR2025) 1 x Instruction Manual 1x AV Cable 1x Car cigarette lighter adapter Content...

  • Page 3: A.cautions And Warning

    A. Cautions and Warnings 1. Placement To prevent fire or electric shock, do not expose this appliance to rain or moisture. Do not place the set on an unstable cart, stand, tripod, bracket or table to prevent it from falling. Keep the unit away from strong magnets, heat sources, direct sunlight, excessive dust.
  • Page 4 4.Disassemble Do not attempt to disassemble the cabinet. There is a risk of electric shock and/or exposure to Laser Radiation. Contact quali- fied service personnel if your system needs repair. 5. Cleaning Unit When cleaning, make sure the system is unplugged from the power source.

  • Page 5: B.unit View

    B. Unit View 1. Front 1) Power LED:Lights green when the player is on. 2) Remote Sensor:Receives signals from remote control. 3) Open Switch:Open the disc tray. 2. Left 1) DC Input Jack: Connects to the AC adapter or Car cigarette lighter adapter.
  • Page 6 3. DVD 1)LCD screen shut off switch: Turns off the LCD screen. 2)Next Button:Skip to the next titles,chapters,or tracks. 3)Previous Button:Skip to the previous titles,chapters,or tracks. 4)Stop Button:Stop the playback of the DVD or CD. 5)Menu Button: Acesses the DVD menu and the Title menu.Pressing for more than 3 seconds to return to the title menu.

  • Page 7: Powering And Installation

    C. Powering and Installation 1. Powering the system indoors Plug one end of the AC to DC adapter into the DC jack on the side of the main unit, then plug the other end into the 100~240V AC power outlet. 2.

  • Page 8: Remote Control View

    D. Remote Control View NOTE: B efore usi ng the re mote con trol f or the first time, pull out the plastic s heet from the bott om of t he re mote contro l. 1) Setup Press to access the SETUP menu screen. 2) Up Press to navigate up on a menu.
  • Page 9 8) Number keys Press to select an item or setting. 9) Display Press to display information. 10) Zoom Press to enlarge the image to 2,3,or 4 times the original size. 11) Subtitle * Select the subtitle language of the disc. 12) Next Skip to the next titles,chapters,or tracks.

  • Page 10: Setup

    E. Setup 1. General Setup Page 1) Press ‘SETUP’ to display the Main screen of the Setup Menu on the screen and “General Setup Page” appears. At the same time, “ highlighted. Press ‘SETUP’ again to exit the Setup Menu and the unit will resume it’s last playback mode.
  • Page 11 d). Screen Saver *On: Enables screen saver *NOTE: The DVD player will enter the Screen Saver mode after approxi- mately five minutes if the same image remains on the screen. *Off: Disables screen saver (off) e). Last Memory *On: The unit will return to the last position on the disc. *Off: The unit will not return to the last position on the disc.
  • Page 12 3. Password In Setup menu, Press the button to select “Password Setup Page” and is highlighted. Press ENTER to enter the password page. Press ENTER twice to enter the Password Change Page. Input the Old Password or the Default Password, the New Password, and Confirmed the New Password.
  • Page 13 d) Parental Select ‘Parental’ by pressing the And Press to enter the sub menu. Select the parental level you desire using button for discs with lock-out function or multiple rating levels. These are listed from the lowest level (1 Kid Safe) to the highest level (8 Adult).

  • Page 14: Specifications

    F. Specifications Compatible DISC: Signal system: Panel size: Audio S/N: Dynamic range : Power source: Operating temperature: Dimensions (W x D x H): G. Trouble Shooting No sound or distorted sound? Make sure your DVD is connected properly.Make sure all cables are securely inserted into the appropriate jacks.
  • Page 15 What brand(s) can be covered under the warranty: Any “ACTION” and “AXION” branded products sold by America Action, Inc. Whom the warranty protects: The warranty is valid only for the original purchaser within the continental of USA.
  • Page 16 How to get service: 1. For additional information on obtaining an extended warranty service, contact your AXN dealer or AXN’s Customer Service Department by e-mailing to customerservice@axionzone.com To obtain warranty service, you will be required to do one of the following: fill out an online RMA Request Form, print the form, fill it out and fax it to 1-909-869-5545, or call AXN’s Customer Service number at 1-909-869-6600.
  • Page 17 INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BYAPPLICABLE LAW,ANYIMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS DURATION TO THE DURATION OF THIS WARRANTY. Some states do not allow the exclusion or limitation of incidental or consequential damages, or allow limitations on how long an implied warranty lasts, so the above limitations or exclusion may not apply to you.
