Wireless Six-Channel Energy Meter
IoTeMtr Models #3017, 3017W and 3017L
About this Product
Use the IoTeMtr to measure the characteristics of two 3-phase cir-
cuits or six single or split phase circuits, including voltage, frequency,
current, power and active/reactive energy imported or exported.
The device interfaces wirelessly within IoT/Home Automation net-
works where it can be controlled and monitored by automation
hubs or cloud services.
In order to measure energy, the device requires voltage and current
inputs plus the supply voltage to power the unit itself. This guide
shows how to connect the input voltage and current measurement
transformers (CTs).
Install with the tips and suggestions below to get the benefits of the Internet of Things through your automation
controller.
Electrical Installation
For indoor installation only as supplied. When installing outdoors, it is imperative to use a suitable enclo-
sure, and to observe all water-tight precautions to ensure the life and safety of the device.
When wiring the AC voltage input connector, use a suitable breaker and beware of the dangerous voltages
present. Installation recommended to be done by trained personnel only.

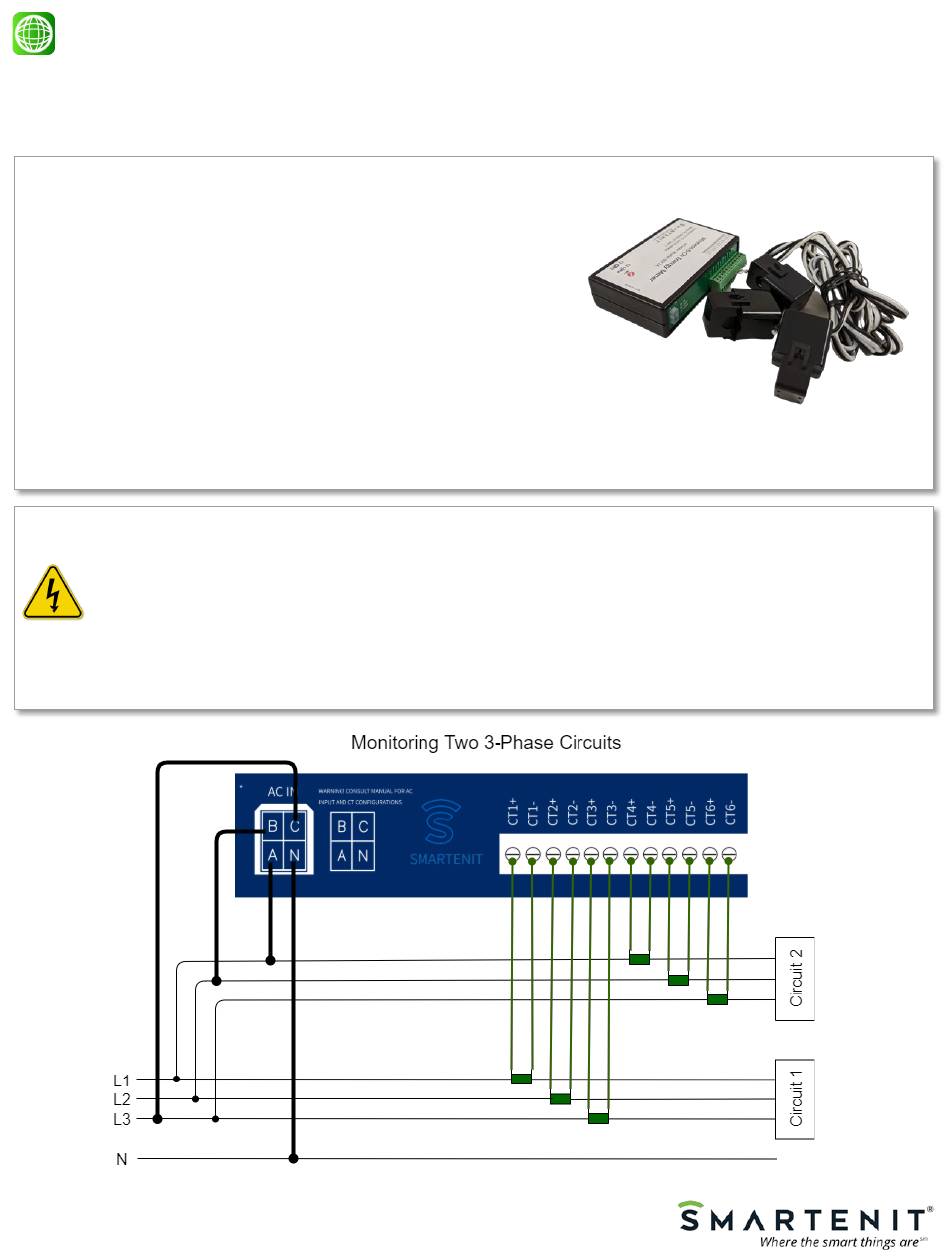

Follow the diagrams below to connect the device to the electrical panel based on the type of circuits to be moni-
tored.
© 2020 Compacta International, Ltd.—Rev 0.1 05/28/2020
IoTeMtr and Smartenit are trademarks of Compacta International, Ltd
Zigbee is a registered trademark of the zigbee alliance
Quick Start Guide
The 3 CTs for
each circuit MUST
be the same cur-
rent rating (e.g.
30A, 50A, 100A)
