Quick Links
Technical Support
(949) 429-3303
Smartenit.com

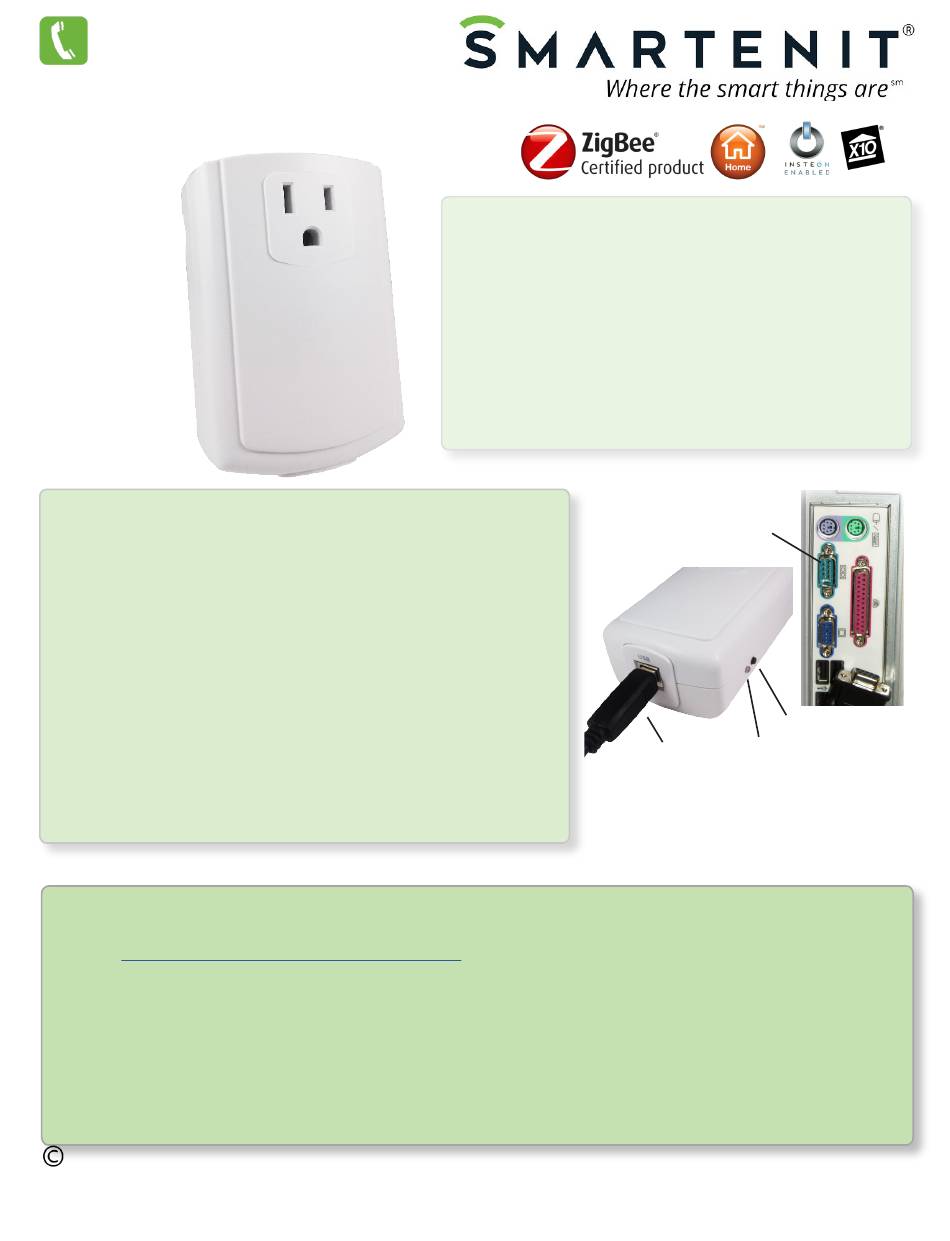

Quick Start Guide - ZBPLM
Home Automation Interface
Now with
external antenna* for
increased range
(not shown)
* Serial version only
Installation
Note: ZBPLM must be installed indoors
1. Connect ZBPLM to Computer or Gateway
•
Using cable provided (RJ-45 to DB9 or USB), connect
ZBPLM to computer/gateway. (If USB version, connect
USB cable after completing step 3 below)
2. Connect external antenna and point upwards *
3. Connect ZBPLM to 120V AC power
• Press and hold the Program Button while plugging into power to
ensure ZBPLM is reset to factory defaults.
• After a couple seconds, the LED will begin to blink, indicating
that ZBPLM is reset.
* Serial version only
Interface Setup
1. Using with Serial API:
•
This method is typically for developers. ZBPLM implements the Smartenit Serial API, which is documented here:
http://docs.smartenit.com/software/zbpcid_api.pdf
2. Using with Smartenit Gateways/Hubs:
•
Follow installation process mentioned above and then attach the other end of USB cable to Gateway/Hub
3. Using with IoT8-Z as an Insteon bridge. Follow steps below and then refer to the IoT8-Z quick start guide
•
Factory reset ZBPLM: Press button while reconnecting to power and continue to hold button for 4 secs
•
Start Network: Tap the set button 11 times in quick succession. LED should stop blinking and stay solid.
•
Discover zigbee device: Press and hold the Set button for 7 secs, LED should start to blink slowly
2014 Compacta International, Ltd. - Rev.
ZBPLM
and Smartenit are trademarks of Compacta International, Ltd.
ZigBee is a registered trademark of the ZigBee Alliance, INSTEON is a registered trademark of SmartLabs, Inc.,
and X10 is a registered trademark of X10.
TM
Product Brief
2/2019
ZBPLM is a multi-protocol interface that allows communication
from a computer or any device to control and monitor ZigBee,
INSTEON and X10 home automation devices.
The ZBPLM also enables the setup and interoperability
between ZigBee Home Automation (HA) devices without the
requirement of a computer.
With the seamless integration of these three leading home and
building automation protocols, the limitations of what you can
accomplish start to disappear!
USB Port
DB9 Serial Port
Program Button
Status LED
Advertisement
Related Manuals for Smartenit ZBPLM
Summary of Contents for Smartenit ZBPLM
- Page 1 3. Using with IoT8-Z as an Insteon bridge. Follow steps below and then refer to the IoT8-Z quick start guide • Factory reset ZBPLM: Press button while reconnecting to power and continue to hold button for 4 secs • Start Network: Tap the set button 11 times in quick succession. LED should stop blinking and stay solid.
- Page 2 - 1 stop bit ID Numbers The INSTEON ID for your ZBPLM is located on the back of the unit. It will be six digits long separated by periods. (Example - 05.BE.2F ) The MAC ID for your ZBPLM is also located on the back of the unit. It will be 16 digits long.
