Summary of Contents for RCP ADF-B38A

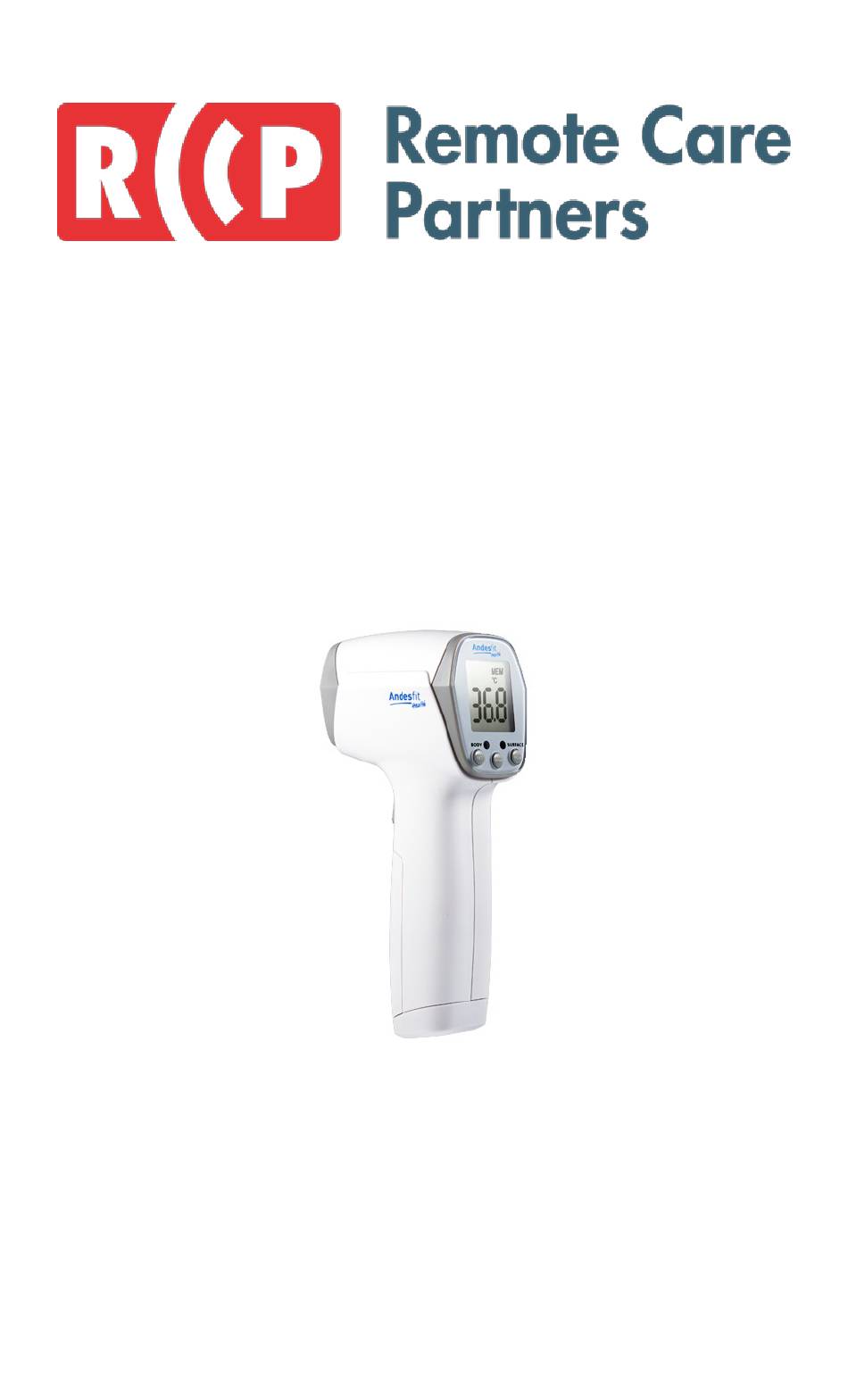

- Page 1 Non-contact Thermometer Model # ADF-B38A...
-
Page 2: Table Of Contents
Non-Contact Thermometer TABLE OF CONTENTS INTRODUCTION ............... 3 NOTES ON SAFETY ............4 Handling batteries properly ........4 QUICK START ..............5 FEATURES ................. 7 HOW IT WORKS ..............7 PRODUCT OVERVIEW............8 SETTINGS ................9 TAKING A MEASUREMENT ..........10 Notes on Taking A Measurement ...... -
Page 3: Introduction
Model # ADF-B38A INSTRUCTION MANUAL INTRODUCTION This Non-Contact Thermometer is provided to by Remote Care Partners (RCP), for use exclusively with the health monitoring program from your provider. Please read this manual carefully and keep it handy for future reference. -
Page 4: Notes On Safety
Non-Contact Thermometer NOTES ON SAFETY Please read this section carefully to familiarize yourself with the features and operations before using the unit. Do not drop the unit. Do not immerse the unit in water. Keep the unit out of reach of children. Avoid touching the lens with your fingers. - Page 5 Non-Contact Thermometer NOTES FOR USING THIS THERMOMETER • Always make sure the thermometer is in BODY mode before taking a measurement. The light next to the word BODY should be lit to indicate it is in BODY MODE. If the light next to the word SURFACE is lit, press the "MODE"...
-
Page 6: Quick Start
The temperature will display in the LCD Viewing window. The thermometer will turn off automatically in 1 minute. The reading will automatically be transferred to the RCP SmartHub and then sent to your provider. V1.1 REMOTE CARE PARTNERS PAGE 6... -
Page 7: Features
Non-Contact Thermometer FEATURES 1. Measurement range: Body: 90°~108°F / 32°~42.2°C Surface: 50°~140°F / 10°~60°C 2. Free to set alarm temperature. 3. Non-contact measurement avoids cross- infection. 4. Memory for 50 readings. 5. Auto power off. 6. Unit of Measure: °F/°C. 7. -
Page 8: Product Overview
Non-Contact Thermometer PRODUCT OVERVIEW V1.1 REMOTE CARE PARTNERS PAGE 8... -
Page 9: Settings
Non-Contact Thermometer SETTINGS 1. Turn on the thermometer by pressing the “SET” Key for 4 seconds to enter the set-up mode. The LCD viewing window will display: F-00 and alarm temperature value. Modify the alarm temperature by pressing the “MODE” or “MEM” keys. 2. -
Page 10: Taking A Measurement
The temperature will display in the LCD Viewing window. The thermometer will turn off automatically in 1 minute. The reading will automatically be transferred to the RCP SmartHub and then sent to your provider. V1.1 REMOTE CARE PARTNERS PAGE 10... -
Page 11: Notes On Taking A Measurement
Non-Contact Thermometer Notes on Taking A Measurement To avoid inaccurate readings, please follow these instructions. • Only use this device in temperature ranges of 50°F-104°F. • Do not use in bright, sunny environments. • Take 3 measurements to confirm the results. •... -
Page 12: Replacing The Batteries
Non-Contact Thermometer REPLACING THE BATTERIES New batteries were installed in your device before shipping. Unless instructed by a support person, skip this section This product uses 2 AA batteries. When the battery symbol flashes in the display window, replace both batteries. 1. -
Page 13: Cleaning
Non-Contact Thermometer CLEANING Power off the instrument and remove the batteries before cleaning. Ensure that the appearance of the instrument is neat, dust-free, and dirt-free. Clean the outer surface of the instrument (including the LED screen) with rubbing alcohol and a dry soft cloth. 1. -
Page 14: Display Messages
Non-Contact Thermometer DISPLAY MESSAGES Display Situation Solution message Ambient Place the thermometer in 50°F – 140°F temperature is environment for 30 minutes. out of operating range (50°F- Sensor error Please contact customer service. Memory error Please contact customer service. Temperature Check the measured object and take a new measured is higher measure. -
Page 15: Technical Specification
Non-Contact Thermometer TECHNICAL SPECIFICATION Item Specification Measuring type Infrared measuring Measuring mode Surface/body temperature Measuring distance 1~5cm Measuring Surrounding Accuracy Accuracy 32~42.2 16~35 ±0.3 ±0.4 (out)32~42.2 (out)16~35 Indicator Functions LCD display Low voltage tip ＜2V±0.1 Display resolution Unit Work surrounding C~40 Storage temperature C~+55... -
Page 16: Contact Information And Notices
Non-Contact Thermometer CONTACT INFORMATION AND NOTICES Remote Care Partners 855-477-7000 www.remotecarepartners.com AndseFit LTD Unit 513 Lakeside 1, No. 8 Science Park West Ave Hong Kong Science Park Hong Kong FCC Compliance Statement This device complies with part 15 of the FCC Rules. - Page 17 Non-Contact Thermometer FCC WARNING This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
