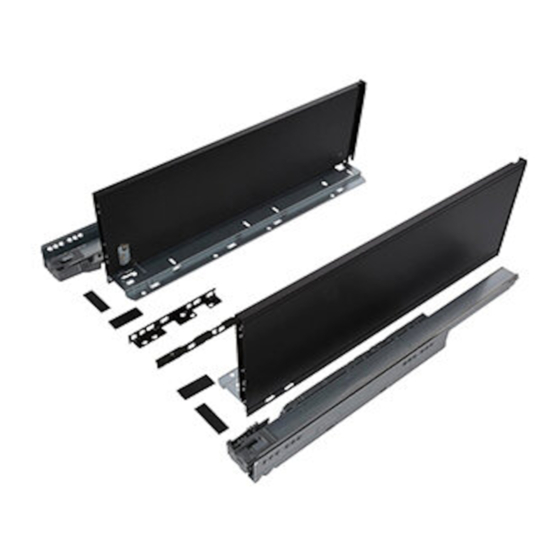

LEGRABOX
Installer's Guide
For detailed videos visit
youtube.com/bluminc

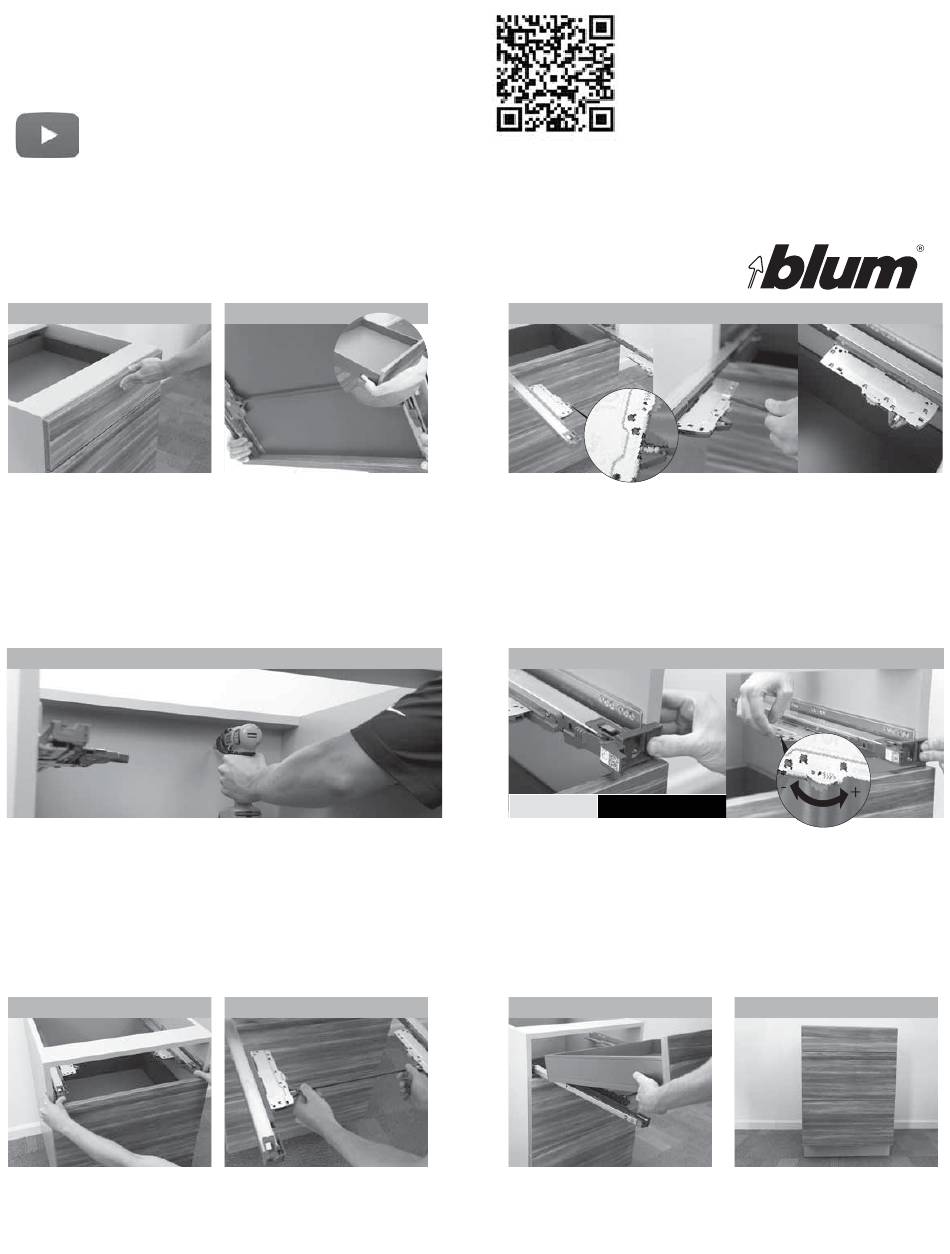

Step 1
First, touch to open drawer.
Step 4
Now install the cabinet, ensuring that the cabinet remains
square and true.
For proper function, it is important that the cabinet does not become
racked during installation.
Step 6
Touch to extend the right
and left runner.
Step 2
With the drawer fully
extended, reach under
the drawer and squeeze
the release levers for the
locking devices. Then pull
drawer straight out.
Step 7
Insert the synchronization
rod.
> For more information visit
youtube.com/bluminc
Dimensions in millimeters (inch equivalents as noted) – Technical
specifications subject to change without notice For more information
about installing Blum products, please visit blum.com or call
1-800-438-6788 for customer service. © 2017 Blum, Inc.
Step 3
Carefully remove the synchronization rod. Repeat these
steps on the remaining drawers.
Further details - To watch the TIP-ON BLUMOTION synchronization rod
video, please visit youtube.com/bluminc
Step 5
part no.
65.5631.US
Next, use the gray front gap template to ensure the front
gap is set correctly for optimal function of TIP-ON
BLUMOTION.
Further details - To watch the TIP-ON BLUMOTION front gap template
video, please visit youtube.com/bluminc
Step 8
Insert the drawer.
Additional instructions -->
Repeat this process for
the other drawers in the
cabinet.
