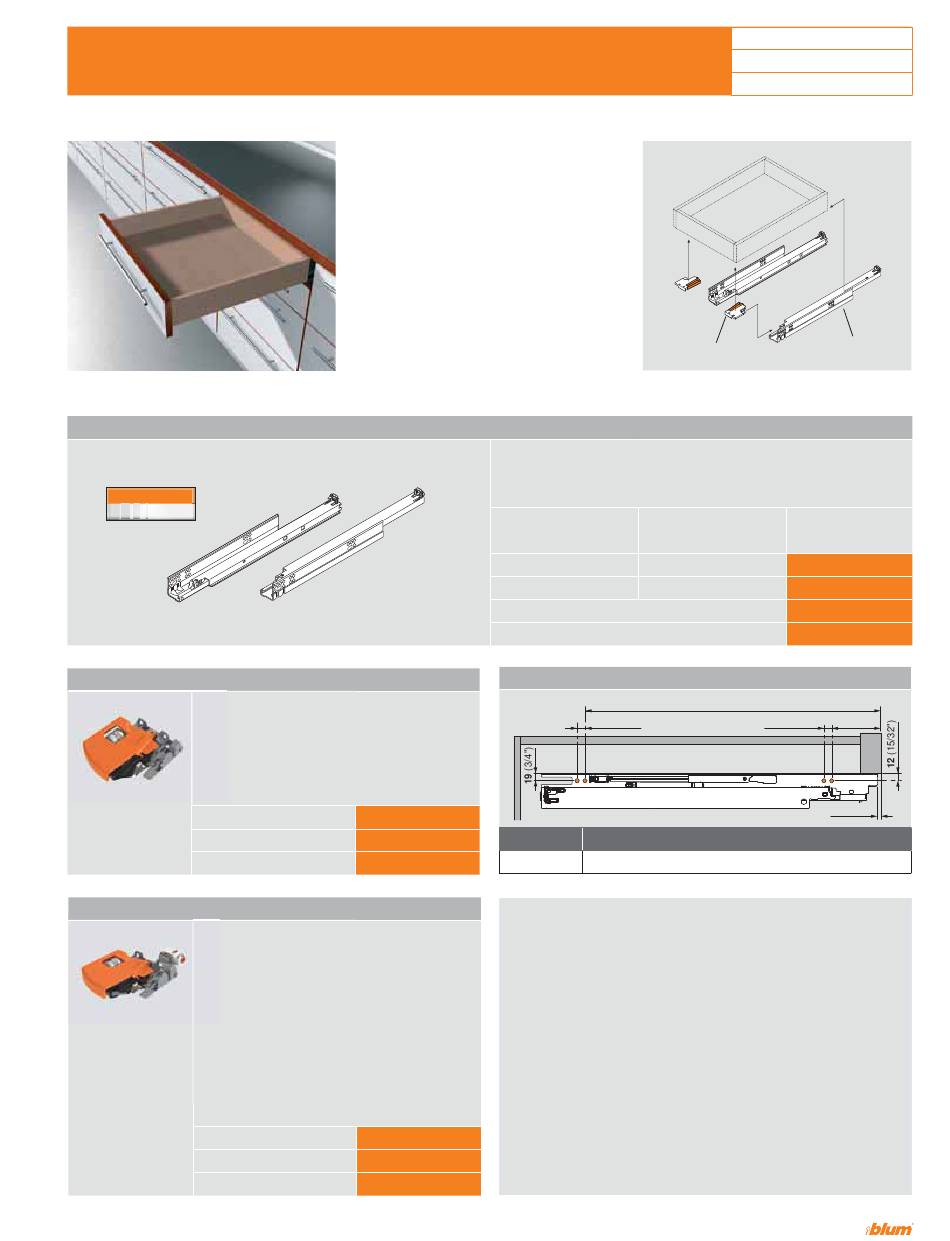

BLUM TANDEM plus BLUMOTION 563.4570B Instructions

TANDEM plus BLUMOTION 563.
Application
Components

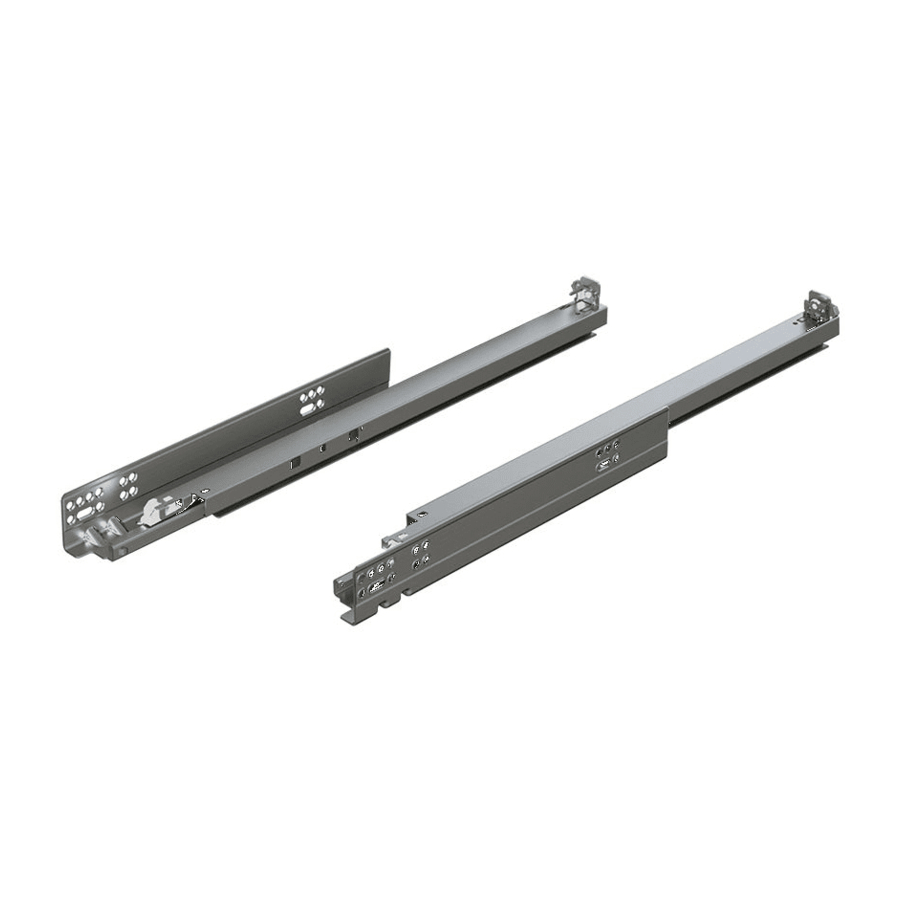

Runner set
One set required per drawer
BLUMOTION
inside
Side adjustable locking device
■ ■ M Minimum inside drawer width 170 (6-11/16")
Height adjustment + 3 (1/8")
■ ■ H
Side adjustment ± 1.5 (1/16")
■ ■ S
■ ■ For use with 563/569 series runners only F
Right locking device
Right and left Left locking device
required per drawer
Installation screw
Depth adjustable locking device
■ ■ Optional for inset applications
■ ■ Offers 2.5 (3/32") out adjustment, preset at 0
■ ■ Height adjustment +3 (1/8")
■ ■ Side adjustment ±1.5 (1/16")
■ ■ For use with 563/569 series runners only
■ Minimum sub front thickness 13 (1/2")
■ Designed for 13 (1/2") bottom recess
■ Integrated 3 (1/8") distance bumper
■ See LIT.TDM1100 for setback information
Right locking device
Right and left Left locking device
required per drawer
Installation screw
Subject to technical modifications without notice. © 2012 Blum, Inc.
Dimensions in millimeters (inch equivalents as noted) LIT.TDM4103.06.12
New features
■ Four-dimensional adjustment
■ Elongated holes for depth adjustment
■ Bottom mounting holes
■ 100 lb static load capacity
Also features
■ Full extension concealed drawer runners
■ Panel or blocked-out face frame cabinets
■ BLUMOTION soft closing
■ TANDEM smooth running action
■ Available in 18" and 21" lengths
■ 13 (1/2") to 16 (5/8") drawer thickness
■ Made in the U.S.A.
For overall
cabinet depth
Wood screw for installation
System screw for installation
Bottom mount holes
Top view
Part no.
T51.1901 R
T51.1901 L Runner
606N or 606P
NOTE:
Cabinet sides must be blocked-out flush with the inside of the frame.
Part no.
T51.1901.PS R
T51.1901.PS L
606N or 606P
Basic components
Locking device
Drawer length
533 (21") 457 (18")
610 (24") 533 (21")
9 (11/32")
X 358 (14-3/32")
For 563. runners, rear brackets and sockets cannot be used.
Product info
TANDEM plus BLUMOTION
New product
Runner
TANDEM plus
BLUMOTION
563.4570B
563.5330B
606N or 606P
662.1150.HG
X
67 (2-5/8")
9 (11/32")
3 (1/8")
All 563.
