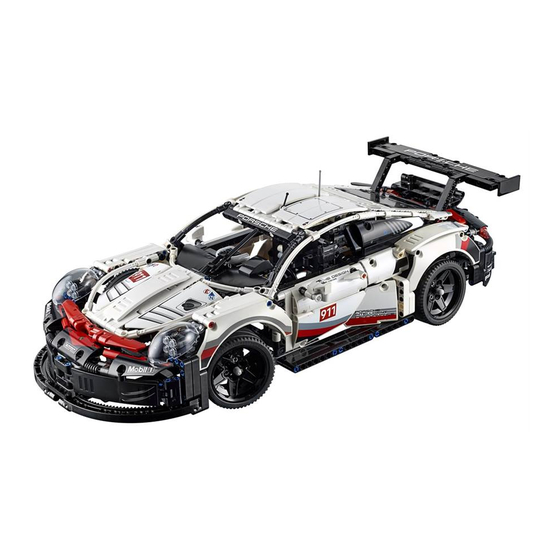

Light My Bricks: LEGO Porsche 911 RSR 42096
Lighting Kit
The following page is the instructions for the
Light My Bricks LEGO Porsche 911
RSR (42096) LED light kit.
If you run into any issues, please refer to the
online troubleshooting guide.
To ensure a trouble-free installation of your light kit, please read and follow
each step carefully. These instructions can be downloaded in PDF format
here
Please note: This page lists instructions for the LED light kit only. If you are
wishing to purchase the Light My Bricks LEGO Porsche 911 RSR (42096) LED
light kit , please click
here
to view the product page

Advertisement

loading
Need help?

Need help?

Do you have a question about the LEGO Porsche 911 RSR 42096 Lighting Kit and is the answer not in the manual?

Questions and answers

Related Manuals for LIGHT MY BRICKS LEGO Porsche 911 RSR 42096 Lighting Kit

Summary of Contents for LIGHT MY BRICKS LEGO Porsche 911 RSR 42096 Lighting Kit

  • Page 1 These instructions can be downloaded in PDF format here Please note: This page lists instructions for the LED light kit only. If you are wishing to purchase the Light My Bricks LEGO Porsche 911 RSR (42096) LED light kit , please click here...

  • Page 2: Package Contents

    Package Contents: 12x White 15cm Bit Lights 6x Red Strip Lights 1x White Strip Lights 1x 8-Port Expansion Boards 1x 12-Port Expansion Boards 1x NC Push Board 2x 5cm Connecting Cables 4x 15cm Connecting Cables 3x 30cm Connecting Cable 1x AA Battery Pack (requires 3x AA Batteries) Important things to note: Laying cables in between and underneath bricks Cables can fit in between and underneath LEGO®...
  • Page 3 CAUTION: Forcing LEGO® to connect over a cable can result in damaging the cable and light. Connecting cable connectors to Expansion Boards Take extra care when inserting connectors to ports of Expansion Boards. Connectors can be inserted only one way. With the expansion board facing up, look for the soldered “=”...
  • Page 4 Connecting cable connectors to Strip Lights Take extra care when inserting connectors to ports on the Strip Lights. Connectors can be inserted only one way. With the Strip Light facing up, ensure the side of the connector with the wires exposed is facing down. If a plug won’t fit easily into a port connector, don’t force it.
  • Page 5 OK, Let’s Begin! 1.) Lift up the headlight covers and remove the two headlight sections as shown below.
  • Page 6 Take the left headlight and disconnect the trans clear round plates then take a White 15cm Bit Light and with the cable facing down, place it over the top left stud as shown below, with the cable laid in between studs. Secure it in place by reconnecting one of the trans clear round plates over the top.
  • Page 7 Install another 2x White 15cm Bit Lights to the two bottom studs as shown below: 3.) Bring the four Bit Light cables together at the bottom of the headlight...
  • Page 8 section, then twist/wind them around each other 2-3 times to secure the cables together. Ensure you hold the headlights in between your thumb and index finger when twisting the cables to prevent the trans round plates from popping off. 4.) Repeat the above steps to install 4x White 15cm Bit Lights to the right headlight section.
  • Page 10 5.) Take the 12-Port Expansion Board and connect all the lights from the two headlight sections to it. Take your AA Battery Pack and insert 3x new AA Batteries to it. Connect the battery pack cable to the expansion board, then turn it ON to test the 8 lights from the headlights are working OK.
  • Page 11 Note: If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board). To correct any issues with expansion board ports, please view the section addressing expansion board issues on our online troubleshooting guide.
  • Page 12 6.) Take the left headlight section and feed the cables through the space behind it (over the black horizontal technic bar) before securely reconnecting the headlight in place.
  • Page 13 Repeat this step to reconnect the right headlight section.
  • Page 14 7.) Turn the car over and pull both groups of cables out. Connect the right group of cables to the 12-Port Expansion Board, then feed the expansion board underneath the following middle section. Pull the expansion board out from the other side, then reconnect the left group of cables to it.
  • Page 15 Reconnect the AA Battery Pack to the expansion board and turn it ON to test the headlights are all working OK. Note: If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board).
  • Page 16 Take a 30cm Connecting Cable and connect it to the other port on the Red Strip Light. Using the Strip Light’s adhesive backing, stick the Strip Light underneath the car in the following position.
  • Page 17 9.) Take the other end of the 30cm Connecting Cable and thread it underneath the technic bars. Continue to thread it in between the wheel axis, pulling it out from the other side.
  • Page 18 Thread the cable underneath the light grey technic bar, then bring it back over again and thread it through the technic bar hole towards the left. Ensure you tighten the cable as you pull it out from the other side.
  • Page 19 Continue to loop the cable back around, threading it through the same hole as before. Ensure you tighten the cable each time you pull it out from the other side. Loop the cable back through a few more times to eliminate excess cable until you have about 4-5cm of cable left, then connect it to a new Red Strip Light.
  • Page 20 10.) Take a 5cm Connecting Cable and connect it to the other side of the Red Strip Light, then using it’s adhesive backing, stick the strip light down vertically on the black technic bar in the below position. Connect the other end of the 5cm Connecting Cable to a new Red Strip Light, then connect a new 30cm Connecting Cable to the strip light’s other port.
  • Page 21 Using it’s adhesive backing, stick the Red Strip Light vertically onto the black technic bar in the below position. Ensure the 5cm Connecting Cable in between is stretched out to prevent it from dangling down. 11.) Take the other end of the 30cm Connecting Cable and thread it through the hole on top of the technic grey bar, then pull it all the way from the other side out as shown below:...
  • Page 22 Bring the cable back over the technic bar and thread it through the same hole as before to secure the cable in place. Thread the cable underneath the following technic bars and pull the cable all the way out from from the middle area as shown below:...
  • Page 23 Bring the cable toward the left, underneath the centre bars, then thread the cable through the technic bar hole as shown below. Pull the cable out from the bottom, then bring the cable back over the technic bar and thread it back through the same hole.
  • Page 24 12.) Take a 5cm Connecting Cable and connect it to the other end of the Red Strip Light from previous step, then using it’s adhesive backing, stick the strip light vertically to the below position.
  • Page 25 Connect the other end of the 5cm Connecting Cable to a new Red Strip Light. Take a new 15cm Connecting Cable and connect it to the strip light’s other port, then using it’s adhesive backing, stick the strip light vertically to the below position close to the rear wheel.
  • Page 26 13.) Take the other end of the 15cm Connecting Cable from previous step and thread it underneath the grey technic piece, then pull it all the way out from the other side. Thread the cable down the space on the right of the wheel that leads to the inside of the trunk.
  • Page 27 Flip the Porsche back around and open the trunk and locate the other end of the connecting cable. Pull the cable all the way up and connect it to an 8-Port Expansion Board.
  • Page 28 Take the AA Battery Pack and connect the battery pack cable to the 8-Port Expansion Board, then place it inside the trunk. Turn it ON to test all the red strip lights are working OK. Note: If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board).
  • Page 29 14.) Close the trunk, then flip the car back over again and locate the other end of the second 15cm Connecting Cable we connected to the 12-Port Expansion Board (step. 8). Thread the cable underneath the wheel axis, then through the hole of the grey technic piece as shown below:...
  • Page 30 Thread the cable down the following space which leads to the inside of the driver side. Open the driver door and pull the cable all the way out.
  • Page 31 Flip the car back over and connect the other end of the cable to the IN port on the NC Push Board. 15.) We will now disconnect the roof at the following sections.
  • Page 32 Follow the below images to disconnect technic pins in order for us to lift up the roof.
  • Page 33 Take a 30cm Connecting Cable and connect it to the OUT port on the 16.) NC Push Board. Using it’s adhesive backing, stick the NC Push Board to the...
  • Page 34 following position of the driver doorway. We need to ensure that when we close the driver door, it will push in the trigger on the NC Push Board. Lay the other end of the 30cm Connecting Cable across the right, then thread it up behind the driver’s seat and up in between the white horizontal bar.
  • Page 36 Connect the cable to a White Strip Light, then using it’s adhesive backing, stick the strip light underneath the roof in the following position: 17.) Push the roof back down, then reconnect everything back in place by pushing in the pins we pulled out earlier.
  • Page 37 Turn ON the Battery Pack and test the NC Push Board function. When you open the driver door, the interior light should turn activate. When closing the door, the interior light should deactivate. Troubleshooting step: If you’re interior light is not functioning correctly, check that the NC Push Board is correctly mounted so that the trigger is pushed...
  • Page 38 when the door is closed. You may need to adjust the positioning of the Board. 18.) Flip the car back over with the rear of the car facing toward you. Take the remaining Red Strip Light and connect a 15cm Connecting Cable to it. Using it’s adhesive backing, stick the Strip Light horizontally underneath the car in the following position.
  • Page 39 Flip the Porsche back around, open the trunk. Locate the other end of the connecting cable, then pull it all the way out and connect it to the 8-port Expansion Board. Turn the Battery Pack ON to test the rear Red Strip Light is working OK.
  • Page 40 Note: If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board). To correct any issues with expansion board ports, please view the section addressing expansion board issues on our online troubleshooting guide.
  • Page 42 Take left tail light section and disassemble it as shown below Take a White 15cm Bit Light and thread the connector end through the left hole on the black technic plate. Thread the cable all the way through until you have approx.
  • Page 43 Ensuring the cable is placed to the side of the + hole, reconnect the light grey technic pin. Bring the Bit Light underneath the pin toward the left side as shown below: Reconnect the trans red piece, then from the back of this section, push the Bit Light in so that it securely fits inside the trans red plate.
  • Page 44 20.) Take another White 15cm Bit Light and thread the connector end through the right + hole on the black technic plate. Thread it all the way through leaving approx. 2cm from the Bit Light to the edge of the plate. With the cable on the left side of the + hole, reconnect the light grey technic pin with black section connected.
  • Page 45 Bring the Bit Light underneath the light grey technic pin to the right side, then reconnect the trans red plate. From the back of this section, push the Bit Light in so that it securely fits inside the trans red plate.
  • Page 46 21.) Install another 2x White 15cm Bit Lights to the right tail light section, using the same method used to install lights to the left tail light section.
  • Page 48 22.) Take both tail light sections and connect all four bit light cables to the 8- Port Expansion Board inside the trunk of the car. Turn the Battery Pack ON to test the tail lights are all working OK. Note: If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or expansion board).
  • Page 49 Take the left tail light section and thread the cable through the rear left side of the car before reconnecting the tail light section at the technic pin. Pull the other end of the cable all the way up from the inside of the trunk and connect them to the 8-Port Expansion Board.
  • Page 50 Repeat this step for the right tail light section.
  • Page 51 24.) Neaten up cables inside the trunk, then place the expansion board and cables underneath the Battery Pack before closing the trunk door.
  • Page 52 This finally completes installation of your Light My Bricks Porsche 911 RSR Light Kit! We thank you for purchasing this product and hope you enjoy!
