Installation & User Guide

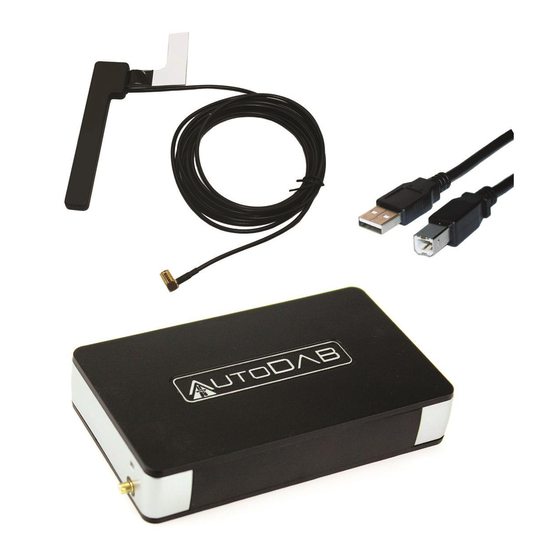

What's Included?
i. AutoDAB USB Interface
ii. Amplified Antenna
iii. USB Connection Lead
Features & Benefits
•
Universal, plug and play digital radio interface
•
True Digital Sound
•
Integrates seamlessly with the original vehicle stereo
•
Operated via the vehicle's head unit or steering wheel controls
•
Voice prompt system for added safety (if supported by the original head unit)
•
Glass mount DAB antenna included for high quality signal
The information provided in this document is subject to change without notice due to manufacturer changes and/or improvements to the product/s. This
instruction manual is based on documented data and research. The manufacturer of this product cannot be held responsible for any changes made to the
vehicle by the manufacturer or damages that may occur through the installation of this product in accordance with the steps outlined herein.
ii
i
DISCLAIMER
USB
iii
AUTODAB-USB_IUG_en-GB_v3
Advertisement
Table of Contents
Related Manuals for AutoDab USB
Summary of Contents for AutoDab USB
- Page 1 Installation & User Guide What’s Included? i. AutoDAB USB Interface ii. Amplified Antenna iii. USB Connection Lead Features & Benefits • Universal, plug and play digital radio interface • True Digital Sound • Integrates seamlessly with the original vehicle stereo •...
- Page 2 Connects2 can not be held responsible for the installation of this product. ANTENNA INSTALLATION Important: Only install the AutoDAB USB using the included antenna. Note: We recommend placing the antenna 3/4 of the way up the windscreen and away from all heating elements to ensure a reliable installation.
- Page 3 SET UP 1. Connect the interface to the vehicle as outlined in the Connection Diagram on Page 2. Connections must be made to the vehicle’s OEM USB port and to the amplified antenna in order for the interface to function correctly.
- Page 4 OEM steering wheel controls or via the OEM head unit touchscreen or buttons. Note: if the AutoDAB USB is connected to a PC, the interface will be recognised as a device with removable storage. To access the set- tings, simply click on and open the device and navigate through the folders.
