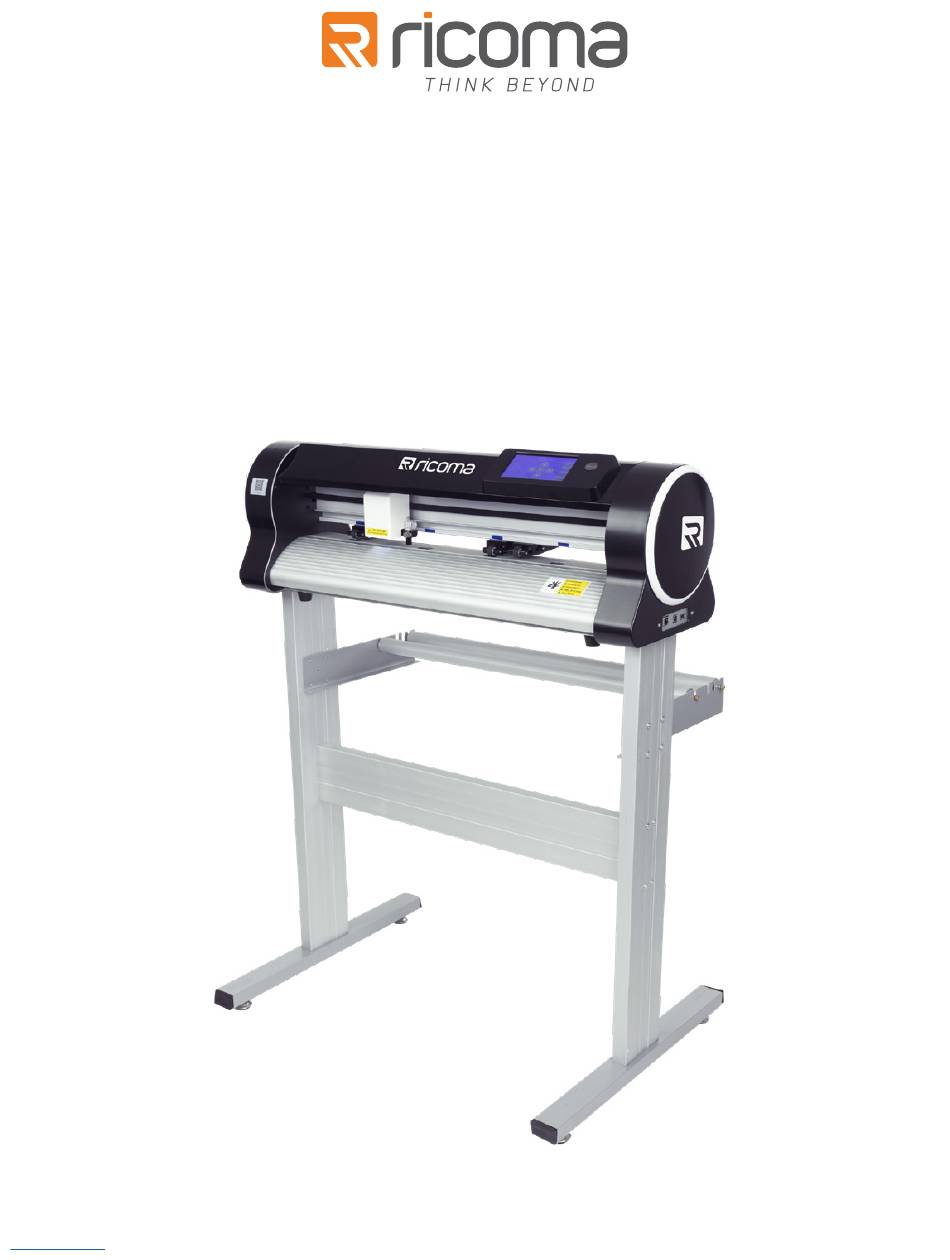

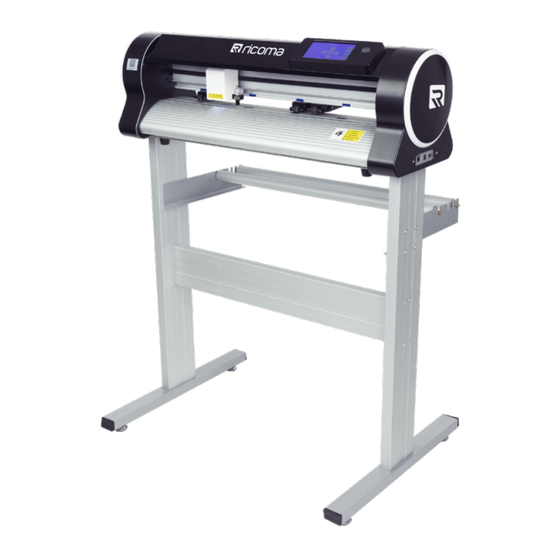

- Page 1 QUICK START GUIDE RCP-6301 CUTTING PLOTTER RICOMA INTERNATIONAL CORPORATION 11555 NW 124th St, Miami, FL 33178 Telephone: (305) 418-4421 | Toll Free: 1-888-292-6282 Fax: (305) 418-5036 | Email: info@ricoma.com Copyright ©2021 Ricoma ricoma.com All rights reserved...
-
Page 2: Definition Of Symbols
If you are not going to use the machine for a long time, please unplug the power cable from the receptacle to avoid fires or electrical shortages from occurring. Ricoma Quick Start Guide... - Page 3 Any operation is forbidden in case of storms or lightning to prevent damage of the machine. Do not pull the cartridge by hand to avoid damage to the mainboard when the plotter is powered on. Ricoma Quick Start Guide...
-
Page 4: Standard Accessories
STANDARD ACCESSORIES Item Part Quantity Power cord USB Cable Blade holder * In machine Blade * 1pc in machine Pen and pen holder Signmaster User Manual Ricoma Quick Start Guide... - Page 5 2. Please DO NOT lose the Signmaster PSN code. If you need to change computers to install Signmaster, please deactivate it before installing it in another computer. 3. Computer support: All Windows systems. 4. If you encounter any problem, please refer to “FAQ” to get the solution. Ricoma Quick Start Guide...
-
Page 6: Usb Driver Installation
“USB Driver Setup.” After, your computer should display the following window: After driver installation, windows will close automatically. Computer will display the following Click “Finish”. window. Click “Next”. Ricoma Quick Start Guide... - Page 7 “Properties”. The dialog box (COM3)” as follows: pop-up should be as follows: Click “Advanced”. To change the port number, click on the “COM Port Number” drop down box to select the correct port number. Ricoma Quick Start Guide...
-
Page 8: Installation
3.1.3 Check power and voltage. Do not connect to power until you ensure the connection is grounded and is the proper voltage. 3.2 Installation cutting tool CAUTION Don’t touch the top of the blade with your finger to prevent injury. Ricoma Quick Start Guide... - Page 9 Signmaster software. 3. Follow the Signmaster operation manual for more details and watch the informational video to learn what a basic cut and contour cut are. Contour cut: Please refer to your Signmaster software manual. Ricoma Quick Start Guide...
- Page 10 Basic Cut: Import vector file, or write the letters of your choosing, then click the Blade Tool and start cutting. You can set the offset and overcut setting under the Properties-Cut option or through your connection. (Connection can be through Windows port-file/Direct COM part when linked with any computer with a Windows system.) Ricoma Quick Start Guide...
- Page 11 5. Working with templates: http://iifuture.org/vmtuts/getVMTut.php?key=smc_full_templates&r=0 3.3B Computer installation (If working with CorelDRAW): Note: Due to customers using different versions of CorelDRAW (including cracked versions), the dongle might not match, so it’s best to use Signmaster. Ricoma Quick Start Guide...
- Page 12 CUTTING PLOTTER INSTRUCTIONS 4.1 Name and function of parts 4.1.1 Front view Side 1 Ricoma Quick Start Guide...
- Page 13 13. Power supply port 7. Blade holder 14. Switch 4.1.2 Keypad and display 1: Go back 2: Forward 3: Go left 4: Go right 5: Online 6: Menu 7: Pause 8: Reset 9: Original 10: LCD Ricoma Quick Start Guide...
- Page 14 4.2.1.2 Plug the cable into the power source and press the power switch. 4.2.2 Installation of cutting media This machine is suitable not only for single-sheet media, but also a roll of media. 4.2.2.1 Press down the handle of pinch roller behind the machine to raise the handle. Ricoma Quick Start Guide...
- Page 15 Do not use poor-quality knives. 4.3 Cutter operation instruction and parameter setting: When the cutter is open, the cutter will go to the original position and you will see the display below on your cutter. Ricoma Quick Start Guide...
- Page 16 Find the right plt format file. Then press to confirm it. Then set the number of repeats and the distance between the pieces you are cutting. Press again and the camera will scan the marks and start to cut. Ricoma Quick Start Guide...
- Page 17 The cutter will remember the last job sent from the computer to the cutter. To re-cut the previous design, press to execute the previous cutting. 3) Press “Menu” again and you will see the screen below: Ricoma Quick Start Guide...
- Page 18 Check the computer’s IP address first, and then make sure the plotter’s IP address is different. If they are the same, then change the last number of the plotter’s IP address. Signmaster’s IP address should be the same as the plotter. 4.2) Press “Menu” again and you will see the screen below: Ricoma Quick Start Guide...
- Page 19 4.3.3 Press and you will see the screen below: 4.3.4 Press the “Reset” button and the cutter will go back to its original position. You will see the screen below after you press the reset button: Ricoma Quick Start Guide...
- Page 20 (ATTENTION: The offset value can be over or under, so follow the image below to properly set the compensation in your software.) Correct Not enough Over When you are using cutting software, we recommend you select the high precision output. Ricoma Quick Start Guide...
- Page 21 To see the relationship between speed and character size, please refer to the following table: Size of font (mm) Speed (mm) 2-10 10-30 80-200 30-50 200-350 50-500 350-500 >500 Ricoma Quick Start Guide...
- Page 22 5.11 Question: Why is the machine not paving some of the letters when cutting? Answer: (1) Check if the machine is applying enough pressure. (2) Reinstall the software. (3) Check the head of the knife. (4) If the problem persists, contact the repair center. Ricoma Quick Start Guide...
- Page 23 5.18 Question: Why does the plotter seem out of our control sometimes? Answer: Maybe while transporting or using it, the signal line was disconnected. To fix this, open the machine and properly plug in all signal lines. If the problem persists, please contact a local agent or Ricoma Quick Start Guide...
- Page 24 If it seems to be overheating, please unplug it as a dielectric displacement of the servo driving board may have occurred. If this is the case, contact a local agent or customer maintenance center. Ricoma Quick Start Guide...
- Page 25 FLOOR STAND ASSEMBLING INSTRUCTION KM 5*16 PM 5*35 PM 5*40 PM 5*45 Table screws and instructions: KM 5*16 H: KM 5*16•••8pcs PM 5*16 J: PM 5*35•••10pcs PM 5*35 L: PM 5*40•••8pcs M: PM 5*45•••8pcs PM 5*40 PM 5*45 Ricoma Quick Start Guide...
- Page 26 4. Click “Test”. If the connection is successful, you can send your designs to the plotter from Signmaster. Note: Your router’s IP address can not be the same as the plotter’s IP address. If they are the same, change the last number of the plotter’s IP address in the “Menu” option. Ricoma Quick Start Guide...
- Page 27 Baochangli Industrial Park, Jinlong Road 3, TEL: (305) 418-4421 | FAX: (305) 418-5036 Shenzhen, P.R. China (Post: 518118) Toll Free: 1-888-292-6282 TEL: 400-900-2939 | 0755-25857772-8630 | FAX: +86-755-2585-7773 Website: www.ricoma.com | Email: info@ricoma.com Website: www.ricoma.com.cn | Email: rcm@ricoma.cn Ricoma Quick Start Guide...
