Fiber Collimators Series 60FC-L
Fiber Collimators Series 60FC-L
This document provides assistance in installing the fiber collimators series 60FC-L with an outer diameter 25/28
mm
. It describes how a fiber cable is attached and how the collimation setting is adjusted.
1)

Before You Start

The fiber collimator is shipped with a protection cap for the fiber receptacle and with a front cap.
Notice:
There is a two-part protection cap on the receptacle. Please perform the following steps in order to remove
this cap:
1) Additionally type 60FC-L with the optics type M40L.
Adjustment_60FC-L-25
17.12.2020
Schäfter+Kirchhoff GmbH Kieler Str. 212 22525 Hamburg, Germany
Please remove all the protection caps first and do not use them as beam
dumps (risk of photo contamination).
© Schäfter+Kirchhoff GmbH

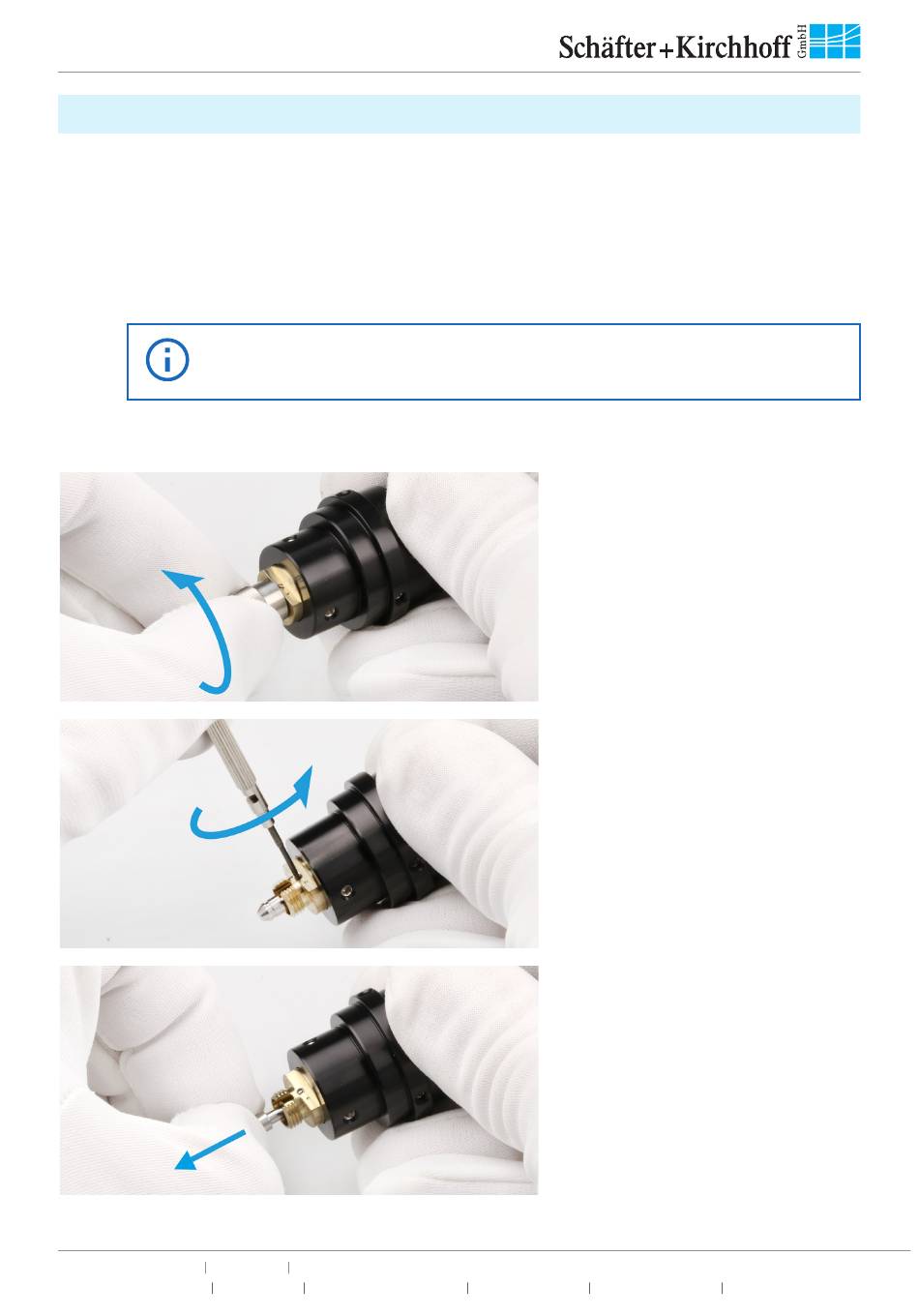

Figure 1:
First, remove the threaded cap from
the fiber receptacle of the fiber
collimator.
Figure 2:
Then, slightly loosen the small pin
screw. Use the screwdriver 9D-12.
Make sure to not loosen it too far, as it
is small and easily lost.
Figure 3:
Now, pull out the plug.
+49 40 85 39 97-0 info@sukhamburg.de www.sukhamburg.com
