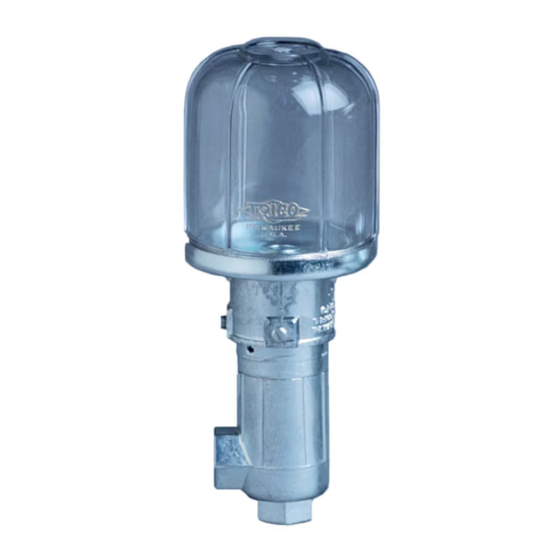

Trico Opto-Matic 30078 Instructions

Plastic Opto-Matic Oilers
Read Instructions Before Installing

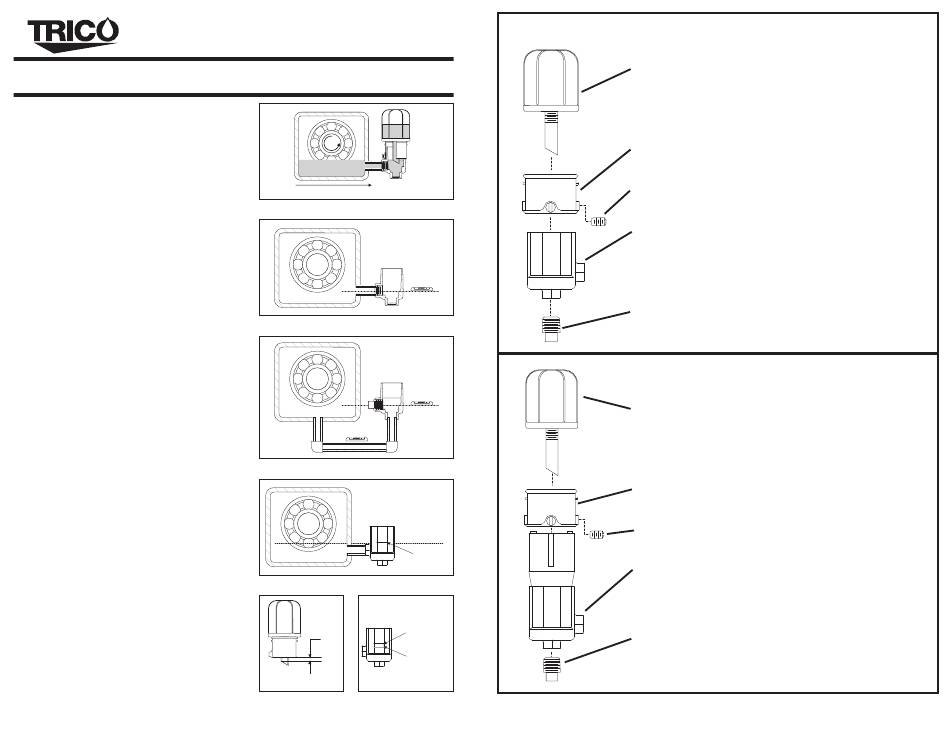

1. Prior to installing the Opto-Matic Oiler, shaft rotation
direction must be determined, typically indicated by an
arrow on the casting of the equipment. Install oiler on
the side of the equipment facing the direction of shaft
rotation to prevent misfeeding of the oiler (Fig 1).
2. Determine proper oil level, which may be indicated
on the equipment with an arrow. If that is not the case,
engineering drawings or the equipment's operator
manual can provide the information. Indicate proper
oil level on equipment using a marking device such
as; a marker, scribe, paint, etc.
3. Loosen set screws on reservoir assembly. Remove
reservoir assembly from lower casting.
4. Be sure all connecting hardware is free from
contaminants (burrs, chips, dirt, etc.) to prevent
clogging or damage to the equipment to be lubricated.
5. Connect lower casting to bearing chamber either
through the side connection, Type E and EH oilers
(Fig. 2) or the bottom connection, Type EB and
EHB oilers (Fig. 3). Use thread compound on
threaded areas.
6. Verify the lower casting is level and parallel with
desired oil level (Fig. 2 and 3). Make necessary
adjustments if needed until lower casting is level.
7. From the oil level mark indicated on the equipment,
use a level to put a mark on the outside of the Opto-
Matic lower casting to indicate where the oil level
should be (Fig 4).
8. Measure the distance between Opto-Matic Oiler
casting edge and top edge of spout angle (Fig 5).
Mark this distance above the original line made in
step 7 on the outside of the Opto-Matic lower casting
(Fig. 6). Now the bottom of the reservoir assembly
can be used as an indicator of oil level.
9. Fill the equipment bearing chamber through the lower
casting until the oil level reaches just below the mark
made in step 7 on the lower casting. DO NOT fill at
or above this mark as it will cause your equipment to
have a high oil level.
10. Use a funnel to fill the reservoir assembly 2/3rds
with the recommended oil.
11. Place thumb over reservoir spout, invert, and insert
on lower casting assembly at the point where the
bottom edge of the reservoir assembly is at the level
"X" mark from step 8. Quickly tighten set screws on
the side of the reservoir assembly.
12. Start up equipment to verify proper oil level is
being maintained.
TRICO CORPORATION 1235 Hickory St., Pewaukee, WI 53072 Phone: (262) 691-9336
Direction of shaft rotation
X
Fig. 5
www.tricocorp.com
Fig. 1
Spirit
Level
Fig. 2
Spirit
Level
Fig. 3
Level Line
Oil Level
Fig. 4
Mark Level "X"
Mark from
step 7
Fig. 6
TRICO CORPORATION 1235 Hickory St., Pewaukee, WI 53072 Phone: (262) 691-9336
"E" & EB" OPTO-MATIC

REPLACEMENT PARTS LIST

RESERVOIR FOR
2 oz. (60 ml.) Oilers - 20282R
4 oz. (120 ml.)Oilers - 20283R
8 oz. (240 ml.) Oilers - 20284R
UPPER CASTING WITH SET SCREWS FOR
All types and sizes - 20315R
SET SCREW ONLY
All types and sizes - 10310
LOWER CASTING FOR
Type "E" with ¼ NPT side hole only - 10304
Type "E" with ¼ BSPT side hole only - 14243
Type "EB" with ¼ NPT side and bottom holes - 10306
Type "EB" with ¼ BSPT side and bottom holes - 14241
PIPE PLUG FOR
Type "EB" ¼ NPT - 10321
Type "EB" ¼ BSPT - 14201
"EH" & EHB" OPTO-MATIC
REPLACEMENT PARTS LIST
RESERVOIR FOR
2 oz. (60 ml.) Oilers - 20327R
4 oz. (120 ml.) Oilers - 20328R
8 oz. (240 ml.) Oilers - 20329R
UPPER CASTING WITH SET SCREWS FOR
All types and sizes - 20315R
SET SCREW ONLY
All types and sizes - 10310
LOWER CASTING FOR
Type "EH" with ¼ NPT side hole only - 20330R
Type "EH" with ¼ BSPT side hole only - 22544R
Type "EHB" with ¼ NPT side and bottom holes - 20331R
PIPE PLUG FOR
Type "EHB" ¼ NPT - 10321
www.tricocorp.com
61402 02/19
