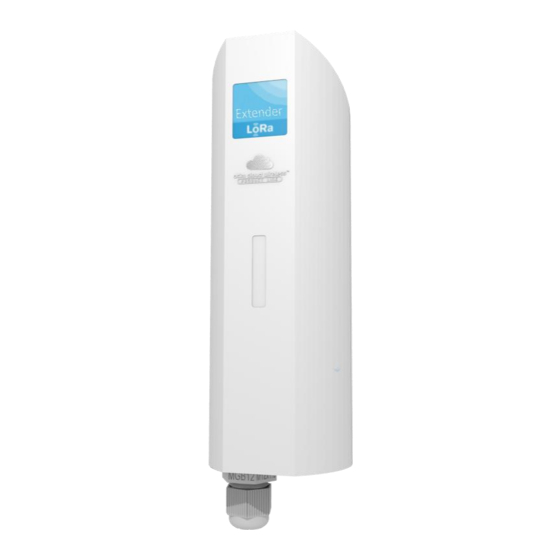

- Page 1 Atim Cloud Wireless LoRaWAN repeater on Orange network User Guide Concerned models: ACW/LW8-EXT-PWR ACW/LW8-EXT-SLR ATIM Radiocommunications www.atim.com Chemin des Guillets info@atim.com 38250 Villard de Lans +33 4 76 95 50 65 France...
-
Page 2: Table Of Contents
ABLE OF ONTENTS Disclaimer ..............................2 Trademarks and copyright........................2 Declaration of compliance ........................3 Environmental recommendations ......................3 Explosive atmosphere .......................... 3 Environment ............................3 Radio ..............................4 Prelude ..............................5 Technical specifications ........................... 6 Product Identification ..........................7 Operating mode .......................... -
Page 3: Disclaimer
Trademarks and copyright ATIM radiocommunications®, ACW ATIM Cloud Wireless® and ARM Advanced Radio Modem® are registered trademarks of ATIM SARL in France. The other trademarks mentioned in this document are the property of their respective owners. ATIM_ACW-LW8-EXT_UG_EN_V1.3ATIM_ACW-LW8-EXT_UG_EN_V1.3... -
Page 4: Declaration Of Compliance
Declaration of compliance All ACW Atim Cloud Wireless® products comply with the regulatory requirements of the R&TTE Directive (1999/5/EC), article 3: 1 SAFETY (Article 3.1a of the 1999/5/EC Directive) NF EN60950-1 Ed. 2006/A1:2010/A11:2009/A12:2011 (health) EN62479: 2010 (power <20mW) or EN62311:2008 (power > 20mW) 2 Electromagnetic compatibility (Article 3.1b of the 1999/5/EC Directive) -
Page 5: Radio
General hazard – Failure to follow the instructions presents a risk of equipment damage. Electrical hazard – Failure to follow the instructions presents a risk of electrocution and physical injury. Direct-current symbol WARNING: do not install this equipment near any source of heat or any source of humidity. WARNING: for your safety, it is essential that this equipment be switched off and disconnected from mains power before carrying out any technical operation on it. -
Page 6: Prelude
Prelude This user guide describes the ATIM ACW-EXT product functionalities. It explains operating, configuration and installation modes in function of different use cases. The LoRaWAN Extender has been developed in partnership with Orange to repeat LoRaWAN devices located in low network coverage sites like basements parking lots, boiler room in subsoils or industrial facilities. -
Page 7: Technical Specifications
Technical specifications General Dimensions 177 x 55 x 55 mm Antenna Integrated (¼ of wave) -20°C to +55°C (operating mode) Temperature -40°C to +70°C (storage) Mounts to Wall, tube, DIN-rail Casing IP 65 Weight 210 g Power supply ACW/LW8-EXT-PWR 220 V ACW/LW8-EXT-SLR Integrated solar panel Consumption... -
Page 8: Product Identification
Every ACW Product Line devices carries a QR Code located on the flank or on the front of the device. This QR Code can be easily read with any smartphone 2D reading app. QR Code reading shows the following information: • ATIM|ACW/LW8-EXT-PWR|A.0|190716|1|1.0|1.2|70B3D59BA00003A4 • ATIM|ACW/LW8-EXT-SLR|A.0|190716|1|1.0|1.2|70B3D59BA00003A4 Meaning ACW/LW8-EXT-PWR... -
Page 9: Operating Mode
1. Operating mode The ACW/LW8-EXT is a LoRaWAN repeater available for ORANGE network. It allows to repeat uplink and downlink frames from linked devices. Its integration in the network is transparent as the uplink and downlink frames repeated by the smart Extender are directly available on the Orange’s Live Objects interface with the repeated devices’... -
Page 10: B) Repeating Mode
(Information not available on the Extenders monitoring Interface) o Counting of uplink and downlink frames (Information not available on the Extenders monitoring Interface) o Device Address assigned to the devices by the Extender. (Information not available on the Extenders monitoring Interface) •... -
Page 11: Repeating Phase
• Repeating phase If a sensor is part of an equipment list to repeat and that he realized its Join with the Extender, it is in the repeating phase. Every new uplink frame received is sent to Orange network. When the network receives a frame from the sensor and the frame from the repeater, the network server will delete the duplicate and will keep one and unique frame. -
Page 12: D) Live Objects Interface
d) Live Objects Interface Live Objects Interface remains the point of interface with the sensor. It provides sensors data reading and relay information to the sensor through downlink frames. The connexion URL to the Live Object portal is: https://liveobjects.orange-business.com/#/dashboar e) Solar panel specifications The solar panel version is equipped with a battery continuously recharged by the solar panel. -
Page 13: Acw/Lw8-Ext Installation
On the « Park » window, select « Add an equipment ». On the Adding window, fulfill the DEV-EUI, APP-EUI and APP-KEY parameters provided by ATIM. The « Name » field is free. We advise you to keep a 1-minute period for the keep alive frame (monitoring frame) to ease the Extender parametrization. -
Page 14: B) Sensors Provisioning On The Extender
Click on Save. When you return to the home page, the Extender is now visible and has the registered status. Start the Extender. It will switch to “Activated” state when it reached the network. Note For the solar panel version, the product must be positioned for several hours in the sun to be properly charged. - Page 15 Enter its APP-KEY: In this case of adding, the whole sensor parameters are required (DEV-EUI, APP-EUI, APP-KEY). Click on the « Add an equipment » button and enter these parameters: ATIM_ACW-LW8-EXT_UG_EN_V1.3ATIM_ACW-LW8-EXT_UG_EN_V1.3...
-
Page 16: Deletion / Migration Of A Sensor
The new equipment is added to the equipment list and will appear « commissioning in process » on the smart Extender. This commissioning phase will take a few minutes (if the keep alive frame is set on 1-minute). The equipment is effectively registered when the state switches to « registered on the smart Extender ». If after 20 minutes or so, the equipment does still not appear as registered, we recommend you to force the deletion of the equipment and restart the operation. -
Page 17: C) On Site Installation Of The Extender
Note The sensor will have to be restarted to be connected to the new network. c) On site installation of the Extender The localization of the Extender must be chosen to have a comfortable Orange network coverage to repeat that network correctly. During this phase, the keep alive frame (monitoring frame) period must be fixed at 1-minute to ease the installation. - Page 18 3. Technical Support For any information or technical issue, you can contact our technical support team through the following webpage: https://www.atim.com/en/technical-support/ ATIM_ACW-LW8-EXT_UG_EN_V1.3ATIM_ACW-LW8-EXT_UG_EN_V1.3...
