Summary of Contents for INIM Electronics SmartLink/P Advanced

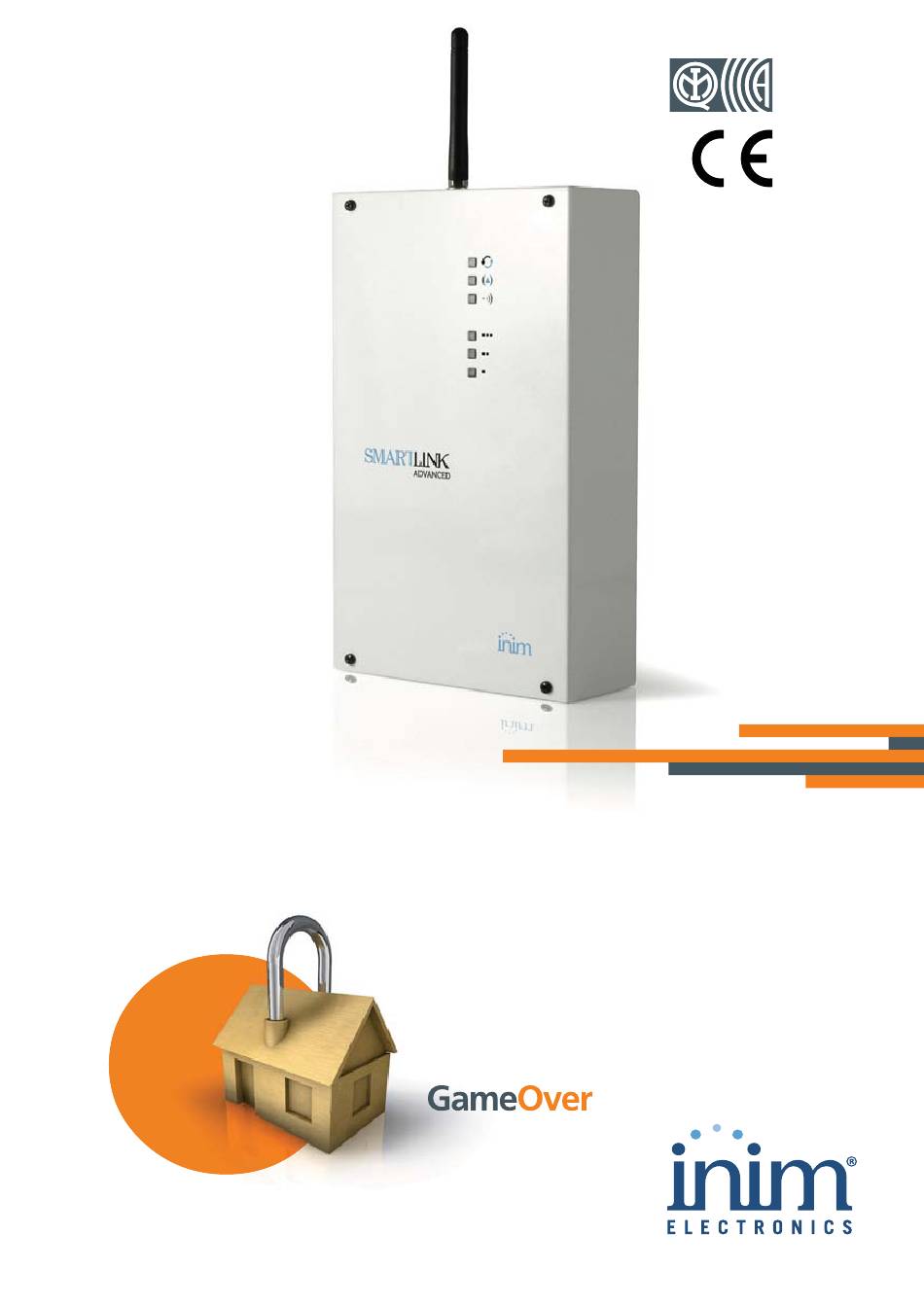

- Page 1 Installation and programming manual SmartLink Advanced Telephone dialler Installation and programming manual...
-
Page 2: Warranty
Seller's option, any product not meeting the specifications. In no event shall INIM Electronics s.r.l. be liable to the purchaser or any other person for any loss or damage whether direct ot indirect or... -
Page 3: Table Of Contents
Installation and programming manual Table of contents Warranty ......2 Limited warranty ......2 Copyright . - Page 4 Telephone dialler Earth connection ......Inserting the SIM card ......PC Connection .
-
Page 5: About This Manual
Installation and programming manual ABOUT THIS MANUAL DCMIINE0SLINKA MANUAL CODE 1.00 VERSION Terminology If not otherwise specified, refers to the SmartLink. DEVICE Directions as seen by the operator when directly in front of the LEFT, RIGHT, BEHIND, mounted device. ABOVE, BELOW A device which sends voice calls or digital reports to programmed DIALLER contact numbers in the event of an alarm. -
Page 6: Chapter 1 General Information
Web: www.inim.biz The persons authorized by the manufacturer to repair or replace the parts of this system, hold authorization to work on INIM Electronics brand devices only. Description of the product and various models The SmartLink device described in this manual is a reserve DESCRIPTION telephone line generator and dialler. -
Page 7: Supplied Documentation
The manuals are regularly supplied with the apparatus and can be downloaded from “Download” section website: www.inim.biz. The installation manual is included in the package. To order further copies contact the offices at INIM Electronics and quote the order number shown in Appendix B, Order Codes. General information... -
Page 8: Chapter 2 Device Description
Telephone dialler Chapter 2 DEVICE DESCRIPTION Unpacking the device The SmartLink is packed inside a cardboard box containing: • the device, consisting of a PCB mounted inside a metal box. • A bag containing the installation kit comprising: •• Antenna ••... - Page 9 Installation and programming manual Metal backbox PCB board Table 3: Table 2: PCB - description of parts PCB - description of parts Battery housing Terminal board Wall-mount screw locations Open-tamper microswitch Screw holes Battery connector Cable entries USB connector Antenna placement hole SIM card connector Antenna connector Default-data reset button...
-
Page 10: Signalling From Device
Telephone dialler Table 5: Technical specifications Models SmartLink/P SmartLink/G SmartLink/GP Nominal output 13.8 Vdc ±10% voltage Voltage Functioning range 11 - 16 V standby status 40 mA 100 mA PCB current-draw during transmission 300 mA during maximum 70 mA 600 mA Maximum current draw of +AUX 400 mA terminals... - Page 11 Installation and programming manual Table 7: LED signalling Status Num. Colour Signalling Slow flashing Fast flashing Operating Device Green Device initializing status operating Flash cycle followed by pause: • 1 flash: general battery fault No faults Fault • 2 flashes: telephone line fault present •...
-
Page 12: Chapter 3 Smartlink Functions
Telephone dialler Chapter 3 SMARTLINK FUNCTIONS Telephone line down management The devices that are to use the reserve line during PSTN line-down conditions must be connected to terminals 15 and 16. When the PSTN line is operating properly, terminals 15 and 16 are connected internally to 17 and 18. -
Page 13: Event Activations
Installation and programming manual This is an output whose status can be controlled (activated/ CONTROLLED OUTPUT deactivated) and used for other activations. An electrical input point used for the management/control of signals DOUBLE ZONE coming from two devices. The terminal the zone is connected to must be configured as a “double input zone". -
Page 14: Command And Shortcuts
Telephone dialler Command and Shortcuts A command is a request from the end-user or a device to the SmartLink to carry out one or more of its functions. During the programming phase of the SmartLink you can arrange SHORTCUTS the commands into shortcuts. A shortcut is a single request that activates a series of successive functions. - Page 15 Installation and programming manual 3-6-1 Commands over the GSM network Up to 200 actions can be programmed to activate in response to remote GSM commands. Each of the actions can be triggered by either an SMS command or a Caller ID command or both. Users who wish to activate a command via SMS text must enter the COMMAND VIA SMS command details as follows:...
-
Page 16: Easyscan
Telephone dialler SmartLink recognizes Caller activates programmed actions. Note The remaining credit control feature is subject to temporary or even permanent unavailability caused by changes in the implementation of the methods used by the GSM/GPRS service provider. INIM provides device programming functions which may be capable of restoring this feature, by means of manual changes to the respective parameter settings. -
Page 17: Chapter 4 Installation
Installation and programming manual Chapter 4 INSTALLATION Wall-mounting The SmartLink should be located in a hidden place that cannot be accessed by unauthorized persons. ATTENTION! Verify that the GSM network signal of the selected provider is adequate. Do not install the device near metal objects. Ensure that there are at least two metres between the SmartLink and other electrical devices. -
Page 18: Mounting The Antenna
Telephone dialler The backup-battery connection must be achieved through the BACKUP BATTERY connector on the PCB (table 2, C) and the specific wire (included) which has a faston terminal at each end. ATTENTION! Ensure that battery polarity is correct: - black wire = negative - red wire = positive The backup battery is the secondary power source which powers the SmartLink and the devices connected to the outputs during mains... -
Page 19: Telephone Connections
Installation and programming manual Telephone connections Connect the PSTN line to terminals 17 and 18 (table 4 "Terminals on the terminal board"). Note The SmartLink is protected against damage caused by electrical storms. Connect the telephone equipment (or other device/apparatus that requires a reserve telephone line) to terminals 15 and 16. -
Page 20: Pc Connection
Telephone dialler PC Connection It is necessary to connect to a PC equipped with the SmartLeague software programme (refer paragraph Using SmartLeague software programme) for programming, layout and monitoring of the system the SmartLink is connected to. This connection can be achieved as follows: •... -
Page 21: Wiring And Balancing Alarm Detectors
Installation and programming manual Wiring and balancing alarm detectors The wiring and respective balancing method depend on the type of Gold White Orange detector you are installing, and the level of protection you wish to achieve. The detectors can be powered through: •... - Page 22 Telephone dialler 4-8-2 Single balancing Single zones can discriminate 3 conditions on the entire terminal: • standby • alarm • tamper (short-circuit) For each of these, the SmartLink reads different resistance values on the terminal, expressed below in Ohm. Zone 6K8Ohm 1/4W >...
- Page 23 Installation and programming manual 4-8-4 Double-Zone balancing Double zones without EOL resistor can discriminate 5 conditions on the entire terminal: • standby on both zones • alarm on zone 1 and standby on zone 2 • alarm on zone 2 and standby on zone 1 3K9Ohm •...
-
Page 24: Connecting The Outputs
Telephone dialler Connecting the outputs It is possible to set up an output (or several outputs) to activate in response to any of the events managed by the SmartLink. All the outputs are open-collector outputs capable of sinking a maximum current of 150 mA. The wiring diagram below illustrates a series of typical connections for the activation of a load when a Normally Open output closes to GND. -
Page 25: Chapter 5 First Power Up
Installation and programming manual Chapter 5 FIRST POWER UP In order to allow the system to perform an accurate auto-enrolling operation on "First power-up", work carefully through the following steps. ATTENTION! When wiring the system, be careful not to allow any form of power (mains 230V or battery) to reach the SmartLink or its peripherals. - Page 26 Telephone dialler Note The results obtained by the “Easyscan” regarding the GSM signals should not be considered constant throughout time, as they are subject to changes relating to the GSM service. Therefore, you should carry out the Easyscan operation at regular intervals or, at least, when the system is undergoing maintenance.
-
Page 27: Smartlink Project Development And Programming
Installation and programming manual Chapter 6 SMARTLINK PROJECT DEVELOPMENT AND PROGRAMMING The SmartLink system has been designed to be programmed via PC. All functions relating to project development and programming can be accessed through the software programme. You will need: •... -
Page 28: Using The Software Programme
Telephone dialler Table 11: SmartLeague software programme - homepage Open solutions bar List of recent solutions - which will allow you create new solutions or open existing solutions Documentation installed on the computer. Area dedicated to help and service via Internet. -
Page 29: Programming Via The Software
Installation and programming manual Table 12: SmartLeague - solutions The freshly opened template remains in the forefront whilst the other open template and the Homepage remain in the background. Installation tree structure. Section in question. Programming template of the component to be programmed (selected from the tree structure). -
Page 30: Maintenance And Monitoring
Telephone dialler Select the part of the system you wish to programme from the tree menu on the left. Set the parameters in the “Parameters settings” template on the right. To download the data to the SmartLink, click-on the key. During data upload/download operations: •... - Page 31 Installation and programming manual The section provides two sub-sections which can be opened by clicking on the header label: • System monitoring - for real-time monitoring of the system • Easyscan - for easy scanning of GSM network signal reception Refer to the SmartLeague software programme manual for the descriptions of the sections and the parameters being viewed.
-
Page 32: Appendix A Events
Telephone dialler Appendix A EVENTS An event is an operative status recognized by the SmartLink; each event is characterized by an activation (when the event occurs) and a restoral (when the event ends). The following table shows the events the control panel recognizes, the number of events for each type, the trigger and restoral method of each event and whether the event is a pulse event (pulse events restore automatically soon after activation). - Page 33 Installation and programming manual Table 13: Event type Name Occurs when... Restores when ... Number of Pulse events events Deep discharge Battery electrically disconnected Battery connected shutdown due to deep discharge The primary 230V a.c. power The primary 230V a.c. power Mains failure source is not present (blackout) source restores...
-
Page 34: Appendix B Order Codes
Telephone dialler Appendix B ORDER CODES Please quote the following order codes when ordering items from the INIM Electronics product range: Access Codes Product description DCMIINE0SLEAGUE SmartLeague software installation, configuration and programming manual DCMIINE0SLINKA SmartLink Advanced installation manual GSM-ANT 100B... -
Page 35: Notes
Installation and programming manual Notes... - Page 36 Telephone dialler ISO 9001:2008 Registered Company Azienda certifi cata ISO 9001 : 2008 via Fosso Antico Loc. Centobuchi 63076 Monteprandone (AP) ITALY Tel. +39 0735 705007 _ Fax +39 0735 704912 info@inim.biz _ www.inim.biz...
