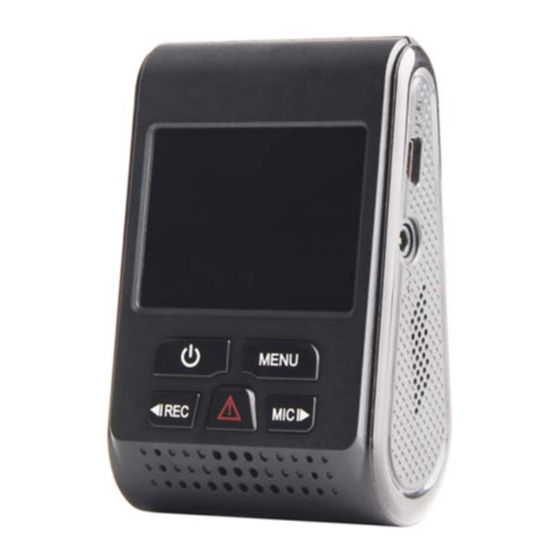

- Page 1 Manual zBlackBox‐HD4 PROFFESINAL DASH CAM P a g e 1 | 14 ...
- Page 2 Interface Contents Page 3 Interface Page 4 In the box Installation Page 5 - 6 Operation Page 7 – 9 Setting Page 10 – 11 Page 12 Playback Page 13 Contact Us 1 – Power 2 – Rec/Left...
- Page 3 In the Box Installation Slide either the GPS mount (sold separately) or the non-GPS mount into the slot on the back of the camera and push it up. (NOTE: GPS data can only be recorded while using the GPS mount. The...
- Page 4 Installation Operation LED Indicator The LED indicator will change color to show different modes. When the Power to the camera is on but it is not recording, the LED will be RED. When it is recording the LED will flash green. the LED will also flash...
- Page 5 Operation Screen Info Starting Up Insert the MicroSD (Sold Separately) card into the SD card slot. Connect the camera to your vehicle’s 12v power socket. When you start your vehicle, the camera will automatically turn on. When you turn your vehicle off the camera will automatically shut off.
- Page 6 Set the current Date & Time Date/Time Settings Set your current Time Zone Time Zone Set Display Language Language Press the MENU button while in STANDBY MODE to open the SETTINGS You can set the LED OFF or ON LED MENU. The settings available are as follows. Toggle Menu sound on and off Beep Sound Set Light Frequency (Continental US Set to 60HZ) Frequency Complete erase all files from the memory card Format Format Setting video resolution of footage recorded, Resolution Warning ‐ Set a monthly reminder to format the memory card 2560x1440P 30fps, 2304x1296P 30fps, 1920x1080P 60fps, ...
- Page 7 Inside are three folders. MOVIE - This folder contains your video clips EMR - This folder contains clips saved in EMERGENCY MODE For additional assistance contact Zetronix Tech Support PICTURE - This folder holds pictures taken manually By Phone (877) 644-7592...
- Page 8 Zetronix Corporation (“Zetronix”) warrants this product against defects in material or workmanship as follows: PRODUCT: Zetronix will repair this product with new or refurbished parts, free of charge, for a period of one (1) year from the date of original purchase in the event of a defect in materials or workmanship.
