Summary of Contents for GSS Timed Media Player 1
- Page 1 MENÜ Timed Media Player 1 Default access data (HTML + SFTP): IP address (DHCP) —> display User: admin Password: geheim...
-
Page 2: Table Of Contents
o n t e n t s 1 Safety regulations and notes ................ 3 2 General information ..................5 Packing contents ................5 Meaning of the symbols used ............5 Technical data ................5 Description ...................6 General ..................6 User .....................7 Administrator access ..............7 Guest access ................7 3 Assembly .................... -
Page 3: Safety Regulations And Notes
a f e t y r e g u l a t i o n s a n d n o t e s • If the PSU needs to be replaced, only use OEM PSU. • Before you disconnect the power supply, the device must be shut down (page 11)! •... - Page 4 Prior permission from the copyright owners may be required for certain public performances and certain commercial uses. You agree to indemnify and hold harmless GSS Grundig Systems GmbH and its Licensors against any breach by You of applicable copyright restrictions in connection with your use of the device.
-
Page 5: General Information
e n e r a l i n f o r m a t i o n 2.1 P aC k i n g C o n t e n t s 1 TMP 1 1 Plug-in power supply unit 1 HDMI cable 1 Brief assembly instructions 2.2 m... -
Page 6: Description
General External plug-in power supply unit ..... 100…240 V ~, 50/60 Hz Operating voltage ..............DC +5V Power consumption ................ 15 W Dimensions (19“ / 1HU) ....43 mm (H), 480 mm (W), 203 mm (D) Ambient temperature ..............0 - 50 °C 2.4 d e s C r i P t i o n With the Mediaplayer, video files, images (jpg or png) and PDF files stored on... - Page 7 If the configuration interface is con- nected to the Internet, after the initial setup, you can get worldwide ac- cess to the station via an OpenVPN MENÜ connection (option) – by PC, tablet OpenVPN or smart phone with Internet access. Server —>...
-
Page 8: Assembly

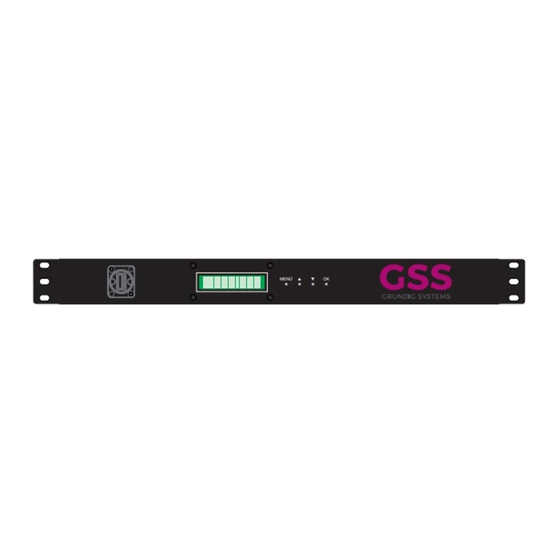

s s e m b l y 3.1 d e v i C e ov e rv i e w MENÜ DC + 5V / 3A Display Control buttons USB 3.0 socket DC socket 2.1 / 5.6 mm ; +5V HDMI output Configuration/LAN interface - 8 -... - Page 9 3.2 i n s ta l l i n g t h e d e v i C e – The device is meant exclusively for use in rooms with normal operating conditions (temperature, humidity, radiation) such as air-conditioned server rooms, offices and publicly accessible rooms with similar conditions.
- Page 10 3.3 C o n n e C t i n g t h e d e v i C e ow e r u P P ly • Connect the enclosed plug-in power supply unit (PSU) to the DC socket •...
-
Page 11: Configuration
o n f i g u r a t i o n DHCP (Dynamic Host Configuration Protocol) is activated at the factory (Sys- tem > Network menu; page 21). If a DHCP server is active in your network, an IP address is assigned to the device and shown in the display. e.g.: —>... -
Page 12: Perform Changes
4.2 C o n f i g u r at i o n • Connect a PC to the LAN network. —> The PC and the device must be in the same network/IP address range! Cookies must be accepted and JavaScript must be activated. Use the latest browser versions. - Page 13 e n u h e a d e r m e n u f o ot e r —> This information is displayed in all menus. The Scheduler button takes you from all other menus back to the media player settings. This button takes you to the File Manager (page 19).
- Page 14 C h e d u l e r & s e d i a P l ay e r C h e d u l e r Here you see an overview of all created tasks/streams - divided into the respective weekdays. The tasks are sorted by time for each day.
- Page 15 The Stream column indicates whether a Task/Stream is enabled (on) or disabled (off). The Source column displays the contents of the Tasks/Streams. The start time of the media file is displayed here. The end time is calcu- lated from the start time + the duration Displays the playback time/duration of the media file.
- Page 16 / e a s k d i t a s k With the Mediaplayer, video files, images and PDF files stored on the internal hard disk can be played back on schedule. A directory can also be selected for a "slide show" of images. All images contained in this directory will then be played back.
- Page 17 —> Please note that only content in the mediafiles directory can be se- lected. The selection of contents in subdirectories is not possible. —> For images (or directories with images) and multi-page PDF files, you can select the display duration and an audio file to play during the slide show.
- Page 18 Here you make settings for the end of a task: – "Loop playback" ( – "Intermission fillers" ( If the Loop function is activated (ON), a task is repeated until a new task is started. If the Loop function is NOT activated (OFF), you can select images/im- age directories as "intermission fillers"...
- Page 19 i l e a n ag e r Small media files can be transferred to the internal hard disk via the file man- ager. The maximum file size depends on the available RAM. —> The available RAM is displayed in the footer: —>...
- Page 20 Use the corresponding delete button to remove media files/subdirecto- ries from the device. Here you can move from subdirectories to the parent directory. Here you can create a new directory. • Enter the directory name in the input field and click Here you can transfer media files to the internal hard disk.
- Page 21 ys t e m m e n u s e t wo r k The Hostname allows you to access the user interface without entering the IP address. Enter the Hostname followed by ".local" in the browser (e.g. hdmiplayer.local). If you oper- ate several devices in the network, you must enter different names here.
- Page 22 vPn (o P e n P t i o n —> The device is available with and without OpenVPN access. OpenVPN not activated: —> For a subsequent activation you must send in the device. OpenVPN activated: Via our VPN server you can get worldwide access to the device by an OpenVPN connection.
-
Page 23: Time Setting
i m e s e t t i n g Here you can set the system time of the device. For the automatic time setting, select the Timezone that corresponds to your location. With the NTP switch you can switch the automatic time setting on or off. -
Page 24: Firmware
Update via download file: • Via the button Upload software update you start the firmware update. • Select the new firmware *.gss file in the appearing pop-up menu. —> Therefor the firmware must be previously stored on your PC. The current firmware version can be found at "www.mygss.eu". - Page 25 e C u r i t y —> The user gast has no access to this menu. d m i n i s t r ato r aCC es s Herein replace for the user admin the default password geheim by a password of your choice.
-
Page 26: Reboot The System
e b o ot t h e s ys t e m • Select menu item System > Reboot System. Confirm the security prompt —> The device restarts. h u t d ow n t h e s ys t e m —>... -
Page 27: Appendix
P P e n d i x r a n s f e r m e d i a data t h e d e v i C e Large media files must be transferred to the internal hard disk via SFTP ac- cess. - Page 28 Declaration of CE conformity GSS Grundig Systems GmbH • Beuthener Straße 43 • D-90471 Nuremberg Phone: +49 (0) 911 / 633 240 0 • Fax: +49 (0) 911 / 633 240 98 www.gss.de/en • info@gss.de Service: Phone: +49 (0) 911/ 633 240 90 • service@gss.de Alterations reserved.
