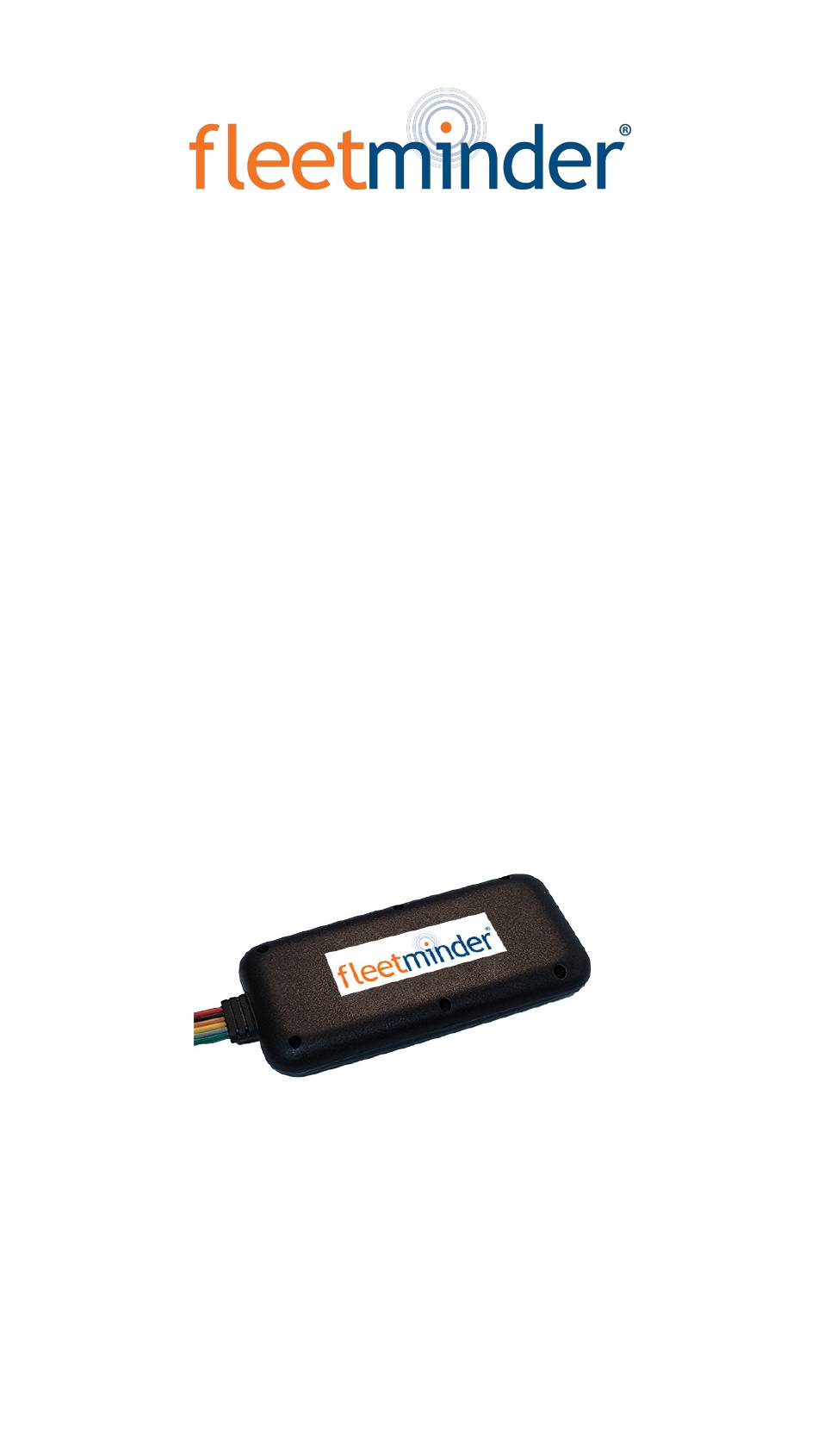

- Page 1 Motorcycle/Vehicle Tracker GPS+GSM/GPRS/LTE+SMS User Manual MODEL: FM-MT4G...
-
Page 2: Table Of Contents
CONTENTS Ⅰ. Product Features ....... 5 Ⅱ. Components and Accessories ... 7 Ⅲ. SIM card Installation ....9 Ⅳ. Device Installation ....10 4.1 Install device ......10 4.2 device wiring definition ..12 4.3 Relay wiring ......14 Ⅴ. Power ........15 5.1 Power on ...... - Page 3 7.2 Vibration Alarm ....18 7.3 Collision / falling Alarm ..18 7.4 Speed Alarm ......18 7.5 Shift Alarm......19 7.6 Geo-fence Alarm ....19 7.7 Power disconnect Alarm ..19 7.8 Low battery Alarm ....19 Ⅷ. Device Setting ......20 Ⅸ.
- Page 4 Please read this manual carefully to install and operate device properly. This user manual is for reference only. With FM-MT4G GPS Vehicle Tracker, you can monitor your vehicle by GPS satellite positioning system, 4G communication and Internet, a real-time remote location and...
-
Page 5: Ⅰ. Product Features
Ⅰ. Product Features ■ Supports GSM/LTE, include 19 bands, universal in the world. ■ Super Wide Input Voltage：7-72V DC. ■ GPS precise positioning, Support A-GPS, uploaded by LTE/GPRS regularly, real-time tracking and history track playback. ■ ACC status detection ■ Support Temperature senor, SOS button, External battery(Choose one of the three) ■... - Page 6 Basic Specifications Voltage 12/ 24/ 36/ 48/ 60/ 72 VDC Work Current GPRS(245-265mA); LTE(260mA) Standby Current IDLE(2mA@12V) GPS Accuracy 5-15m LBS Accuracy >100m GPS Band 1575MHz GSM Band 850/900/1800/1900MHz Global LTE Band bands(1,2,3,4,5,8,12,13,17,18,1 9,20,25,26,28 and 39) ± 0.5℃ Temperature-Sensor Accuracy -30℃~80℃...
-
Page 7: Ⅱ. Components And Accessories
Ⅱ. Components and Accessories ■ Components -Top Front- (Towards sky) -Bottom -... - Page 8 ■ Accessories Power Cable(Default) Relay(Optional) Temperature Sensor(Optional) SOS(Optional) External Battery(Optional) Relay for remotely cut engine, Temperature sensor used for monitoring temperature, SOS button used for help, External battery used for power supply, (Temperature senor, SOS button, External battery can be only chose one of the three).
-
Page 9: Ⅲ. Sim Card Installation
Ⅲ. SIM Card Installation Open the packing case, check if device is OK and accessories are intact. You need a suitable SIM card for using device, contact your dealer if any question. Open SIM Card cover Insert SIM Card... -
Page 10: Ⅳ. Device Installation
Press cover and close Note: Please cut off the power before installing or ● uninstalling SIM card. SIM card should have GPRS/LTE function, check ● network through operator. SIM card should have Caller Identification ● function for telephone querying. If you enable the PIN code of the SIM card, ●... - Page 11 Please make sure to install device with this side upward, and use wide strong double-sided adhesive tape to fix it. 4.1.2 Installation Notice Hide device properly inside the vehicle body in ● order to avoid damages. Keep device away from RF emission sources ●...
-
Page 12: Device Wiring Definition
4.2 Device wiring definition Total schematic wiring device 4.2.1 Power cables and interface The standard input voltage of device is 7V-72VDC, so please use the original power cables, the red cable is positive and the black cable is negative; Please ground negative pole separately or ground it to ground connection, not to any other ground. - Page 13 ignition status of vehicle; the ACC cable can also be connected directly to the positive pole of the vehicle power, then the data logs will show that the vehicle is always on (this is not recommended). Connect the 4# cable (yellow cable) to the 85 device (with small yellow cable) of the relay.
-
Page 14: Relay Wiring
4.3 Relay wiring Relay wiring diagram shows how to wire the relay to control the fuel pump: 4.3.1 Connect the 86 port to the positive pole of the vehicle power (+12V/+24V), connect the 85 port to the 4# cable of device. 4.3.2 Cut off the positive pole of the fuel pump, next serial connect the positive pole to the 87a port of the relay, and connect another pole to 30 port,... -
Page 15: Ⅴ. Power
Notice: Be sure the voltage of the vehicle power should match up to the working voltage of relay, or relay will be damaged. Ⅴ. Power On / Off 5.1 Power on Power on: insert a valid SIM card and wire all the cables, device will power on. -
Page 16: Power Off
Login the service platform and enter your ID and password to check the position of device. https://tracking.fleetminder.com.au 6.2.2 Smart phone applications You can use a smart phone to check device’s position. To download the app, search for "Fleetminder Fleet Management" in the Google Playstore or Apple Appstore. -
Page 17: Inquiry By Sms
6.2 Inquiry by SMS You can write a positioning SMS sending to device to inquiry position, device will reply position SMS or map link. The SMS commands please refer to the Operation Commands 6.3 Cut Engine/Restore 6.3.1 Cut off fuel circuits Server(GPRS/LTE) or Manager number (SMS) can send cut-fuel-circuit commands to device when needed. -
Page 18: Vibration Alarm
SOS Alarm Conditions: When SOS button is long pressed for 3 seconds. Note: SOS button must be installed (optional accessory), and SOS administrator number must be set. When the SOS alarm occurs, terminal will dial the set SOS administrator number 3 times until gets through. -
Page 19: Shift Alarm
setting speed) Note: You need to set the low speed limit and the high speed, and an over-speed setting to cut engine 7.5 Shift Alarm Conditions: When vehicle occurs a setting shift in the Flameout status. Note: Only valid in flameout state and vehicle occurs a setting shift distance. -
Page 20: Ⅷ. Device Setting
Please refer to <Operation Commands> Ⅸ. Trouble shooting 9.1 Cannot connect platform Device cannot connect to the Fleetminder server when installed at the first time. Please check device: If power cables are wired correctly? Pay attention to not connect them to controlling cables of vehicle. -
Page 21: No Positioned
you can check SIM card following next steps: Call SIM card of device and check if you can hear connecting ring. Check if vehicle is in the area where there is no GSM/LTE signal. Check if one device or all devices are offline in the area . -
Page 22: Position Drift
electromagnetic wave absorption material (such as metal blocks), special attention should be paid if there is metal thermal insulation layer or heating layer on the front windshield, so that the position accuracy will decline. 9.4 Position drift Serious position drift will be found in places where GPS signal is poor. -
Page 23: Ⅹ. Warranty Terms
Ph: +61 08 9383 7833 Email: admin@neltronics.com.au INDEMNITY: YOU AGREE TO DEFEND, INDEMNIFY AND HOLD HARMLESS FLEETMINDER AND ITS SUBSIDIARIES AND AFFILIATES FROM AND AGAINST ANY AND ALL CLAIMS, PROCEEDINGS, INJURIES, LIABILITIES, LOSSES, COSTS AND EXPENSES (INCLUDING REASONABLE LEGAL FEES),... - Page 24 AND ONLY TO YOU THAT THE ON FLEETMINDER DEVICE WILL BE FREE FROM DEFECTS IN MATERIALS AND WORKMANSHIP FOR ONE (1) YEAR FROM THE DATE OF YOUR PURCHASE OF THE ON FLEETMINDER DEVICE (UNLESS A LONGER WARRANTY PERIOD IS REQUIRED BY LAW).
- Page 25 VEHICLE OR PROPERTY, OR THE PERSON OR PROPERTY OF OTHERS, MAY BE SUBJECT TO INJURY OR LOSS IF SUCH AN EVENT OCCURS. THE ALLOCATION OF SUCH RISK REMAINS WITH YOU, NOT FLEETMINDER. OTHER THAN THE ABOVE PRODUCT WARRANTY FOR THE FLEETMINDER DEVICE, FLEETMINDER AND ITS SUPPLIERS...
- Page 26 AND TYPICALLY FORESEEABLE IN SUCH CASE. SHOULD THE CLAIM FOR DAMAGES BE BASED ON WILFUL OR GROSSLY NEGLIGENT BREACH OF CONTRACTUAL DUTY OR OBLIGATION ON THE PART OF FLEETMINDER, THE PRECLUSION AND LIMITATION OF LIABILITY MENTIONED IN THE PRECEDING SENTENCES WILL NOT APPLY. THE...
