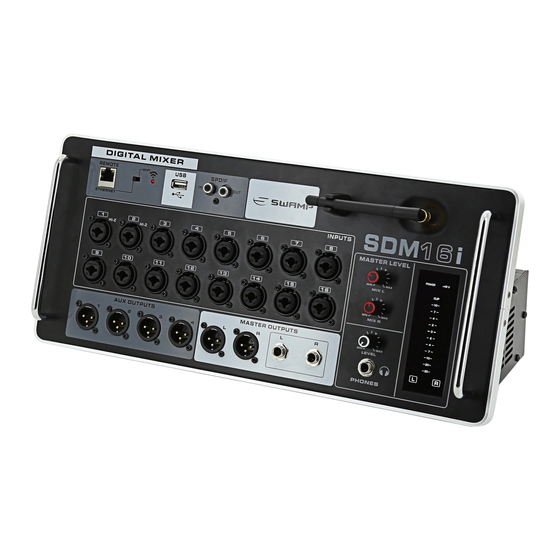

16 Input Digital Mixing Console
A mixer for the modern age, the SDM16i includes software that connects via Wi-Fi or Ethernet and can
be controlled by any device on any web browser with no app to download and up to 10 simultaneous
users. Intuitive mixing software with Parametric EQ, Compression, Noise Gate, 2 FX channels. Change
the way you mix today.



Product
SDM16i

Manual

Digital Wifi Mixer



Advertisement

loading
Need help?

Need help?

Do you have a question about the SDM16i and is the answer not in the manual?

Questions and answers

Summary of Contents for swamp SDM16i

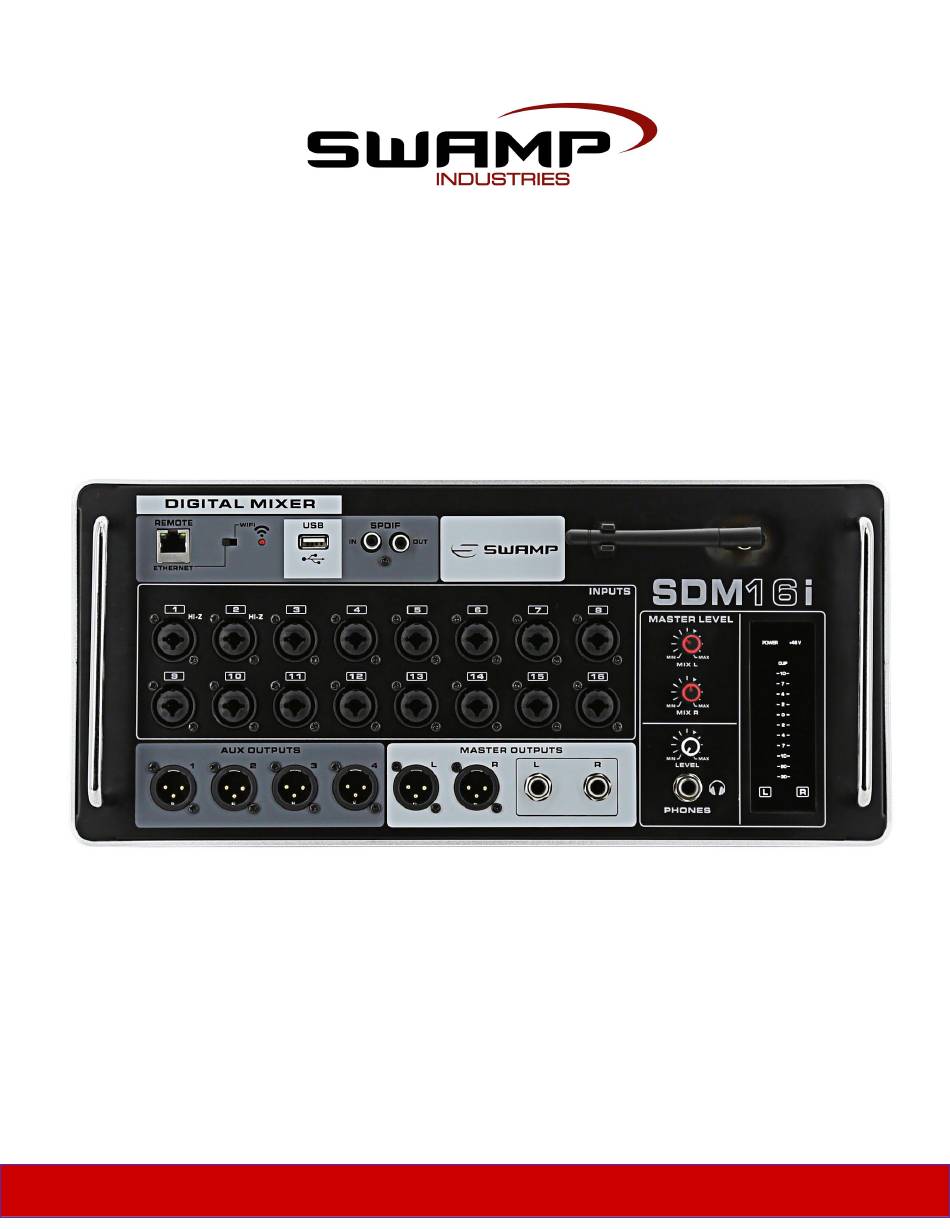

  • Page 1 16 Input Digital Mixing Console  A mixer for the modern age, the SDM16i includes software that connects via Wi-Fi or Ethernet and can  be controlled by any device on any web browser with no app to download and up to 10 simultaneous ...
  • Page 2 SDM16i Product Manual      Overview:        1. Inputs 1 to 2 - Combo XLR / ¼” TS Jack - Hi-Z (¼”), Balanced (XLR)  The first channels have Hi-Z ¼” inputs designed for connecting guitars directly with a guitar ...
  • Page 3 SDM16i Product Manual    and often sent to foldback speakers, and used to send separate mix and crossover EQ setting  to subwoofers. Select Pre or Post fader and apply parametric EQ and compression/limiting for  each AUX channel.    3. Main Outputs - XLR and ¼” TRS ...
  • Page 4: Hookup Example

    SDM16i Product Manual    output is of the main left/right channels.    10. Antenna  A fixed antenna that can we raised when in being used in Wi-Fi mode or collapsed and locked  in when not in use.    11. 48V Phantom Power LED ...
  • Page 5 By using a passive DI box such as the SWAMP DB-1, a transformer is  adding to the signal removing ground loops while also converting the signal to balanced, mic ...
  • Page 6: Control Software

    Utilising ​ H TML5 technology​ , any device with a modern web browser can use the SDM16i control  software. That means and smartphones, tablet, laptop or desktop, whether they are Windows, MAC or  Linux, all simultaneously with up to 10 users at a time.  ...
  • Page 7 SDM16i Product Manual    1. Select Display Format Style  iPad display format is designed for larger screens, and has a ‘split screen’ setup where faders are always  viewable on the bottom half of the screen. iPhone format is for smaller screens, where there is no split ...
  • Page 8 SDM16i Product Manual      3. Touch CH9-16 to view the channel strips for channels 9 to 16  On each channel strip (1 to 16) the user has the ability to touch on each of these action buttons; Gain,  Phantom Power, Polarity, Channel Linking, Noise Gate, Compressor, Sends, Panning (Left / Right), Mute, ...
  • Page 9 SDM16i Product Manual      4. Touch BLUE ARROW button to expand or collapse the channel faders  To allow more precise fader control, toggle the expand/collapse button.      Phone Display Format:   5. Phone Display Version - Touch CH1-8 to view the channel strips for channels 1 to 8 ...
  • Page 10 SDM16i Product Manual    suited to smaller touch screen devices. Options are down the right-hand side and click on the channel  name/number to enter edit mode.      Phone Display Format:   6. Phone Display Version - Touch CH on top bar to view channels selector on side-bar ...
  • Page 11 SDM16i Product Manual      Channel Strips Options     7. Touch EDIT on the top menu to enter edit mode  The channel currently selected channel is displayed at the top-right of page, touch on the fader section  to change channel. Adjust the gain with the fader and select other options including colour coding for ...
  • Page 12 SDM16i Product Manual        Phone Display Format:   8. Touch SENDS to adjust the channel volume sent to AUX and FX sends  Control the volume of each channel, sent to each of the 4 AUX outputs and 2 FX processors. On/Off ...
  • Page 13 SDM16i Product Manual        example iphone format image:   9. Touch EQ to adjust the Parametric EQ settings for each channel  Use one of the factory preset settings, or modify each of the 4 parametric EQ points and HPF and LPF to ...
  • Page 14 SDM16i Product Manual          example iphone format image:   10. Touch DYN to adjust the Dynamics settings for each channel  Use one of the factory preset settings, or modify the Noise Gate and Compression to suit your ...
  • Page 15 SDM16i Product Manual    then adjusted with faders, and a final gain fader usually to provide ‘make up gain’ for heavily  compressed signals.      11. Touch OUT to adjust the Output channel options  Touch on any of the faders to select the output channel (MASTER selected above). EQ and Dynamics can ...
  • Page 16 SDM16i Product Manual      12. Touch METER to view the signal levels  Touching METER will display the signal levels for every channel in the top half of the display section.  Channel faders displayed at the button, correspond the channel strip selection from top menu (i.e. OUT ...
  • Page 17 SDM16i Product Manual    13. Touch AUX1 to change the Fader displayed on right-hand side-bar  The 8 buttons displayed on the right allow the user to easily change the output fader that is displayed  on the very right of the channel strip. ...
  • Page 18 SDM16i Product Manual      15. Touch FX to adjust the Effects settings  Select any channel, then touch on the FX button from the top menu to load the effects processor  options for that channel (MASTER channel selected above). Select whether to use the FX1 or FX2 effects ...
  • Page 19 SDM16i Product Manual      16. Touch PRESETS to select factory Preset Effects  Similar to EQ and Dynamics, a factory preset options can be selected modified and saved as User  setting, for later recall. Above screenshot shows a range of the factory Reverb settings. ...
  • Page 20 Likewise, venue using the SDM16i as an in house mixer can save scenes for different types of  acts, to give some consistency to sound and prevent musicians from playing too loudly of harshly. ...
  • Page 21 SDM16i Product Manual      19. Touch RECORD to adjust playback and recording options through USB stick  View the audio files on the USB stick and select tracks for playback. Also hit the record button to start  recording the master left and right outputs as a stereo track to the USB stick. ...
  • Page 22 SDM16i Product Manual    20. Touch SETTINGS to adjust main user options and preferences  Options include adjusting SOLO monitoring type from Pre to Post fader, the main output to only send if  SOLO selected and even option to monitor the reverb signals exclusively. Options to clear/reset all ...
  • Page 23 SDM16i Product Manual      22. Touch CONFIG to adjust network settings  Selecting the config option will direct to this Network State page where current network information is  displayed.      23   ...
  • Page 24 SDM16i Product Manual      23. Touch Wi-Fi Configuration to view/adjust Wi-Fi settings  On the page it is possible to change the SSID or Wi-Fi network name, and also to add password  protection using the WPA2 security access option.   ...
  • Page 25 SDM16i Product Manual      24. Touch NETWORK to view/adjust network LAN settings  Configure the LAN network settings, including ability to change the IP address from the default,  allowing the ability to secure the device from unwanted access.     ...
  • Page 26: Software Notes

      Connectivity:  The SDM16i has an internal Wi-Fi router capable of outputting a hotspot that any Wi-FI  enabled device can connect to. It is also equipped with an Ethernet port for connecting to an  external router, then allowing any device connected to the router to access the SDM16i ...
  • Page 27 Wi-Fi networks pop-up, and where cellular  data traffic is high. The SDM16i has the ability to change Wi-Fi channel (default is 3), to help  alleviate this issue. Though for professional mixing applications requiring constant access to ...
  • Page 28: Rear Panel

    SDM16i Product Manual    the network is ideal for having a reliable device, not affected by wireless signals and battery  power, that being constantly connected to the mixer easy staff usage in time critical  situations. Also, this setup will allow internet connection to be passed onto all devices, great ...
  • Page 29: Specifications

    SDM16i Product Manual    Specifications:    Processing    Number of processing channels  16 input channels, S/PDIF in and out, 1 stereo USB return  channel, 2 FX channels, 4 aux buses, main LR  Internal effects engines  2 true stereo  Signal processing ...
  • Page 30 SDM16i Product Manual    Connectors    Phones outputs  1 TRS  Ethernet  1 RJ45  USB port  Type A (Maximum current:500mA)      Mic Input Characteristics    Preamp design  Low Noise, High Gain APC Mic Pre  THD + noise  -20Dbfs @ 1kHz 0.0078% ...
  • Page 31 SDM16i Product Manual    Output Characteristics    Output impedance, XLR, bal.  100Ω  Output level, XLR, max.  +23 dBu  Output impedance, TRS, bal.  100Ω  Output level, TRS, nom./max.  +23 dBu  Equivalent noise  -121.16dBu      WLAN Module    Power  Switch-mode power supply ...
