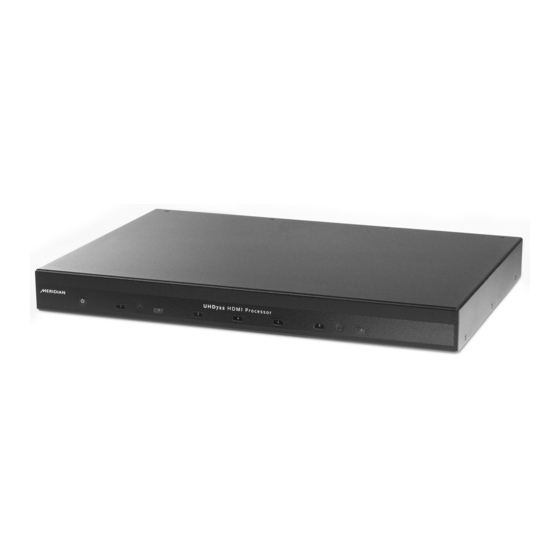

Meridian UHD722 Quick Start Manual

GETTING STARTED

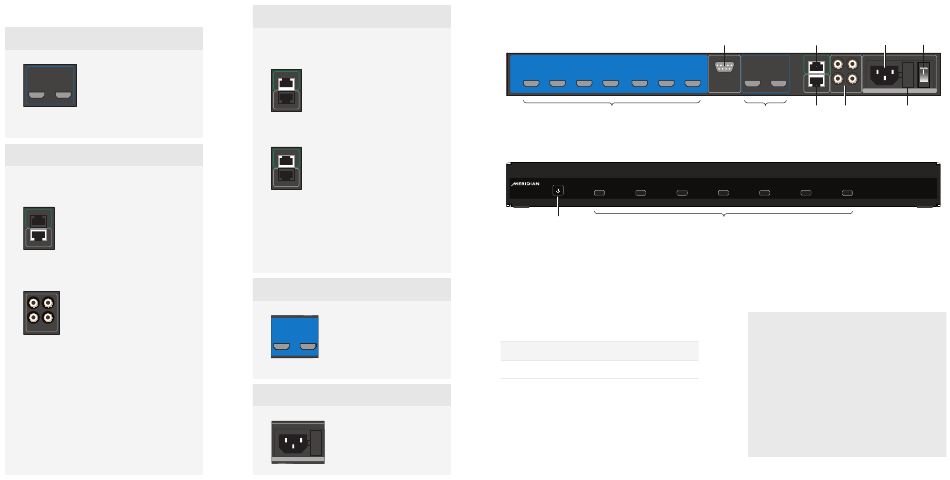

1. CoNNECT To ThE DISplAy DEvICE(S)
plug the hDMI cable which is
HDMI Output
HDMI Out 2 HDMI Out 1 feeding the primary display device
into the socket HDMI Out 1. If a
second display device is being used,
plug its hDMI cable into HDMI
Out 2. Note: only the HDMI Out 1
socket supports UhD.
2. CoNNECT ThE AUDIo oUTpUT
If the UHD722 is being used with a Surround Controller
which features an MMHR input on an RJ45-type socket:
Use a network-type cable to connect
SpeakerLink Out
from the MMHR output on the
UhD722 to the MMhR input on
the Surround Controller. A Meridian
MMHR Output
Speakerlink lead is ideal.
If the UHD722 is being used with a Surround Controller
with a Smartlink multichannel input on three RCA sockets:
Use three digital interconnect cables
1/2 5/6
to connect as follows:
Socket 1/2: Main l/R
3/4 7/8
Smartlink Socket 3/4: C/lFE
Socket 5/6: SURR
If the UHD722 is being used with a product with neither of
these:
Configure the UhD722 to use a
single co-axial digital connection
to a conventional digital audio
input. Refer to the User Guide for
information about how to do this.
3. CoNNECT CoMMS To oThER MERIDIAN pRoDUCTS
If you have other Meridian equipment in the system, and an
unused SpeakerLink input is available:
Use a network-type cable to connect
SpeakerLink Out
the SpeakerLink Out socket on the
UhD722 to the available Speakerlink
input.
MMHR Output
If there are no SpeakerLink inputs available on the other
products:
Use the Meridian Comms Adapter
SpeakerLink Out
supplied with the UhD722.
Connect to the adapter using a
MMHR Output network-type cable plugged into
the SpeakerLink Out socket on the
UhD722.
The adapter provides a DIN
connection so that a Meridian 5C
cable can be used to connect to
an appropriate Comms socket on
another Meridian product.
4. CoNNECT ThE hDMI SoURCES
plug the hDMI cables from the
HDMI Input
source products into the input
H5 VCR1 H4 Sat
sockets. By default, the input sockets
are mapped to sources as labelled on
the back panel of the UhD722; see
INPUTS GUIDE opposite.
5. powER Up ThE UhD722
Connect the supplied power cable
and switch on the power.
HDMI Input
H7 Disc H6 Game H5 VCR1 H4 Sat H3 Cable H2 TV
HDMI sources
1 2
Illuminated touch key
for standby/on
INpUTS GUIDE
The UhD722 is supplied with its hDMI inputs mapped to sources
as follows:
INpUt H1 H2 H3 H4 H5 H6 H7
SOURCe DVD TV Cable Sat VCR1 Game Disc
you can change the mappings to suit the system requirements using
a pC running the Meridian Configuration Application. For more
information see the User Guide.
SpeakerLink
RS232 output
RS232 HDMI Output SpeakerLink Out 1/2 5/6
H1 DVD HDMI Out 2 HDMI Out 1
3/4 7/8
MMHR Output Smartlink
HDMI MMHR Smartlink
video outputs output outputs
U H D 7 2 2 H D M I P r o c e s s o r
3 4 5 6 7
Illuminated touch keys
for source selection
FURThER INFoRMATIoN
To access the comprehensive
Meridian UhD722 User Guide,
FAQs, and further product support,
please visit:
meridian-audio.com/UHD722
Power On/Off
Fuse
