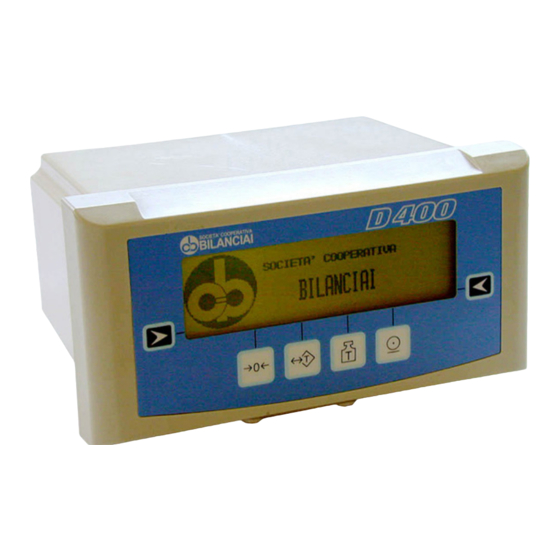

Bilanciai D400 Quick Start

D400
1.

Unpacking and Installation

A C F
B
D E
F A B
*
*
85-265 Vac
50/60 Hz
ON/OFF
*
Not included
2.
Remove terminal
from pack along with
the CD containing
the instructions.
Connect in
sequence.
A. Weighing plat-
form.
B. Any peripheral
equipment used
(e.g.: print-
ers, additional
displays, etc.).
C. Optional outputs
(e.g.: Ethernet,
WI-FI, I/O, BCD,
R232/422/485).
D. Analog output.
E. I/O connection.
F. Mains power
socket. Check
voltage value on
data plate.
I
Press button to
turn the terminal
on.
O
Press button to
turn the terminal
off.

Display and keyboard

Stable weight Center zero
Tare entered
Tare
via keyboard
Gross weight
Gross weight
in pounds
Minimum
Net weight
weight
Below-range
Weighing range
weight indica-
indication
tion
Within-range Above-range
weight indica- weight indica-
tion tion
Tare entry and
Weight reset
cancellation
Printing and/or
Tare entry and
transmission
display
start
I
on
Customizable
keys O
off
