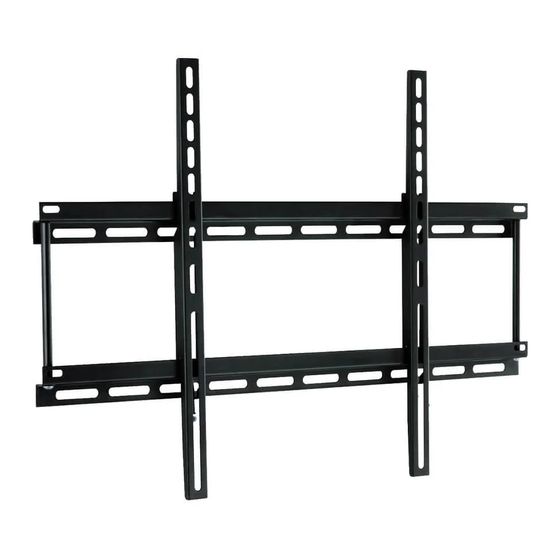

- Page 1 7225 Thank you for choosing OMP Global Style. AMERICAS EUROPE/MIDDLE EAST ASIA PACIFIC 200 Norfinch Drive Common Lane 1D Quadrant Dr, Toronto, Ontario, Setchey, Kings Lynn Gracefield, Canada Norfolk, PE33 0AT Lower Hutt, 5010 M3N 1Y4 England New Zealand Tel: 1-416-667-9909...
- Page 2 MOUNTING INSTALLATION INSTRUCTIONS COMPONENTS Designed for medium/large flat panels (40”-54”) to install to a vertical wall. Maximum load capacity: 90kgs (200lbs). CAUTION: If you do not understand these instructions, or have doubts about the safety of the 1x wall plate (A) 1x monitor bracket (B) 4x M4x35 screws (C) 4x M5x35 screws (D)
- Page 3 MOUNTING WALL PLATE STEP 1 Four installation choices are covered: wood stud, brick, solid concrete and concrete block. Wood stud installation: The wall plate (A) must be anchored to the two wood studs at a distance over 30.5cm (12”). Use a high quality wood stud finder, to locate two adjacent studs. We suggest using and awl, or thin nails, to confirm the location of the wood stud (as shown in fig.
- Page 4 SELECT THE CORRECT MOUNTING HARDWARE FOR YOUR STEP 2 TELEVISION CAUTION: Always make sure the television is unplugged, before threading any bolt into the back panel! First find the screw holes in the television’s back, then select the screws that fit the screw holes dimension. IMPORTANT: If you cannot find the hardware that fits your television, please contact your local hardware shop.
