OMP M7441 Installation Instructions Manual

OMP M7441 Installation Instructions Manual

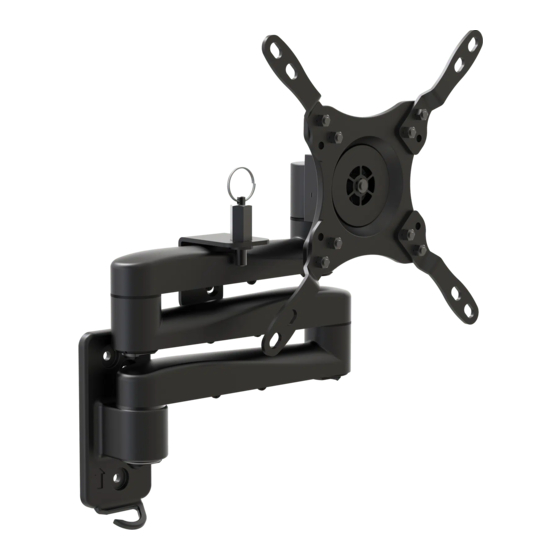

Cantilever tv wall mount with universal arm dual lock

Advertisement

Quick Links

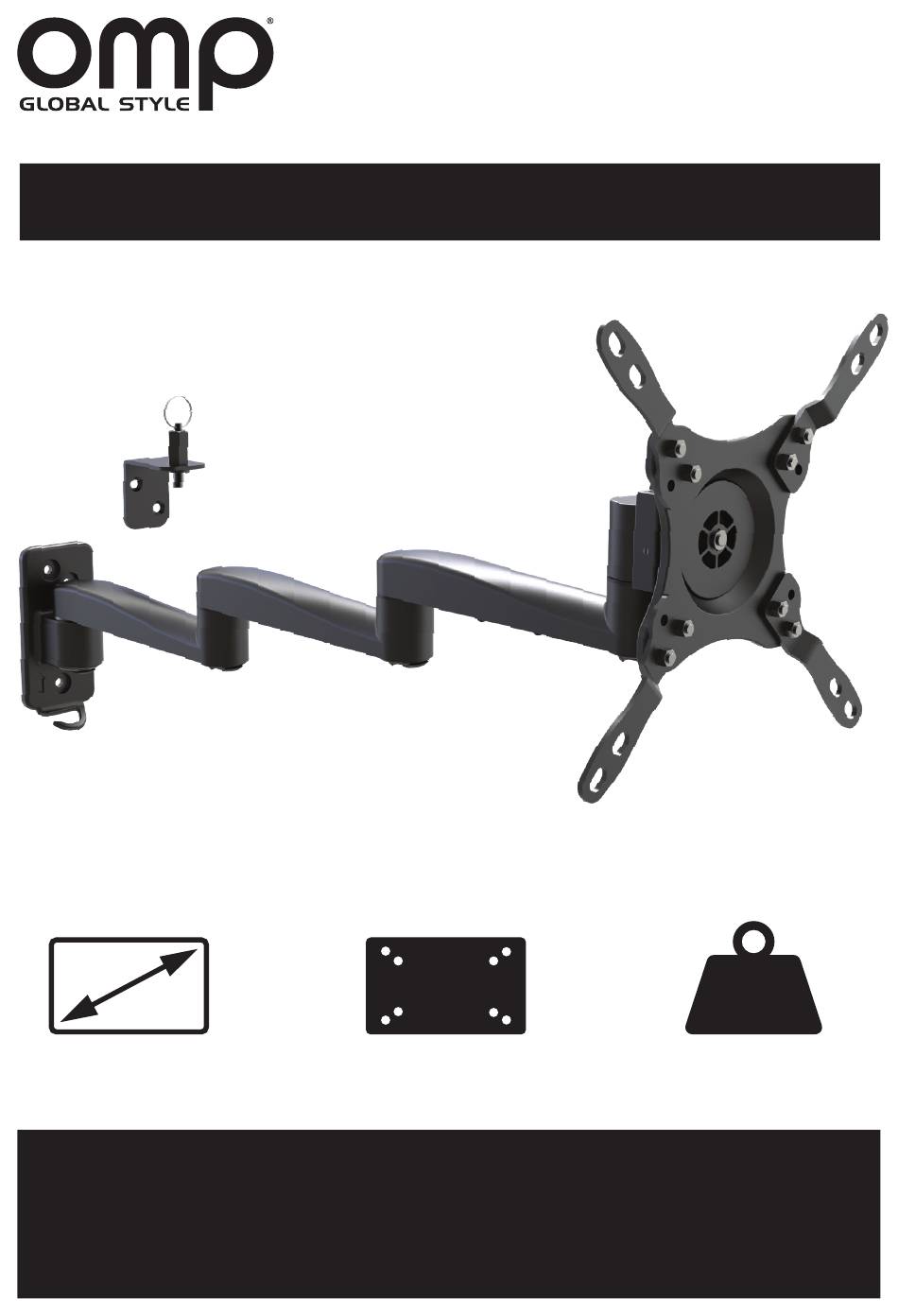

M7441 - CANTILEVER TV WALL
MOUNT WITH UNIVERSAL 3, 2
OR 1 ARM DUAL LOCK
INSTALLATION INSTRUCTIONS
V E S A
75 KG
KG
TV SCREEN SIZE
COMPLIANT
MAX WEIGHT
13 - 40"
75 x 75 to 200 x 200
15 KG
CAUTION!
DO NOT EXCEED RECOMMENDED TV SCREEN SIZE OR WEIGHT.
SERIOUS INJURY OR TV DAMAGE MAY OCCUR.
PLEASE READ INSTRUCTIONS CAREFULLY BEFORE INSTALLATION.

Advertisement

loading
Need help?

Need help?

Do you have a question about the M7441 and is the answer not in the manual?

Questions and answers

Summary of Contents for OMP M7441

  • Page 1 M7441 - CANTILEVER TV WALL MOUNT WITH UNIVERSAL 3, 2 OR 1 ARM DUAL LOCK INSTALLATION INSTRUCTIONS V E S A 75 KG TV SCREEN SIZE COMPLIANT MAX WEIGHT 13 - 40” 75 x 75 to 200 x 200 15 KG CAUTION! DO NOT EXCEED RECOMMENDED TV SCREEN SIZE OR WEIGHT.
  • Page 2: Safety Instructions - Please Read

    • Installers must verify that the supporting surface will safely support the combined weight of the equipment and all attached hardware and components. • OMP declines all responsibility in the event of incident or accident if they are due to non-observation of the installation instructions or installation error.
  • Page 3: Component Checklist

    COMPONENT CHECKLIST Important: Ensure that you have received all parts according to the component checklist prior to installation. If any parts are missing or faulty contact your local OMP distributor for a replacement. 1 x Wall 1 x 1 & 2 Arm...
  • Page 4 WARNING ! • Prior to installation ensure your desired installation location is fit for purpose. • We recommend installation to an internal panel. External walls may not offer the necessary strength and may be used to route plumbing and cables. If in doubt please consult vehicle manufacturer. •...
  • Page 5 REMOVING OR ADDING ARM/S Slide Catch Lift Arm To add arm/s, reverse instruction. FITTING VESA PLATE BRACKET AND ARM ASSEMBLY INTO WALL BRACKET Note: 3 Arm option shown as an example PAGE 5...
  • Page 6 Note: Before installing the lock assembly please take note of the position. X = Y reference Note - Position the Lock Plate close to the arm to ensure the lock pin has maximum engagement to hold arm. INSTALLING THE LOCK ASSEMBLY - FOR 3 ARMS Centre Spring Lock (X=Y)
  • Page 7 INSTALLING THE LOCK ASSEMBLY - FOR 2 ARMS Centre Spring Lock (X=Y) Loosen Lock Plate 2. Fold the arms to make the 3. Position the Lock Plate 1. Remove the plug. arms parallel with the wall. making sure its central. (See opposite page above).
  • Page 8 USING THE ASSEMBLY LOCK Note: 3 arm option 1. Pull to release. 2. Replace to lock. shown as an example. 1. To release - Use the spring lock to release the 2. To lock - Fold the arms and engage the spring lock to arm/s and postition your TV Bracket avoid the arms moving whilst driving.
  • Page 9: Installing The Vesa Plate

    INSTALLING THE VESA PLATE VESA 75 x 75 to 100 x 100 Top of the TV VESA 200 x 200 Top of the TV M-D M-F M-D M-F PAGE 9...
  • Page 10 VESA 200 x 100 Top of the TV Screw the VESA plate onto the TV Tighten all screws but do not over tighten PAGE 10...
  • Page 11 MOUNTING THE TV ONTO THE WALL PLATE 1. First loosen the small screws x 2 either side of the TV mount bracket. 2. For safety please lock the TV by screwing the small screws x 2 either side of the TV mount bracket. PAGE 11...
  • Page 12: Cable Management

    Connect the cables to your TV and route through the cable clips along the arms. Note: Leave slack in the cables for the arm movement ADJUSTMENT Adjust to the desired position or tilt. Common Lane, Setchey, Kings Lynn, Norfolk, PE33 0AT, England. T: +44 (0) 1553 813300 E: europe@omp-global.com W: www.ompglobal.co.uk M7441INS Iss 2...
