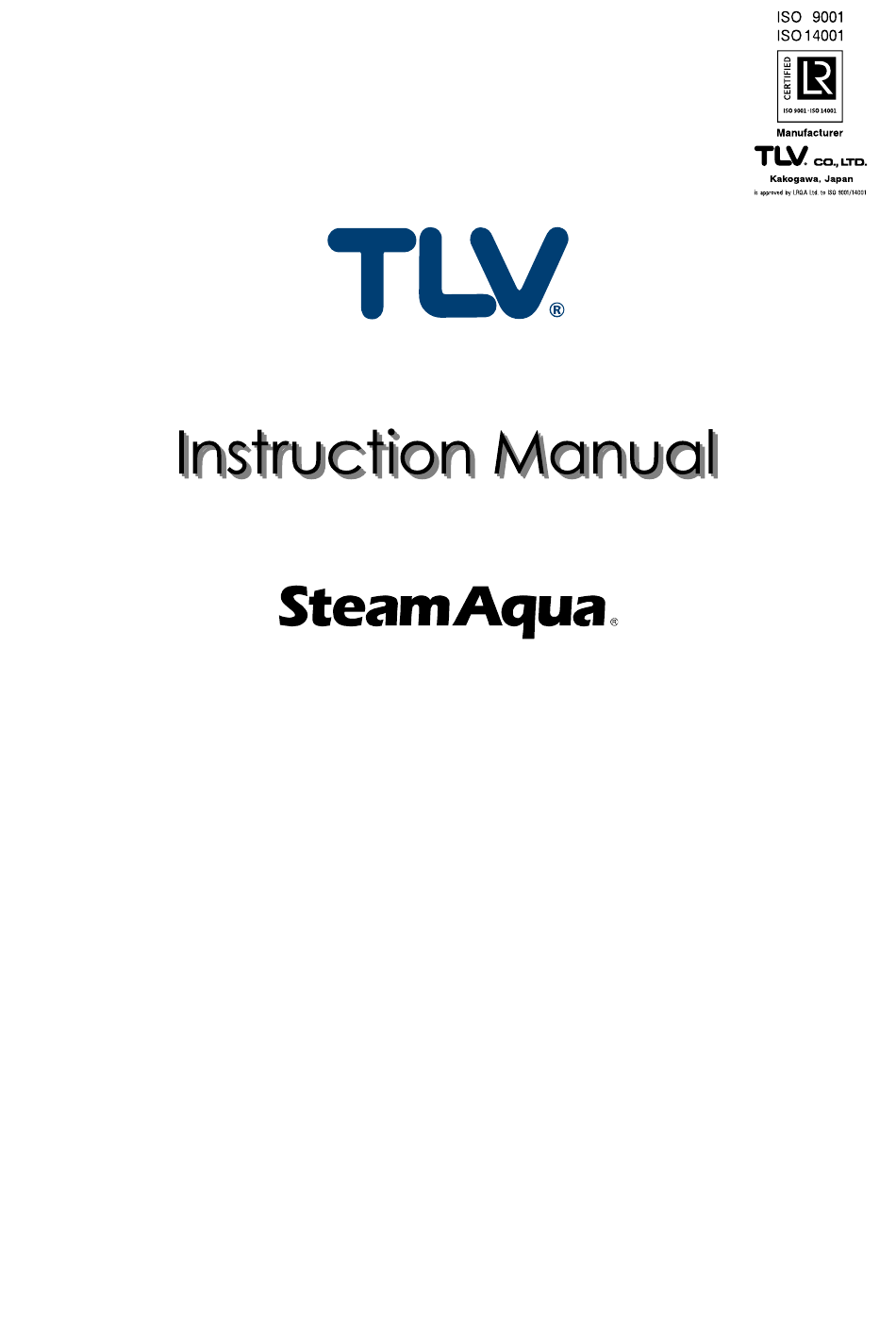

172-65702M-04 (SQ-C01) 10 December 2020
Steam-Fired Instantaneous Water Heater
SQ-C01
Copyright © 2020 by TLV CO., LTD
All rights reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SteamAqua SQ-C01 and is the answer not in the manual?

Questions and answers

Summary of Contents for TLV SteamAqua SQ-C01

  • Page 1 172-65702M-04 (SQ-C01) 10 December 2020 Steam-Fired Instantaneous Water Heater SQ-C01 Copyright © 2020 by TLV CO., LTD All rights reserved...
  • Page 2: Introduction

    Introduction Thank you for purchasing the TLV steam-fired instantaneous water heater, SteamAqua SQ-C01 (hereafter referred to as "the unit"). The unit is certified by JET (Japan Electrical Safety & Environment Technology Laboratories) as a water supply instrument based on the Water Supply Act (in Japan).
  • Page 3: Table Of Contents

    Contents Introduction ····························································· 1 Safety Considerations ··············································· 3 Precautions for Opening the Package ·························· 7 Precautions for Moving the Package ···························· 8 Configuration (Component Name and Function) ············· 9 Options ································································· 11 Considerations for Installation Personnel ····················· 12 Precautions before Unit and Piping Installation ············· 14 Piping Work ···························································...
  • Page 4: Safety Considerations

     The three types of cautionary items above are very important for safety: be sure to observe all of them as they relate to installation, use, maintenance, and repair. Furthermore, TLV accepts no responsibility for any accidents or damage occurring as a result of failure to observe these precautions.
  • Page 5 Precautions for the Entire Unit WARNING For applications such as handwashing in which hot water directly touches hands, when using the one-pass method, make sure to install a thermostatic mixing value at the outlet. Failure to observe this precaution may result in burns, as water at a temperature higher than the set temperature may flow due to load fluctuations.
  • Page 6 When all the piping work is completed based on the system CAUTION flow diagram, inspect once again that all the piping connections and internal G threaded connectors are properly tightened, gaskets have been installed and that no parts or connections are loose. Failure to do so may result in burns or other injury from discharge of fluids.
  • Page 7 Unit components such as steam piping may become hot CAUTION during operation. Do not touch components with bare hands. In the event of an earthquake, close the main steam supply valve and shut down the unit promptly. If the tube inside the heat exchanger of this unit is damaged due to an earthquake, a large amount of steam will enter the hot water piping, which may result in burns.
  • Page 8: Precautions For Opening The Package

    Additional copies of instruction manuals can be supplied on request. a) Contact TLV. (Please quote the serial no. of the unit.) b) Access from the TLV website. 172-65702M-04 (SQ-C01) 10 Dec 2020...
  • Page 9: Precautions For Moving The Package

    Precautions for Moving the Package Observe the following precautions when removing the unit from the box to transport. In the event of failure to observe precautions, TLV is not liable for damage of the unit or injury. The weight of the unit when empty is approximately 21 kg. If it is difficult...
  • Page 10: Configuration (Component Name And Function)

    Configuration (Component Name and Function) Piping Connection Details Chart Name Connection Steam Inlet 15 mm JIS 5KFF or 15 ASME Class 150 RF Condensate Outlet 15 mm JIS 5KFF or 15 ASME Class 150 RF Cold Water Inlet 15 mm JIS 10KFF or 15 ASME Class 150 RF Hot Water Outlet 15 mm JIS 5KFF or 15 ASME Class 150 RF Water Safety Valve Outlet...
  • Page 11 Strainer Make sure to install the strainer correctly. ⑪ (for cold water ・TLV strainer (Rc ½), certified as conforming to the Water Supply inlet) Act (Japan). Note: - The gaskets and bolts included are intended for use with standard accessories only...
  • Page 12: Options

    Note: - The gaskets and bolts included are intended for use with standard accessories only - Accessories do not conform to the Water Supply Act (Japan) unless stated otherwise Contact TLV for specifications not shown here. 172-65702M-04 (SQ-C01) 10 Dec 2020...
  • Page 13: Considerations For Installation Personnel

    Considerations for Installation Personnel When the unit is directly connected to municipal water supply piping, back flow prevention measures must be taken in accordance with the CAUTION Water Supply Act (in Japan) or the applicable law where the unit is to be used.
  • Page 14 Installation Check List ✓ Item Description Before The unit and its Have all packed items been included? commissioning surroundings Has the unit been installed in accordance with the procedures packed with the product? Have all five connection ports been connected correctly? Has the unit been installed securely and stably? Has sufficient space required for inspection and repair...
  • Page 15: Precautions Before Unit And Piping Installation

    3. When installing the unit in a high place, make sure to install the unit at a location where maintenance work etc. can be carried out, and where handrails etc. are installed to prevent falling. If work cannot be performed, TLV may refuse after-sales service.
  • Page 16 6. Precautions before connecting to piping Make sure to flush the steam piping and water supply piping before connecting the unit. The purpose of flushing the piping is different from the initial blowdown, which is carried out to discharge condensate before operation. Flushing is performed to remove the residual sealing material, metal chips, sand or scale in the piping.
  • Page 17: Piping Work

    Piping Work For applications such as handwashing in which hot water directly touches hands, when using the one-pass method, make sure to install a WARNING thermostatic mixing value at the outlet. Failure to observe this precaution may result in burns, as water at a temperature higher than the set temperature may flow due to load fluctuations.
  • Page 18 e) When installing the peripheral piping, be sure to support the surroundings so that the load and stress of the piping and other equipment are not applied to the unit. f) For the water supply system and components to be connected to the unit, follow the instructions provided by the organization that designed and installed the system.
  • Page 19 (1) Steam Inlet Piping a) Install a pressure gauge at the steam inlet. Supply steam pressure range: 0.2 to 0.7 MPaG. b) Make sure to install piping support(s) for the steam inlet piping. c) Install a valve for emergency shutoff and maintenance at the steam inlet.
  • Page 20 Make sure to install the steam trap provided as as a standard accessory. (When using another steam trap, contact TLV.) b) Make sure that the piping installed between the unit and the steam trap is as short as possible, with as...
  • Page 21 (5) Outlet Piping for Water Safety Valve Make sure pipe the outlet piping of the water safety valve to a safe area such as a pit. Make sure that the end of the pipe is opened to the atmosphere and do not install a valve. Even when the unit is not in operation, the water safety valve may operate and hot water may flow out to prevent...
  • Page 22: Commissioning

    Commissioning Hot water may flow out when water is initially supplied after restarting operation. In addition, pay extra attention when changing the set CAUTION temperature or when the flow rate of hot water changes significantly and check the temperature before use. To prevent burns, do not touch hot water for at least five seconds after restarting operation.
  • Page 23 Initial blowdown Before commissioning, make sure to perform flashing and blowdown. If blowdown has not been adequately performed, TLV cannot guarantee against damage or performance loss of valves and the unit due to scale. Check to make sure that steam is supplied just before the valve at the steam inlet and that the pressure gauge reading is 0.2 to 0.7 MPaG.
  • Page 24 Starting commissioning Valve on the steam Valve on the cold inlet piping water inlet piping (Water) Temperature setting dial Valve on the condensate outlet piping Valve on the hot water outlet piping *The diagram above is one example. It may differ from the actual design. 1) Make sure that all the valves are closed.
  • Page 25: Operation

    Operation Hot water may flow out when water is initially supplied after restarting operation. In addition, pay extra attention when changing the set CAUTION temperature or when the flow rate of hot water changes significantly and check the temperature before use. To prevent burns, do not touch hot water for at least five seconds after restarting operation.
  • Page 26 Initial blowdown of the steam piping and the water piping just before the unit should be carried out when operating the unit after the unit is shut down for a long period of time (more than a day). Initial blowdown means the elimination of condensate remained in the steam piping and the elimination of rusty water in the water piping.
  • Page 27 Shutdown If the product is not used for a long period of time (one day or more) after the operation, stop steam and water supply to the unit and then shut down the unit. Before finishing operation, make sure that hot water is not being used at the intended location for use.
  • Page 28: Prevention Of Damage Due To Freezing

    Prevention of Damage due to Freezing Use only under conditions in which no freeze-up will occur. Freezing may damage the unit, leading to fluid discharge, which may different CAUTION cause burns or other injury. When draining water from the unit, make sure to wait until the unit has cooled down.
  • Page 29: Maintenance And Inspection

    Maintenance and Inspection Be sure to use only the recommended components when repairing the unit and its components, and NEVER attempt to modify the unit in any CAUTION way. Failure to observe these precautions may result in damage to the unit or burns or other injury due to malfunction or the discharge of fluids.
  • Page 30 If there are any abnormalities in the operational check items, inspection and repair should be requested immediately. 172-65702M-04 (SQ-C01) 10 Dec 2020...
  • Page 31: Cleaning

    Recommendation of periodic inspection by TLV For longer and safer use, it is recommended to have the product inspected by TLV regularly (about once every six months to one year) in addition to the operational check. Contact TLV for details.
  • Page 32: Maintenance

    Maintenance Be sure to use only the recommended components when repairing the unit and its components, and NEVER attempt to modify the unit in any CAUTION way. Failure to observe these precautions may result in damage to the unit or burns or other injury due to malfunction or the discharge of fluids. When disassembling or removing the unit, wait until the internal pressure equals atmospheric pressure and the surface of the unit has cooled to CAUTION...
  • Page 33 (1) Steam Supply Unit (7) Strainer (Steam Side: Optional) (3) Pre-mixing Valve (9) Pre-mixing Unit (4) Mixing Unit (8) Steam Trap Pressure Gauge Unit * (6) Line Relief Unit (5) Hot Water Outlet Unit (2) Heat Exchanger Unit The recommended maintenance cycles in the table are examples. The recommended maintenance cycle differs depends on the usage and operation frequency.
  • Page 34 interferes, remove it as well. (The pressure gauge can be removed by loosening the stainless steel pipe fitting on the siphon pipe.) 5) Remove the steam supply unit to be replaced and install the new unit by following the same procedures in reverse.
  • Page 35 6) Remove the heat exchanger unit to be replaced and install the new unit by following the above procedures in reverse. Gaskets must be replaced if disassembled. (3) Pre-mixing Valve Components required: (1) Pre-mixing Valve Replacement Kit × 1 1) Loosen and remove the cover of the pre-mixing valve.
  • Page 36 3) Remove the mixing valve unit, holding it with two hands. Replace the mixing valve unit to be replaced and install the new unit by following the same procedures in reverse. Gaskets must be replaced if disassembled. (5) Hot Water Outlet Unit Components required (1) Hot Water Outlet Unit ×...
  • Page 37 Refer to the steam trap instruction manual for the maintenance procedure. The following model is a steam trap included with the unit as standard. TLV free float steam trap: Model J3X-8 (Rc½) (9) Pre-mixing Unit Components required: (1) Pre-mixing Unit × 1 Normally, replacing the pre-mixing unit means replacing only the pre-mixing valve (3).
  • Page 38: Troubleshooting

    When the unit fails to operate properly, use the following table to locate the cause and remedy. If it is not possible to resolve the problem even after performing the remedy below, contact TLV. * Refer to individual instruction manuals for further details on components mentioned in this manual.
  • Page 39 Problem Cause Diagnosis Remedy Temperature The supply water Check the supply Open the supply water does not rise system valve is closed water system valve system valve. as required or the designated Check the amount of water amount is not water used Water discharged...
  • Page 40: Specifications

    Specifications Install properly and DO NOT use the unit outside the recommended operating pressure, temperature and other specification ranges. CAUTION Improper use may result in such hazards as damage to the unit or malfunctions which may lead to serious accidents. Local regulations may restrict the use of the unit to below the conditions quoted.
  • Page 41: Disposal Of The Unit

    Disposal of the Unit When disposing of the unit, disassemble and sort components in a way that adheres to local regulations, while considering environmental conservation, recycling and the pollution prevention. Storage The openings of the unit are sealed with a label, plastic sheet, etc., and delivered after taking measures to prevent rust and contamination.
  • Page 42: Product Warranty

    One year following product delivery. 2. Warranty Coverage TLV CO., LTD. warrants this product to the original purchaser to be free from defective materials and workmanship. Under this warranty, the product will be repaired or replaced at our option, without charge for parts or labor.
  • Page 43: Service

    Service For Service or Technical Assistance: Contact your TLV representative or your TLV office. In Europe: Tel: [49]-(0)7263-9150-0 Daimler-Benz-Straße 16-18, 74915 Waibstadt, Germany Fax: [49]-(0)7263-9150-50 Star Lodge, Montpellier Drive, Cheltenham, Gloucestershire, GL50 1TY, Tel: [44]-(0)1242-227223 U.K. Fax: [44]-(0)1242-223077 Parc d’Ariane 2, bât. C, 290 rue Ferdinand Perrier, 69800 Saint Priest,...
