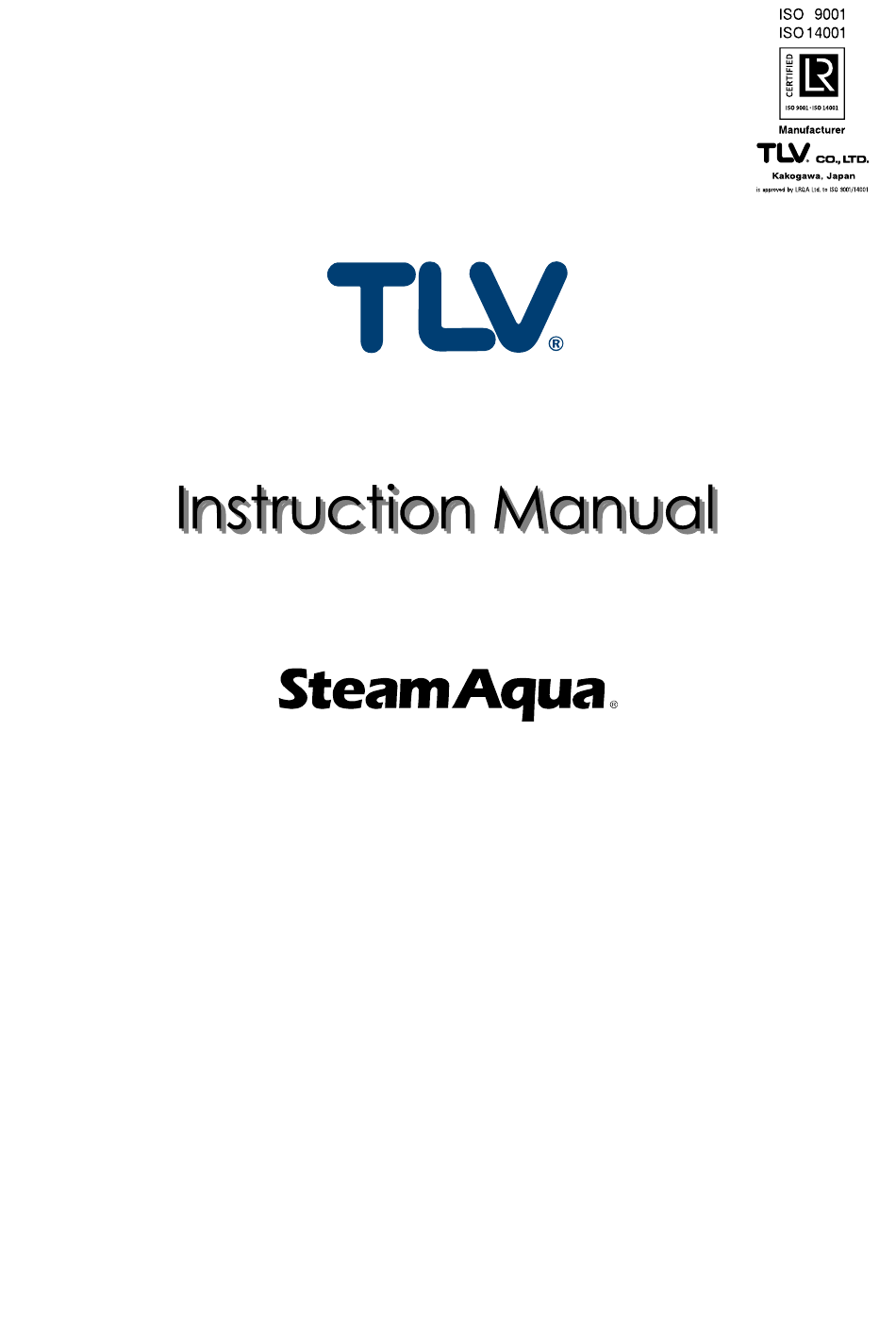

- Page 1 172-65605M-14 (SQ2/SQ4/SQ6) 10 December 2019 Steam-Fired Instantaneous Water Heater SQ2 / SQ4 / SQ6 Copyright © 2019 by TLV CO., LTD. All rights reserved...
-
Page 2: Introduction
Introduction Thank you for purchasing the TLV steam-fired instantaneous water heater, SteamAqua (hereafter referred to as "the unit"). The unit has been thoroughly inspected before being shipped from the factory. When the unit is delivered, before doing anything else, check the specifications and external appearance to make sure nothing is out of the ordinary. - Page 3 Important Notice The copyright of this manual belongs to TLV CO., LTD. Unauthorized reproduction of the contents of this manual in part or in whole is strictly prohibited. This manual should be kept for future reference. If it becomes defaced or is misplaced, contact your local TLV representative, or download from the TLV website (https://www.tlv.com).
-
Page 4: Table Of Contents
Contents Introduction ................... 1 Operation ............... 4 Safety Considerations ................5 Temperature Stability ................9 Configuration (Component Name and Function) ....... 10 Optional Equipment Configuration ............. 13 Control Panel Configuration ............... 15 Touch Panel Display ................16 Safety Function (Abnormal Temperature Rise Preventing Function). 28 Operation Flow ................... -
Page 5: Operation
Operation 172-65605M-14 (SQ2/SQ4/SQ6) 10 Dec 2019... -
Page 6: Safety Considerations
Furthermore, TLV CO., LTD. does not bear responsibility or guarantee the unit for damages or accidents that arise from not following these considerations. Checking the "Caution/Warning Stickers"... - Page 7 Precautions for the Entire Unit Install properly and DO NOT use this unit outside the CAUTION recommended operating pressure, temperature and other specification ranges. Improper use may result in such hazards as damage to the unit or malfunctions that may lead to serious accidents. Local regulations may restrict the use of the unit to below the conditions quoted.
- Page 8 Precautions for Operation When initially starting up the unit, make sure to check the CAUTION display the measured temperature to prevent burns and do not touch the water until the temperature becomes stable. Be careful especially when using the water is used at high temperature.
- Page 9 When finishing operation, the operation should be stopped CAUTION in accordance with the proper steps. Incorrect operation of the unit during use for hand washing, showering, or cleaning, etc., may result in burns due to malfunction, which causes the temperature of the water to rise above the set temperature.
-
Page 10: Temperature Stability
Temperature Stability The unit is capable of supplying water with a temperature deviation of ±1 °C of the set temperature when there is little fluctuation in the amount of water and the unit is in stable operation. However, rapid operation of the valve for water supply, or rapid temperature changes of the supply water, may temporarily result in a temperature deviation greater than 1 °C of the set temperature. -
Page 11: Configuration (Component Name And Function)
Configuration (Component Name and Function) Water Quality Certification (Japan) Steam Inlet Hot Water Outlet High Temperature Caution Label Cold Water Outlet Nameplate Condensate Outlet Left Right Back NOTE: JET certification sticker affixed to standard models only. Oceania models are equipped with handle for easy cover attachment/removal. Hot Water Outlet Steam... - Page 12 Component Configuration Name Component Description Removes steam condensate consumed by the heat PowerTrap exchanger to produce hot water. ・The PowerTrap has both a steam trap function, and a Silencing Bush pump function for discharging Condensate Discharge condensate even when there is Unit very little pressure from the 3, 4...
- Page 13 Name Component Description Starts/stops operation and allows unit setting changes. ・Display of currently flowing hot water temperature and set Control Panel Control Panel temperature. ・Adjust set temperature. ・Sets/cancels each alarm. Safety function. Circulating Pump ・To prevent the water temperature exceeding the set Cooling Circulation Unit temperature, water from the heat exchanger is circulated to...
-
Page 14: Optional Equipment Configuration
Optional Equipment Configuration External view of the standard product Optional Equipment Option Component Description The panel and frame (including 3-sided Cover base) material of the unit can be Carbon Steel (Front, Left, Right) changed from stainless steel to 3-sided Cover/ cold rolled carbon steel. - Page 15 Outdoor Specifications (Standard models only) Option Model Description Enables outdoor installation by improving the dust and water resistance of the cover and internal electrical components of the unit. SQ2-AO SQ2-EO Outdoor (The standard type is for indoor SQ4-AO SQ4-EO Specifications installation only.) SQ6-AO...
-
Page 16: Control Panel Configuration
Circuit breaker for the unit. Earth Leakage ・The circuit breaker is OFF when shipped. Make sure the Circuit Breaker breaker is turned ON by a qualified electrician or TLV (Non-fuse Breaker) personnel. Lights up when power is supplied to the control panel at the Power Supply applicable voltage for each SQ version. -
Page 17: Touch Panel Display
Touch Panel Display Items used during normal operation The following items can be operated with the touch panel display to; 1. Starting operation of the unit, 2. Stopping operation of the unit, or 3. Adjusting the set (target) temperature. The three buttons shown in the figure to the right are used during normal operation. - Page 18 (For more details, refer to the "Alarm log screen" section.) Displays contact information for TLV. ・Contact information for TLV or TLV representative for service Contact Information and technical assistance and the serial No. for the unit can be confirmed.
- Page 19 Flow display on the main screen Screen Display Status Description The water flow rate is The amount of water flowing is less than the set water less than the set water amount for the flow sensor (default: the amount for the flow sensor amount of water that can be controlled under stable...
- Page 20 Alarm Log Screen Function Description Displays the date and time (yy/mm/dd hh:mm) of an alarm. Alarm Time ・The displayed time is derived from the clock on the display. Displays alarm details. ・Low Temp Alarm：Triggered when the water temperature is below the alarm trigger temperature (defined as: set temperature –...
- Page 21 Data Log Function Screen Recorded hot water outlet temperature (measured value, target value) and valve opening data can be output to an external storage device via the USB port. Data log function screen (1) Data log function screen (2) Function Description Start/End Starts/ends trend data recording/display...
- Page 22 Trend data output (data log function) (1) Preparing for data transfer (recording) For trend data output, prepare a USB device. (USB device not included with the unit.) a) Open the front cover of the control panel. USB port (Control panel for outdoor specifications: the inner cover of the control panel should be opened.) For safe use, make sure the breaker is...
- Page 23 (3) Example of recorded data The data written in the CSV file is recorded as in the figure below. The upper limit of the collected data is dependent on the number of lines able to be displayed by the browsing/editing software. If the number of data exceeds the maximum number of lines of the browsing/editing software, there is a possibility that the file may not be opened.
- Page 24 Parameter Settings Screen Parameter Settings Screen (1) Function Description Sets the temperature at which the high temperature alarm is triggered. ・Defined as: Input value + set temperature = high temperature alarm value(When the temperature is set to 70 °C and upper limit alarm set temperature is set to 10 °C, the high High Temp (°C) temperature alarm value becomes 80 °C.)
- Page 25 Unnecessarily changing the PID value may result in being unable to obtain the set water temperature or in some cases overheating. For adjusting the PID constant (value), contact TLV. Displays the valve opening information on the main screen. ・Display state can be changed by touching the square button.
- Page 26 ・Unnecessarily changing the set flow rate may compromise equipment safety or the ability to control the flow rate. Consult TLV when attempting to change the set flow rate. Flow sensor Displays the flow rate of the water currently flowing in the present value unit.
- Page 27 Schedule Settings Screen (Weekly Timer) Function Description Displays the schedule number. ・3 (different) schedules can be set. Schedule No. (Schedule1/Schedule2/Schedule3) Activates/deactivates the schedule function. ON/OFF Button ・Touching the ON button opens the settings screen. (for the schedule ・Schedule function turns OFF when it is in the OFF mode. function) (Scheduled data will be saved.) Inputs numerical values when setting date/time.
- Page 28 Function Description (Displays the Displays the next schedule setting screen (1→2→3). ・Touching this button displays the next schedule setting screen. next schedule ・This button does not exist on the Schedule 3 setting screen. setting screen) Displays the previous schedule setting screen (3→2→1). 14 ...
-
Page 29: Safety Function (Abnormal Temperature Rise Preventing Function)
Safety Function (Abnormal Temperature Rise Preventing Function) The safety function (abnormal temperature rise preventing function) activates when the water temperature exceeds, or is expected to exceed, the allowable upper limit temperature, in order to prevent an excessive temperature rise. This function activates under either of the following conditions 1. -
Page 30: Operation Flow
Operation Flow NOTE: For component names and numbers, refer to the unit/control panel configuration sections. NOTE: For the ‘Control Panel for START Descriptions Connection to Circulating button Pump’ option, circulating Flow sensor (7) pump operation is started. Operates according to the set controllable flow rate. -
Page 31: Operation Procedure
Operation Procedure Start-up When operating the unit after a prolonged period of no operation, initial blowdown should be conducted on the steam and water piping preceding the unit. Initial blowdown refers to the removal of residual condensate from steam piping and rusty water from water piping. - Page 32 (Factory setting: 5 seconds). If the flow does not stabilize within 5 seconds and the unit repeatedly starts and stops operation, the alarm delay time must be changed. (Contact TLV for details of how to change the alarm delay time).
- Page 33 (6) Adjusting the set temperature Do not change the temperature settings without contacting the user when washing hands, using a shower or cleaning. Failure to do so CAUTION may result in burns to the user. Touch the "Set Temperature Adjustment" button on the touch panel, and using the keyboard panel, input the desired temperature.
- Page 34 Shutdown When finishing operation, the operation should be stopped in accordance with the proper steps. Incorrect operation of the unit CAUTION during use for hand washing, showering, or cleaning, etc., may result in burns due to malfunction, which causes the temperature of the water to rise above the set temperature.
-
Page 35: Prevention Of Damage Due To Freezing
Prevention of Damage due to Freezing When draining water from the unit, make sure to wait until the unit has cooled down. If carrying out work after hot water use, there is a CAUTION risk of burns, as the components and the water inside the unit are hot. Make sure measures are taken to prevent freezing of the unit’s steam piping system in cold climates. -
Page 36: Maintenance And Inspection
Maintenance and Inspection When disassembling or removing the unit and its components, wait until the internal pressure equals atmospheric pressure and the CAUTION surface of the components have cooled to room temperature. Disassembling or removing components when hot or under pressure may lead to discharge of fluids, causing burns, other injuries or damage. - Page 37 As a general rule, periodic inspection should be carried out once every two years. (1) For maintenance of the following components, refer to individual instruction manuals. Instruction manuals can be requested from TLV or accessed from the TLV website. a) PowerTrap (GT14L) b) Steam inlet valve (bellows valve) (BE6H)
- Page 38 "flow sensor present value" is displayed. • Calibration check Request a calibration inspection by TLV or the flow sensor manufacturer. (4) Circulating pump (No. 22)/solenoid valve (No. 23) The circulating pump operates when supply water is stopped (still in operation) or while stopping operation.
-
Page 39: Storage
Storage The openings of the unit are sealed with a label, plastic sheet, etc., and delivered after taking measures to prevent rust and contamination. Observe the storage instructions until the unit is installed on the piping. If the following storage instructions cannot be observed, rust or foreign matter may void the warranty. -
Page 40: Troubleshooting
If the unit fails to operate properly, use the following table to locate the cause and remedy. If it is not possible to resolve the problem even after carrying out the remedy below, contact TLV. Problem Cause Diagnosis... - Page 41 Problem Cause Diagnosis Remedy Water Large Check the operating Reduce sudden changes temperature fluctuations in conditions. in the amount of water is unstable amount of water used. (Refer to the used. "Temperature Stability" area of this section.) Inlet steam Check the steam Make sure a steam pressure of the pressure.
-
Page 42: Specifications
Specifications Install properly and DO NOT use this unit outside the recommended operating pressure, temperature and other specification ranges. CAUTION Improper use may result in such hazards as damage to the unit or malfunctions which may lead to serious accidents. Local regulations may restrict the use of this unit to below the conditions quoted. -
Page 43: Product Warranty
One year following product delivery. 2. Warranty Coverage TLV CO., LTD. warrants this product to the original purchaser to be free from defective materials and workmanship. Under this warranty, the product will be repaired or replaced at our option, without charge for parts or labor. -
Page 44: Service
Service For Service or Technical Assistance: Contact your TLV representative or your TLV office. In Europe: Tel: [49]-(0)7263-9150-0 Daimler-Benz-Straße 16-18, 74915 Waibstadt, Germany Fax: [49]-(0)7263-9150-50 Tel: [44]-(0)1242-227223 Star Lodge, Montpellier Drive, Cheltenham, Gloucestershire, GL50 1TY, U.K. Fax: [44]-(0)1242-223077 Tel: [33]-(0)4-72482222 Parc d’Ariane 2, bât. -
Page 45: Installation / Commissioning
Installation / Commissioning 172-65605M-14 (SQ2/SQ4/SQ6) 10 Dec 2019... -
Page 46: Introduction
Furthermore, TLV CO., LTD. does not bear responsibility or guarantee the unit for damages or accidents that arise from not following these considerations. Checking the "Caution/Warning Stickers"... - Page 47 Precautions for the Entire Unit Install properly and DO NOT use the unit outside the CAUTION recommended operating pressure, temperature and other specification ranges. Improper use may result in such hazards as damage to the unit or malfunctions that may lead to serious accidents. Local regulations may restrict the use of the unit to below the conditions quoted.
- Page 48 Precautions for Piping Installation For applications such as handwashing in which hot water WARNING directly touches hands, when using the one-pass method, make sure to install a thermostatic mixing value on the outlet. Failure to observe this precaution may result in burns, as water at a temperature higher than than the set temperature may flow due to load fluctuations.
- Page 49 Precautions for Electrical Wiring Power should be supplied at the voltage and frequency CAUTION applicable for each SQ version. (Standard models: 100 V AC at 50 Hz or 60 Hz, Oceania models: 240 V AC at 50 Hz). Use of a power supply outside the above specification range may cause fires or electric shock.
- Page 50 2. Installation of the water supply system TLV does not provide advice or instructions regarding piping for the entire water supply system or electrical work. For the water supply system and electrical components to be connected to the unit, follow the instructions provided by the organization that designed and installed the system.
- Page 51 Installation Check List Situation Item Description Have all packed items been included? Has the unit been installed securely and stably? The unit and its Has sufficient space required for inspection and surroundings repair been provided? Has all the necessary piping been connected? Has the unit been connected to the applicable power supply voltage for each SQ version? Before...
-
Page 52: Precautions For Opening And Moving The Package
The instruction manuals etc. are enclosed in a plastic bag attached to either the front of the control panel, or to the cushioning material. Instruction manuals can be requested from TLV or accessed from the TLV website. 2. In the event of deformation, damage, parts breakage, missing unit components (especially measuring instruments) found when unpacking the unit, contact TLV immediately. - Page 53 NOTE: When it is difficult to move the package into the facility by forklift: When it is difficult to move the package into the facility by forklift, the package should be moved using an unloading belt, while the unit is still packed in a wooden box.
-
Page 54: Precautions Before Unit And Piping Installation
2. When installing the unit in a high place, make sure to install the unit at a location where maintenance work etc. can be carried out, and where handrails etc. are installed to prevent falling. If work cannot be performed, TLV may refuse after-sales service. - Page 55 Keep personnel and components away from the opening when flushing the piping. Sealing material or dust entering the piping may cause problems such as deterioration of heat transfer efficiency, improper operation of the unit, valve leakage, etc. 172-65605M-14 (SQ2/SQ4/SQ6) 10 Dec 2019...
-
Page 56: Piping Work
Piping Work For applications such as handwashing in which hot water directly touches hands, when using the one-pass method, make sure to WARNING install a thermostatic mixing valve on the outlet. Failure to observe this precaution may result in burns, as hot water at a temperature higher than the set temperature may flow due to load fluctuations. - Page 57 For piping: (1) The pipe diameter should not be smaller than the diameter of the unit connections. (2) For steam piping, make sure the piping is connected with a downward slope on the downstream side. (3) The piping should be kept simple, with as few joints as possible in order to avoid pressure loss.
- Page 58 A. Cold water inlet, hot water outlet The cold water inlet and hot water outlet of the unit are connected to the inlet/outlet of the heat exchanger. Make sure to follow the installation procedures regardless of the instructions provided. These are the minimum precautions to prevent this unit from being damaged or malfunctioning.
- Page 59 A-(2): For recirculating system hot water piping In recirculating systems, the cold water supplied to the unit is heated, then some is supplied to the point of use, and some is returned to the unit via the recirculation piping. a) Install air vent(s), safety valves for pressure relief and expansion tanks (if required) as appropriate on the hot water piping Install the mixing section (for hot water returned from the recirculation piping and cold supply water) at least 1 m away from the cold water inlet of...
- Page 60 (2) The sound of steam flashing (a small pinging sound) may occur from the opening of the condensate outlet piping. To reduce the sound, extend the condensate outlet piping by 3 m or more. (3) When the PowerTrap (No. 1) pumps the condensate, it is discharged vigorously from the condensate outlet piping.
-
Page 61: Installing Several Steamaqua Units In Parallel
Installing Several SteamAqua Units in Parallel When installing several units in parallel, make sure that the water flow to the units is evenly distributed. If the water flow is uneven, the unit with the higher flow rate becomes overloaded, and the required temperature rise may be Cold Water Inlet obtainable. -
Page 62: Electrical Wiring
Electrical Wiring Power should be supplied at the voltage and frequency applicable for each SQ version. (Standard models: 100 V AC, at 50 Hz or 60 Hz, CAUTION Oceania models: 240 V AC at 50 Hz). Use of a power supply outside the above specification range may cause fires or electric shock. - Page 63 2. Connecting the power supply cable (1) Open the cover of the control panel and pass the cable through the control board from the cable connector on the front left. (2) Connect the power supply cable to the L, N and E terminal blocks on the far left.
- Page 64 3. External input/output The unit is capable of receiving the following inputs: (1) Operation input (voltage free contact, pulse) Operation of the unit can be started/stopped.For signals, use voltage free contacts that can be operated for 1 to 3 seconds. In addition, make sure that the "Operation Start"...
- Page 65 Furthermore, the following output can be obtained. (3) Operation output (voltage free contact) The signal can be obtained as a voltage free contact external signal during operation. Terminal block numbers for output during operation Standard models 19, 20 Oceania models 704, 705 (4) Alarm output (voltage free contact) Signals for high temperature alarm,...
- Page 66 4. Option: Wiring of the control panel for the circulating pump (standard models only) The unit has an optional control panel for the circulating pump. In order to link up with operation of the circulating pump, the circulating pump should be connected to this control panel.
-
Page 67: Commissioning Procedure
Commissioning Procedure When starting up the unit, make sure to check the display for the measured temperature and do not touch the hot water until the CAUTION temperature becomes stable as water at a temperature higher than the set temperature may flow. Failure to observe these precautions is dangerous and may result in burns. - Page 68 If blowdown has not been adequately carried out, TLV cannot guarantee against damage or performance loss of valves and the unit as a result of scale. (4) Make sure that the power supply indicator on the control panel is lit and the power is supplied to the control panel.
- Page 69 (Factory setting: 5 seconds). If the water flow rate does not stabilize within 5 seconds and the unit repeatedly starts and stops operation, the alarm delay time must be changed. Consult TLV on how to change settings.
- Page 70 If the water flow rate stabilizes quickly, the alarm delay time will be reduced. However, if using the unit at or around the minimum flow rate, the unit may repeatedly start and stop operation. Consult TLV if this situation applies. (6) Water temperature: The difference between the target temperature and the water temperature is normally ±1 °C, depending on the operating conditions.
- Page 71 (Even within the capability range described below, there are cases where water does not reach the target temperature depending on the temperature and flow rate conditions.) SQ2: 20 to 250 kW SQ4: 60 to 700 kW SQ6: 100 to 950 kW Do not change the temperature settings without contacting the user when washing hands, using a shower or cleaning.
- Page 72 When touching the inner piping of the pump, take care not to avoid burns, as the piping may be hot. Even if the water supply valve on the water system side (not included with the unit) is closed, an operational check can be performed, as the circulating pump still operates on the heat exchanger (No.
- Page 73 6. Prevention of damage due to freezing When discharging water from the unit, make sure to wait until the unit has cooled down. If carrying out work after hot water use, there is a CAUTION risk of burns, as the unit and the water inside the unit are hot. Make sure measures are taken to prevent freezing of the unit’s steam piping system in cold climates.
-
Page 74: Product Warranty
One year following product delivery. 2. Warranty Coverage TLV CO., LTD. warrants this product to the original purchaser to be free from defective materials and workmanship. Under this warranty, the product will be repaired or replaced at our option, without charge for parts or labor. -
Page 75: Service
Service For Service or Technical Assistance: Contact your TLV representative or your TLV office. In Europe: Tel: [49]-(0)7263-9150-0 Daimler-Benz-Straße 16-18, 74915 Waibstadt, Germany Fax: [49]-(0)7263-9150-50 Tel: [44]-(0)1242-227223 Star Lodge, Montpellier Drive, Cheltenham, Gloucestershire, GL50 1TY, U.K. Fax: [44]-(0)1242-223077 Tel: [33]-(0)4-72482222 Parc d’Ariane 2, bât.
