- Page 1 Electronic scoring systems HS25/50 HYBRIDSCORE ® • Installation • Start-up • Maintenance SIUS AG Im Langhag 1 | CH-8307 Effretikon | Switzerland Phone +41 52 354 60 60 www.sius.com | info@sius.com...
- Page 2 B-INWA- HS25/50-en – 09/20 HS25/50 Electronic scoring systems HYBRIDSCORE ® Table of contents Page Installation Structure of the target Dimensions of the target Connections and cables Accessory and spare parts Target holders 6–7 Example of an installation: roofing Center band mechanism Center shade provider Exemple of an installation: center shade provider Light signals and time control unit...

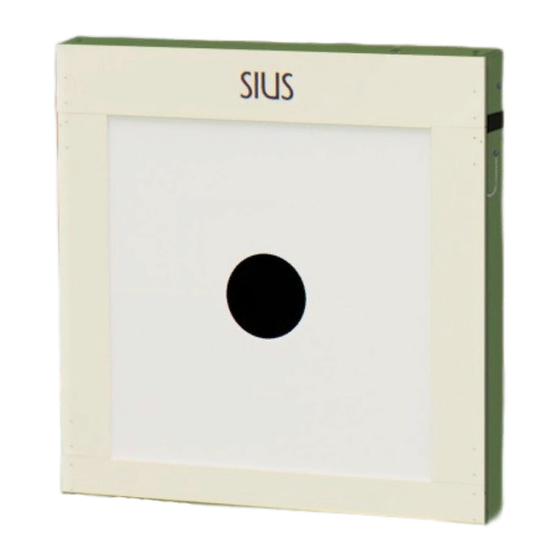

- Page 3 B-INWA- HS25/50-en – 09/20 HS25/50 Electronic scoring systems HYBRIDSCORE ® Structure of the target Article no. HS25/50 One rubber membrane is mounted in front and one in the back of Complete target (pre-assembled), incl. reinforced front frame for the main frame. The membrane in front is used for the acoustic small bore, incl.
-
Page 4: Connections And Cables
B-INWA- HS25/50-en – 09/20 HS25/50 Electronic scoring systems HYBRIDSCORE ® Dimensions of the target 16.5 93.4 SIUS Im Langhag 1 CH - 8307 Effretikon Tel: +41 52 354 60 60 Fax: +41 52 354 60 66 Connections and cables Datum Name Hybrids Gez. - Page 5 B-INWA- HS25/50-en – 09/20 HS25/50 Electronic scoring systems HYBRIDSCORE ® Accessory and spare parts Front masks 112.4 mm 200 mm 500 mm Article no. S50A030 Article no. S50A031 Article no. S50A033 ISSF small bore rifle ISSF small bore pistol ISSF rapid fire pistol 50m (caliber 22) 25/50m (caliber 22, 32*, 38*)
- Page 6 B-INWA- HS25/50-en – 09/20 HS25/50 Electronic scoring systems HYBRIDSCORE ® Target holders Various targets holders enable different types of installation of the target. According to the directives of the ISSF a min. distance of 1m (25m disciplines) resp. 0.5m (50m disciplines) between the back of target and the bullet trap must be maintained, so that any cross shots can be recognized.
- Page 7 B-INWA- HS25/50-en – 09/20 HS25/50 Electronic scoring systems HYBRIDSCORE ® The target holders (stands) listed below enable the installation of the target(s) for 50m as well as for all 25m ISSF disciplines. All stands can be equipped with feet, wheel casters and floor fixings according to the individual needs. A special bullet trap for small bore weapons is available.
- Page 8 B-INWA- HS25/50-en – 09/20 HS25/50 Electronic scoring systems HYBRIDSCORE ® Black target centre (bulls eye) There are several possibilities to ensure that even a heavely shot-up target centre remains visible as black for the shooter. In best case construction measures (roofing of the targets) should prevent incidence of light behind the targets. The accessories on page 9 or 10 should be used if the required construction measures can’t be implemented sufficiently.
- Page 9 B-INWA- HS25/50-en – 09/20 HS25/50 Electronic scoring systems HYBRIDSCORE ® Center band mechanism HS25/50AN005 Center band mechanism Mount the holder for the plastic tape roll The center band mechanism is mounted on the back at the top to the target. of the target.
- Page 10 B-INWA- HS25/50-en – 09/20 HS25/50 Electronic scoring systems HYBRIDSCORE ® Center shade provider HS25/50AN006 Center shade provider Hang the rubber mat on the left and the right on bullet trap / wall side into the provided hooks. If using a bullet trap it is possible to mount a center shade provider on to it.
- Page 11 B-INWA- HS25/50-en – 09/20 HS25/50 Electronic scoring systems HYBRIDSCORE ® Example of an installation: center shade provider Installation without bullet trap The center shade provider is positioned behind the target center on the wall. Installation with bullet trap The center shade provider is positioned behind the target center on the bullet trap.
-
Page 12: Light Signals
B-INWA- HS25/50-en – 09/20 HS25/50 Electronic scoring systems HYBRIDSCORE ® Light signals Light signals Article no. RFP25D004 Article no. RFP25D004 The targets HS25/50 are equipped for the installation of red/green light signals, The targets HS25/50 are equipped for the installation of red/green light signals, Light signal red (top) Light signal red (top) as used for 25m disciplines. - Page 13 B-INWA- HS25/50-en – 09/20 HS25/50 Electronic scoring systems HYBRIDSCORE ® Reinforced front frame for big bore and steel shell ammunition Art.-Nr. HS25/50AN002 Reinforced front frame for big bore ammunition, complete incl. accessories (reinforced front frame, PP-multi-wall with front mask, ply wood front frame, distance disks/washers) Example = Installation with target holder SHS01V1 (installation with target holder SHS03V1 is identic) The reinforced front frame is suitable for subsonic ammunition with steel shell up to max.
- Page 14 (A) and firing line (C) are needed 1x per lane. The «10 Lane Command Desk» (D) enables the central printing and the display of the connected lanes for the spectators (see SIUS website > Products > «10 Lane Command Desk»).
- Page 15 B-INWA- HS25/50-en – 09/20 HS25/50 Electronic scoring systems HYBRIDSCORE ® Additional light signals Installation overview For the 25m pistol disciplines, the targets are equipped with red/green light signals. The time control unit TCU25 with corresponding components are used for controlling these light signals. Several time control units (TCU25) can be connected and synchronized with a cable (Pos.3).
-
Page 16: Bringing Into Service
B-INWA- HS25/50-en – 09/20 HS25/50 Electronic scoring systems HYBRIDSCORE ® Bringing into service Check in advance The lane no. is set by turning the arrow on the number plate to the corresponding numeral, using a screwdriver. Numbering of the lane number is made from right to left. - Page 17 Configuration of control unit at firing point The control unit (for example SA941 or PC/Laptop with LON-dongle and SIUSLANE Software) can be configured. Siehe > http://sius.com > Downloads ILLUMINATION Do not use halogen lamps or electric bulbs. Infrared light can interfere with the system.
- Page 18 B-INWA- HS25/50-en – 09/20 HS25/50 Electronic scoring systems HYBRIDSCORE ® Maintenance and function control Cleaning – Remove all dust and dirt with a vacuum cleaner – Clean the detection system (transmitter and receiver) with a soft damp cloth (do not use any cleaning agent) Receivers Transmitters ...
-
Page 19: Function Check
B-INWA- HS25/50-en – 09/20 HS25/50 Electronic scoring systems HYBRIDSCORE ® 3.2 The hole in the center should not exceed Ø 60mm. Otherwise the rubber membrane has to be replaced. The replaced rubber membrane in front can still be used to replace the one in the back of the target (only if the hole in the center is not bigger than Ø... - Page 20 B-INWA- HS25/50-en – 09/20 SIUS AG Im Langhag 1 | CH-8307 Effretikon | Switzerland Phone +41 52 354 60 60 www.sius.com | info@sius.com...
