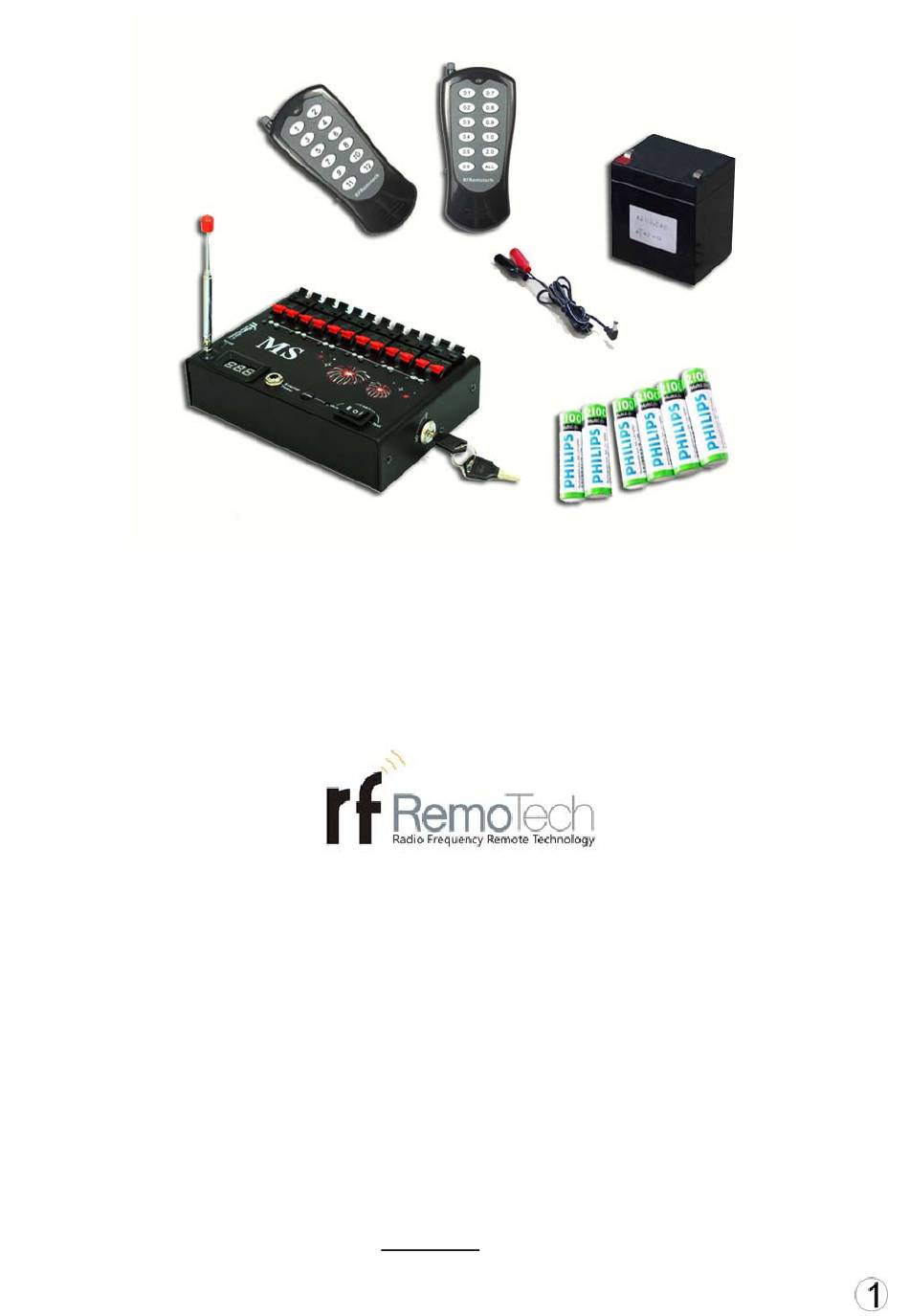

MS
Wireless Firing System
For Pyrotechnics and Fireworks Show
RFRemotech Radio Frequency Remote Technology
Remote Control Products, Remote Controllable Service
Warnings:
The purpose of this device is to cause the ignition of fireworks. Fireworks are explosives and may cause
personal injuries or death to yourself or others, including spectators. You are responsible for the safe and
legal use of this device according to the laws and regulations of your country and/or state/province/district.
RFRemotech is not responsible for illegal or unsafe use of this device. The buyer/user assumes all
responsibility and liability in the use of this device and further agrees, by purchase and/or use of this device,
to indemnify and hold harmless RFRemotech against all liability for injury, loss, or damage direct or
consequential arising out of the use of, or inability to use this device.
You must perform the safety tests (Page 4) every time you use the receiver.
Advertisement
Table of Contents
Related Manuals for RFRemotech MS Series
Summary of Contents for RFRemotech MS Series
- Page 1 RFRemotech is not responsible for illegal or unsafe use of this device. The buyer/user assumes all responsibility and liability in the use of this device and further agrees, by purchase and/or use of this device, to indemnify and hold harmless RFRemotech against all liability for injury, loss, or damage direct or consequential arising out of the use of, or inability to use this device.
- Page 2 Contents Warnings------------------------------------------------------------------------------------ Contents------------------------------------------------------------------------------------- A. Description---------------------------------------------------------------------------------------------- 1) Transmitters ------------------------------------------------------------------------- 2) Receiver ------------------------------------------------------------------------------ 3) Components-------------------------------------------------------------------------- B. How the system works in Two Different Firing Modes------------------------------- 1) Use Transmitter A for Instant Firing mode----------------------------------------- 2) Use Transmitter B for Firing-In-Sequence Mode---------------------------------- C. Before Attaching E-matches/Igniters-------------------------------------------------- 1) Installing or Connecting Batteries-------------------------------------------------- 2) Safety Tests -------------------------------------------------------------------------- D.

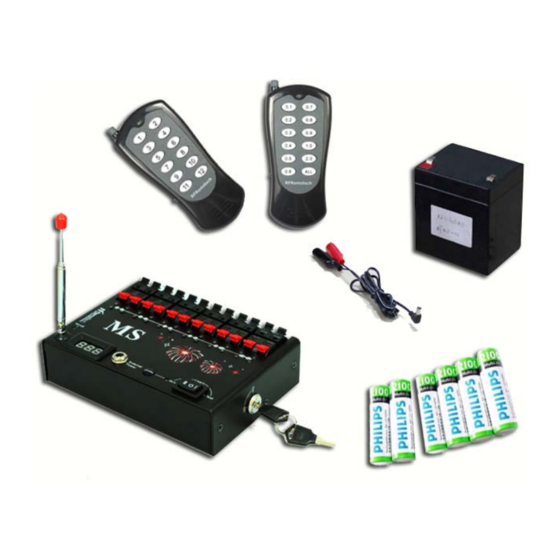

- Page 3 Power: 23A 12V battery. Transmitting Range: 100m. Safety ON/OFF switch prevents misfires. 2) Receiver Model No.: RF12 Cue: 12 cues Power: (Either internal or external) Internal batteries: 6xAA battery, rechargeable or disposable; External battery: 12VDC, SLA is recommended. Firing current: >750mA, Max. 10A Test current: <40mA Size: 154mmx108mmx38mm, antenna is retractile and foldable.
- Page 4 The Alligator Clip Wire is for external battery connection. AA batteries can be either rechargeable or disposable. There is an enclosure inside receiver to hold 6xAA batteries (#15). B. How the system works in Two Different Firing Modes 1) Use Transmitter A for Instant Firing Mode There are 12 cues (1-12) on the receiver and 12 fire buttons (1-12) on the transmitter.
- Page 5 Terminal (#5) and Positive Terminal (#7). D. Some Available Functions: Learn Codes / Clear Codes ◆ ◆ You must synchronize (learn) the A & B transmitters to one or more receivers before they can communicate. Extend the Antenna (#1). Turn on the Main Switch (#12) and set Rocker Switch (#9) to Learn. Press Learn Button (#6) and hold until Learn LED (#8) is lit.
- Page 6 Readout goes back when no press within 3 seconds Shift #7 Rocker Switch at Learn Press Press Press Press Learn Button Learn Button Learn Button Learn Button Rapidly rapidly rapidly for 3 seconds Manufacturer: RFRemotech E-mail: service@RFRemotech.com Http://www.RFRemotech.com December, 2012...
