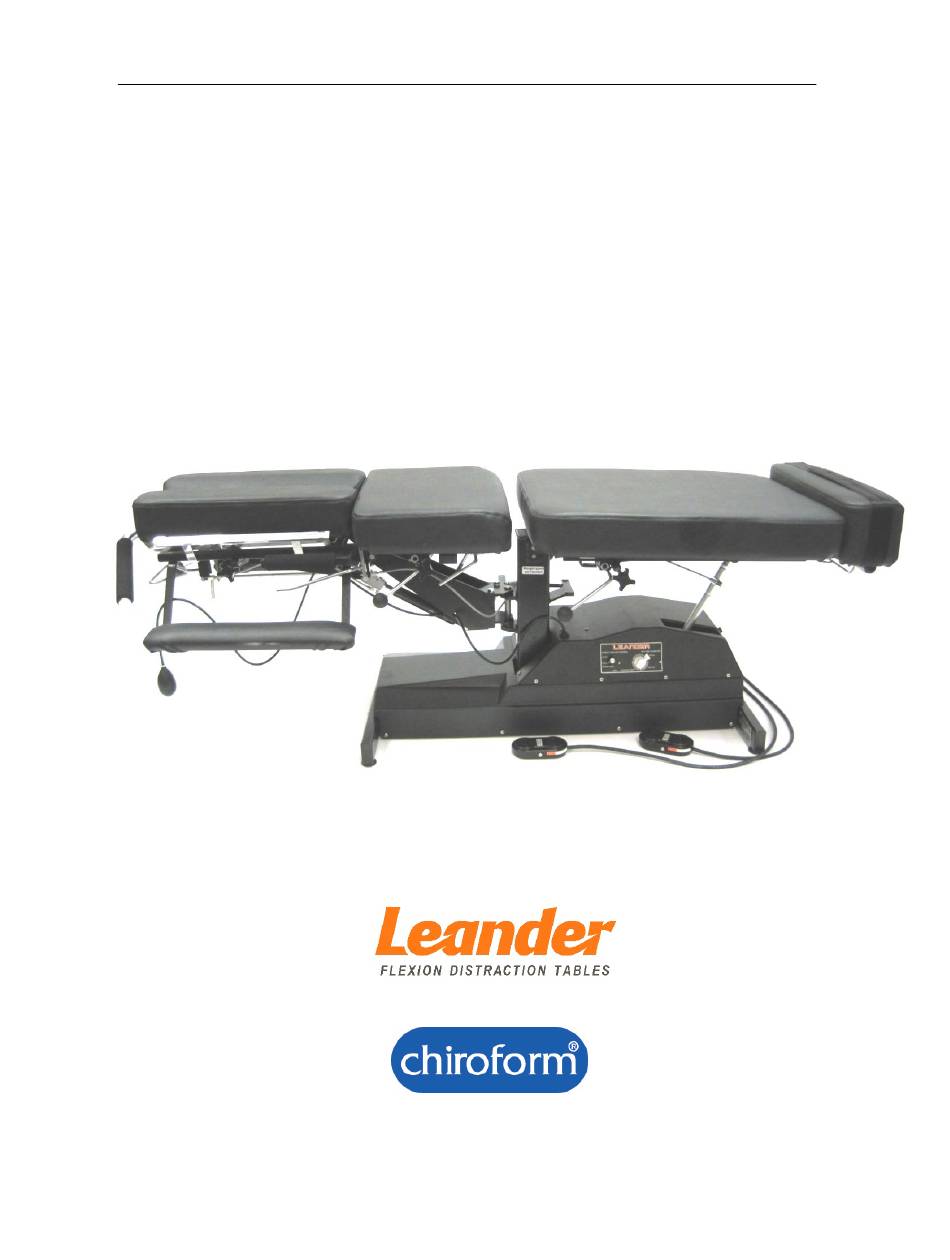

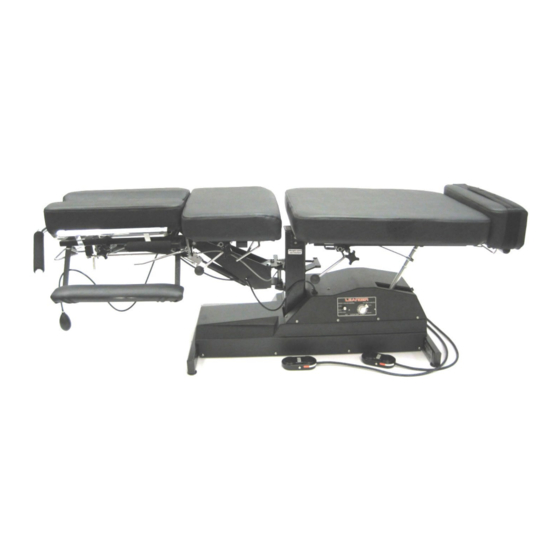

- Page 1 Series Variable Height Multi-Purpose Motorized CPM Adjusting Table OPERATOR MANUAL Mariendalsvej 22 8800 Viborg Denmark Tel. +45 8661 3611 chiroform@chiroform.dk www.chiroform.com...
- Page 2 (uplift-variable height) is raised when the table is being operated in motorized flexion/distraction. If you have any questions regarding this or other operating features of your Leander Table, please call one of our courteous service or sales staff and we will assist you. Thank you and we hope you and your patients enjoy your Leander Multi-Purpose Adjusting Table.
-
Page 3: Table Of Contents
International law. Leander, LLC. CONTENTS Warranty..............................1 Warranty Procedure ........................... 1 Leander 950 12 Month New Product Limited Warranty ..............2 Warranty Terms & Conditions ......................3 Installation .............................. 4 Space Considerations ......................... 4 Electrical Requirements ........................4 Cord Placement ..........................5 Operation ............................... - Page 4 Leander 950 Series Operator Manual & Warranty Leveling Feet ........................... 9 Electrical Variable Speed (EVS) ..................... 10 Variable Height ..........................10 DROPS ............................11 Flexion Timer ..........................11 Proper Patient Positioning ........................12 Check List ............................12 Maintenance & Trouble-Shooting ......................13 UPHOLSTERY ..........................
-
Page 5: Warranty
Leander 950 Series Operator Manual & Warranty WARRANTY Warranty Procedure If a warranty or non-warranty claim is necessary, the following procedure must be followed. 1. Immediately notify the company from whom you purchased your product of the problem. 2. If a dealer sold you your product, ask them to inspect the product and/or malfunction, verify the warranty and have them notify us. -
Page 6: Leander 950 12 Month New Product Limited Warranty
Leander 950 12 Month New Product Limited Warranty Leander LLC provides a limited warranty of this new product for a period of one (1) year (Twelve months) from the date of shipment to the purchaser, to be free of defects in parts and workmanship. -
Page 7: Warranty Terms & Conditions
Cushions Leander, LLC will replace any cushion with factory original vinyl, cloth or leather due to tearing at the seams or cracking within the cushion warranty period. In the event of a tear in any location where upholstery is affixed to the mounting boards with staples or other fastening devices and/or along sewn seams, is discovered by the customer, Leander, LLC will replace such cushion(s) free of charge. -
Page 8: Installation
Space Considerations The is Leander 950 FLEXION DISTRACTION TABLE is 22 inches wide and 88 inches long at its widest and most extended positions, respectively. The front of the table swings 25 degrees left and right, thus creating a width requirement of 57 inches. -
Page 9: Cord Placement
Leander 950 Series Operator Manual & Warranty Cord Placement At the rear of the base cover, you will find up to 4 cord attachment sockets for on/off (red) and uplift peddles (white) as well as the power cord entry socket (black with switch). -
Page 10: Operation
Leander 950 Series Operator Manual & Warranty OPERATION The Leander 950 Table has many standard features. Each of these will be described in this section along with instructions for their use. Standard Features Motorized Flexion Distraction The primary feature of the Leander 950 Table is motorized flexion distraction. This is the original function for which this table’s predecessors were designed and built. -
Page 11: Lateral Flexion
Leander 950 Series Operator Manual & Warranty Right – Figure 6 Head section. Below – Figure 7 Patient flexion-off switch Lateral Flexion The entire front section of the table, including the head and abdominal sections, may be flexed laterally 25 degrees to each side for a total range of 50 degrees. -
Page 12: Adjustable Face Cushions
Leander 950 Series Operator Manual & Warranty Adjustable Face Cushions The two face cushions may be adjusted away from or toward the center of the table. Adjusting the cushions improves support for a variety of patients. Directly below the front and sides of each head cushion are round knobs. Loosen these knobs to allow cushion placement and re-tighten them to secure in the new position. -
Page 13: Cushions
Leander 950 Series Operator Manual & Warranty Cushions The LEANDER TABLE obtains standard density of foam is used for support and comfort for patients. Arm Rests Arm rest cushions are located at either side of the head section. These cushions are provided for patient comfort and allow for reduced tension in the thoracic spine during treatment. -
Page 14: Electrical Variable Speed (Evs)
Leander 950 Series Operator Manual & Warranty Electrical Variable Speed (EVS) The EVS provides an easy to use speed control for the flexion motor. You will find the EVS control panel on the left side of the table under the caudal cushion. Simply turn the knob to change flexion speed. -
Page 15: Drops
DROPS Pelvic, Thoracic, and Cervical Drops The drops on Leander tables all operate the same way. Each incorporates one or two cocking handles (A), and a tension adjust knob (B). The pelvic and thoracic drops each have a cocking handle on either side of the table (see figure 20). The... -
Page 16: Proper Patient Positioning
CAUTION: While the LEANDER TABLE may be used by an unattended patient, be sure to show the patient the location and operation of the Patient Flexion-Off Switch. DO NOT change the table to use in-line timers which may bypass the shut-off switches. Also, we do not recommend unattended use of the table with children in the room. -
Page 17: Maintenance & Trouble-Shooting
TABLE MAINTENANCE Leander, LLC provide you with a superior product to the best of our ability. It is our main objective to provide you with a product that should last for many years. At times there may be some issues that may occur. The most common is motor sounds. -
Page 18: Specifications
Leander 950 Series Operator Manual & Warranty SPECIFICATIONS Weight 165 pounds in standard configuration 190 pounds with all available options Length & Width 68 inches retracted length 88 inches with T-bar and ankle cushion extended 22 inches overall width 58 inches required by maximum lateral flexion... -
Page 19: Upholstery Limited Warranty Statement
Leander 950 Series Operator Manual & Warranty UPHOLSTERY LIMITED WARRANTY STATEMENT FABRIC/LEATHER – ONE YEAR Upholstery fabrics and leather hides are warranted against defective material or workmanship for one year from the date of purchase under normal use and care. Fabric fading, pilling, shrinkage, stretching, wearing quality and color fastness are not covered by this warranty.
