Summary of Contents for Duratool D03128

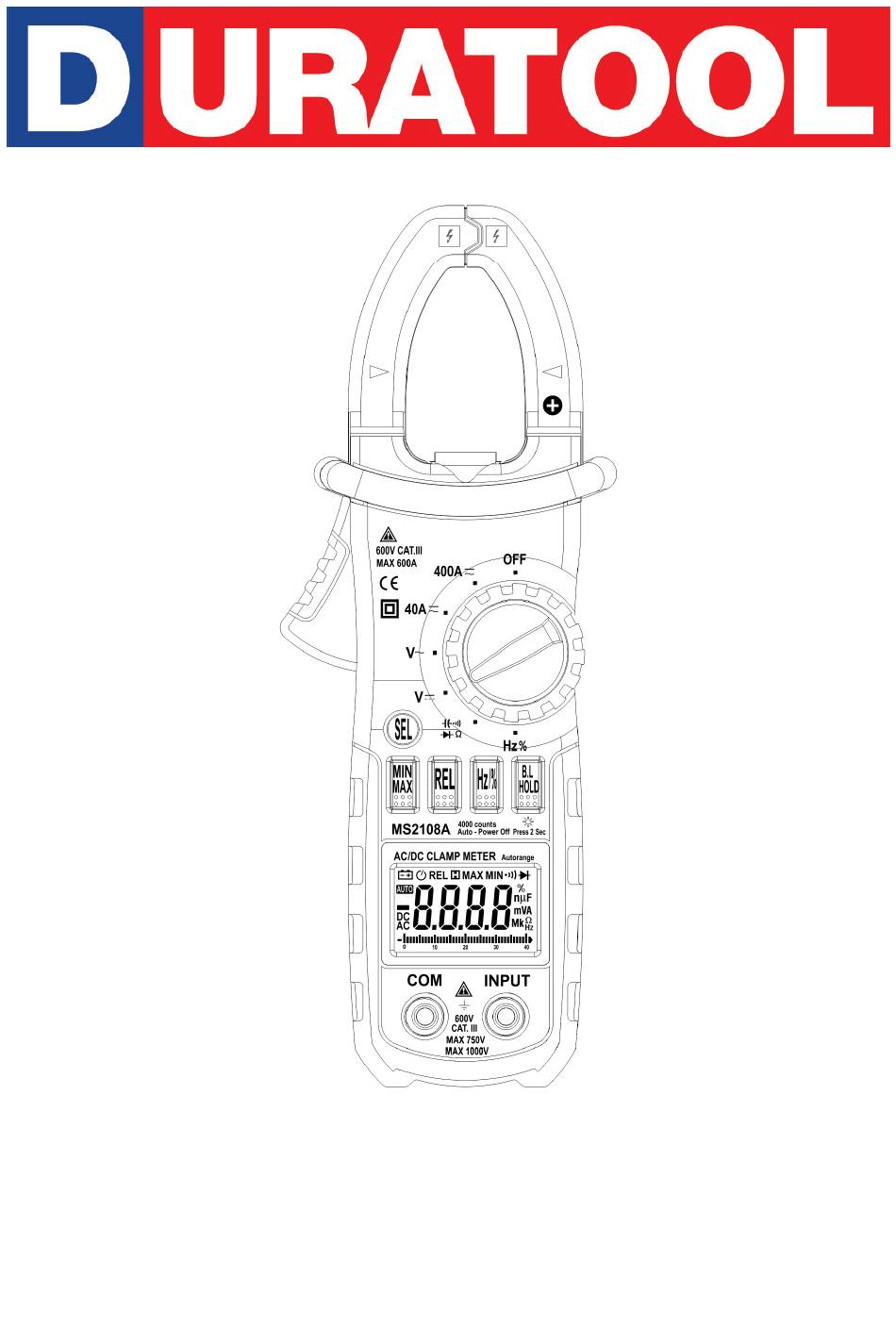

- Page 1 MODEL: D03128 CLAMP METER...
-
Page 2: Table Of Contents
CONTENTS Page Number Details Important Safety Information Features Product Overview Switches, Buttons & Input Jacks Specifications Electrical Specifications Operation Switching REL Switching Frequency or Duty Cycle Switching Maximum or Minimum Value Switching Functions Backlight and Clamp Lighting Bulb Auto Power Off Preparing for Measurement Measuring AC Current Measuring DC Current... -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION Please read these instructions carefully before use and retain for future reference. • When using electrical appliances basic safety precautions should always be followed. • Use the meter only as specified in this manual, or the protection provided may be impaired. -
Page 4: Product Overview
PRODUCT OVERVIEW Number Component Number Component Current Clamp Hz/Duty Cycle Switch Button (Hz/%) Clamp Lighting Bulb Reading Hold/Backlight Button (HOLD/B.L.) Panel Rotary Selector Trigger OFF - Power Switch Function Switch Button (SEL) “+” Symbol MAX/MIN Switch Button (MAX/ “-” Symbol MIN) Relative Switch Button (REL) Rear Case... -
Page 5: Switches, Buttons & Input Jacks
SWITCHES, BUTTONS & INPUT JACKS Button/Switch/Jack Function HOLD/B.L button Hold the reading or control the backlight. SEL button For switching among measuring functions. REL button Relative value measurement. Hz/% button Switch between ‘frequency’ and ‘duty’ measurement functions MAX/MIN button Switch between maximum and minimum value measurement functions. -
Page 6: Specifications
SPECIFICATIONS Calibration is required once a year and is to be carried out at a temperature between 18°C and 28°C (64°F to 82°F) and relative humidity, below 75%. Auto range Overrange protection is provided for all ranges Maximum voltage between 1000V or 750V rms AC terminals and earth ground Operating altitude... - Page 7 • Input impedance: 10MΩ. DC Voltage • Max. input voltage: 1000V DC. Range Resolution Accuracy • At small voltage range, unsteady 400mV 0.1mV ± (1.0% of rdg + 2 digits) readings will appear before the test 0.001V leads contact the circuit. This is 0.01V ±...
- Page 8 By A range (from current clamp): Duty Cycle • Frequency response: 10 ~ 1kHz. Range Resolution Accuracy • Input current range: ≥ 4A rms AC. • Max. input current: 400A. 0.1% - 99% 0.1% ± 3.0% By ACV range: By Hz/Duty Cycle range: •...
-
Page 9: Operation
OPERATION Holding Readings • Press the “HOLD/B.L” button to hold the readings while taking measurement and the value on the display will be held. • Press the “HOLD/B.L” button again to release the reading hold function. SWITCHING REL • The “REL” key is the relative value measurement communication transmission key that acts with trigger. -
Page 10: Switching Functions
manual mode automatically. • When working at frequency or duty measuring function, the meter can’t be changed into maximum or minimum value measuring mode. SWITCHING FUNCTIONS • The “SEL” key is a function selection key that acts with trigger. • Pressing the key can choose the required measurement mode: - To choose DC or AC in DC/AC status, - To choose Diode or Buzzer in Diode/Buzzer status,... -
Page 11: Measuring Ac Current
MEASURING AC CURRENT WARNING • Beware of electrocution. • Ensure that the test leads are disconnected from the meter before making current clamp measurements. • Set the rotary selector to the 40A or 400A range position. • Push the “REL” key to make sure that the LCD displays zero. •... -
Page 12: Measuring Ac Voltage
MEASURING AC VOLTAGE WARNING • Beware of electrocution. • Pay special attention to avoid electric shock when measuring high voltage. • Do not input voltage, which is more than 750V rms AC. • Plug the black test lead into the COM jack and the red test lead into the INPUT jack. -
Page 13: Measuring Frequency
incorrect test value might be obtained. • Frequency test range is 10Hz - 1kHz. “00.0” will be displayed on the LCD if the test frequency is lower than 10.0Hz. It is possible to test a frequency, which is higher than 1kHz, but the tolerance of the test result can’t be ensured. -
Page 14: Measuring Duty Cycle
Note: Do not put more than one cable into the jaw during the test, otherwise incorrect values may be obtained. • If the duty cycle is less than 10%, the symbol “UL” will be displayed on the LCD and if the duty cycle is more than 94.9%, the symbol “OL”... -
Page 15: Measuring Resistance
• Take the reading on the LCD. Note: If the duty cycle is less than 10%, the symbol “UL” will be displayed on the LCD. If the duty cycle is more than 99.9%, the symbol “OL” will be displayed on the LCD. •... -
Page 16: Measuring Capacitance
measurement. • If the resistance of the circuit being tested is less than 40Ω, the built-in buzzer may sound. • Take the reading on the LCD. Note: If the test leads are open or the resistance of the circuit is over 400Ω, “OL” will appear on the LCD.
