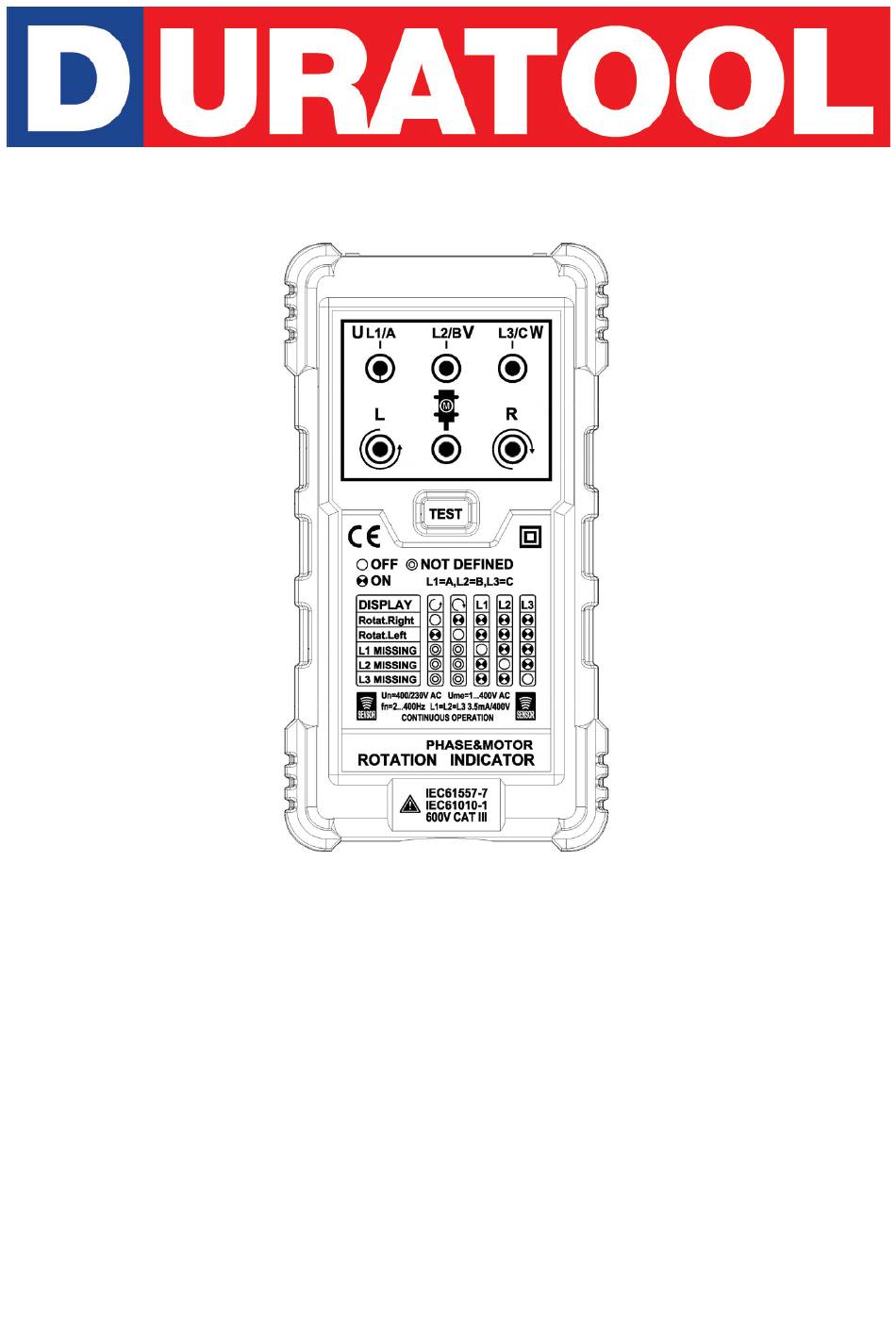

- Page 1 Motor & Phase Rotation Indicator Model: D03121...
- Page 2 IMPORTANT SAFETY INFORMATION Please read these instructions carefully before use and retain for future reference. • When using electrical appliances basic safety precautions should always be followed. • Use the meter only as specified in this manual, or the protection provided may be impaired.
- Page 3 terminal in three-phase motor). • Press the “TEST” button and the power light will turn green, indicating that the indicator is ready for testing. • “Clockwise rotation (R)” or counter-clockwise rotation (L)” with the indicator light on, indicates L1-L2-L3 of the three-phase system connected to the indicator in “positive phase”...
- Page 4 Confirm Motor Wiring • Connect one end of the test line to the indicator and connect L1, L2 and L3 test lines to the corresponding input jack. • Connect the alligator clip to the other end of the test line. •...
