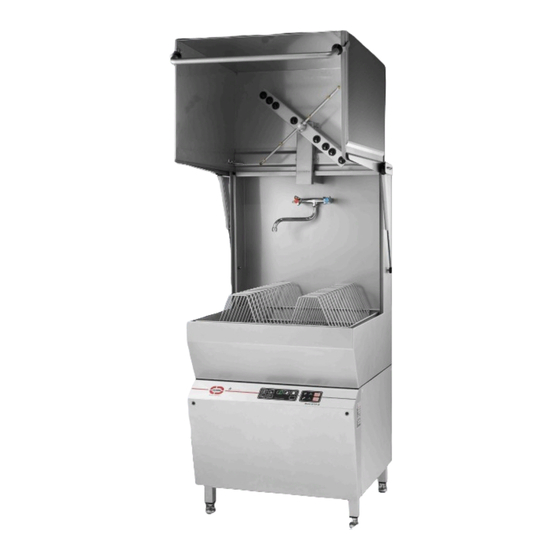

SPARE PARTS DIAGRAM FOR
Dish/Glass Washer
9110/9115
First Choice Group
Blakeney Way, Kingswood Lakeside
Cannock, Staffs, WS11 8LD
TEL: 01543 577778 FAX: 01543504141
Email: enquires@firstchoice-cs.co.uk
Web: www.firstchoice-cs.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9110 Series and is the answer not in the manual?

Questions and answers

Related Manuals for JEROS 9110 Series

Summary of Contents for JEROS 9110 Series

  • Page 1 SPARE PARTS DIAGRAM FOR Dish/Glass Washer 9110/9115 First Choice Group Blakeney Way, Kingswood Lakeside Cannock, Staffs, WS11 8LD TEL: 01543 577778 FAX: 01543504141 Email: enquires@firstchoice-cs.co.uk Web: www.firstchoice-cs.co.uk...
  • Page 2 9110/9115 www.jeros.com...
  • Page 3 Jeros Utility Washer 9110-15 Series Rev. Oct. 2015 8900-0013...
  • Page 4 DECLARATION OF CONFORMITY Nyborgvej 8 Tel: +45 63 62 39 13 DK-5750 Ringe Fax: +45 62 62 33 01 Denmark Email: jeros@jeros.com hereby declares that the machine: TYPE: _________________________ EQUIPMENT: _________________________ MACHINE NO.: _________________________ VOLTAGE: ______________V/ _______Hz - covered by this declaration is in accordance with: Provisions of the Machinery Directive 2006/42/CE.
  • Page 5 Jeros Utility Washer 9110-15 Series Rev. Oct. 2015 8900-0013...

  • Page 6: Table Of Contents

    Jeros Utility Washer 9110-15 Series TABLE OF CONTENTS GENERAL INFORMATION ......................8 Responsibility ..........................8 Warranty............................8 Safety ............................8 Safe use! ............................. 8 SAFETY PRECAUTIONS ......................10 Legend ............................10 INSTALLATION INSTRUCTIONS ....................13 Receipt ............................13 Installation instructions ......................13 Water connection ........................
  • Page 7 Jeros Utility Washer 9110-15 Series Setting soap dispensing ......................23 Setting the rinse aid dosage ...................... 24 TROUBLESHOOTING ........................25 Keys to error codes ........................25 ENVIRONMENTAL PROTECTION ....................28 Disposal of the machine ......................28 Disposal of chemicals ........................ 28 MODEL OVERVIEW ........................
  • Page 8 After installation, keep the manual for your own use. If malfunctions or defects occur, please contact your JEROS dealer, who will help you solve any problems. Please quote the machine data stated in the declaration of conformity when making inquiries.

  • Page 9: General Information

    These symbols are located next to the parts of the text where the risk is mentioned. Safe use! JEROS A/S has made a serious effort to inform you as well as possible about the potential hazards in relation to the use of the machine. Please be aware of observing the rules of conduct / precautions described.
  • Page 10 Have the carrier prepare a transport damage report immediately; b) the perfect nature of the delivery/deliveries and if (additional) parts and accessories ordered are missing. Under any circumstances, contact JEROS A/S in the event of any damage. Rev. Oct. 2015 8900-0013...

  • Page 11: Safety Precautions

    Jeros Utility Washer 9110-15 Series SAFETY PRECAUTIONS Legend Various warning signs are attached to the machine. These signs are explained below. Warning about hazard of electrical shock. The label is attached to guards covering electrical components or wires which involve a risk of electrical shock in the event of contact.
  • Page 12 Jeros Utility Washer 9110-15 Series Inappropriate use of this machine may cause personal injury and damage the machine. Consequently, all relevant persons must be familiar with the contents of these operating instructions. The operating instructions must be kept readily available to the staff operating the machine.
  • Page 13 Jeros Utility Washer 9110-15 Series Important! If the safety precautions are not observed, JEROS A/S cannot be held liable for any personal injury. Rev. Oct. 2015 8900-0013...

  • Page 14: Installation Instructions

    JEROS utensil washers must be placed on a solid foundation to ensure optimum operation and can be levelled using the adjustable feet. Note! JEROS utensil washers must be connected to the water supply and the stop tap must be open before the machine is turned on at the main switch. Water connection Water is connected on the rear of the machine.

  • Page 15: Drain Connection

    Jeros Utility Washer 9110-15 Series Important! If the water in your area is hard (above 8°dH), we recommend using a softening unit. This will give the machine a longer service life, lower electricity / soap consumption and prevent lime scale from forming in the machine.

  • Page 16: Phase Connection

    Jeros Utility Washer 9110-15 Series Phase connection Applicable to machines with software version 4.0: The machine must not be used until the phase sequence has been checked. If the motor turns in the wrong direction, two phases must be switched (e.g. L1 and L2) at the main switch.

  • Page 17: User Instructions

    JEROS utensil washer is easy to use and can be operated from three sides. It can be used as an extension table for used utensils.

  • Page 18: Machine Function

    Jeros Utility Washer 9110-15 Series Machine function Once the machine is full, close the lid and the machine will start (if the machine has been switched on and one of the three wash programs have been selected). Soapy water is pumped from the wash tank out through wash nozzles in the wash system.

  • Page 19: Operating Instructions

    Jeros Utility Washer 9110-15 Series OPERATING INSTRUCTIONS Every day before using the machine 1) The red lance must be inserted into the soap container and the grey lance into the rinse aid bottle. If the rinse hose is empty, the dosage pump must be primed manually until the hose is full again.

  • Page 20: During The Day

    Jeros Utility Washer 9110-15 Series During the day 1) Check the filter regularly and clean it if it is fully or partly clogged. The machine must always be equipped with a coarse filter and may also be equipped with a fine filter.

  • Page 21: Control Panel

    Jeros Utility Washer 9110-15 Series CONTROL PANEL 9110/9115 9117/9120/9130/8150/8160 01) Machine ON / OFF button. 02) Button to empty wash tank. 03) Flush hose ON/OFF button. 04A) Button for pulsing wash pressure ON/OFF 04B) Button for high / low washing pressure 05) Wash program 1 (standard 3 min.

  • Page 22: Cleaning And Maintenance

    Jeros Utility Washer 9110-15 Series CLEANING AND MAINTENANCE Daily cleaning Before cleaning, ensure that the machine is switched off and disconnected on the main switch. 1) Remove and clean the coarse net. 2) Empty the coarse filter (and any fine filter installed) of waste and clean it (them).

  • Page 23: Preventative Maintenance

    Jeros Utility Washer 9110-15 Series Preventative maintenance In addition to the daily maintenance described above, we recommend that you check the machine regularly to make sure it is working optimally. The following should be checked: 1) Dosage of soap and rinse aid.

  • Page 24: Adjustments

    Jeros Utility Washer 9110-15 Series ADJUSTMENTS Setting soap dispensing Two different soap volume values can be set on the machine. One value applies to wash program 1 (button 5) while the other applies to wash programs 2 and 3 (buttons 6 and 7).

  • Page 25: Setting The Rinse Aid Dosage

    Jeros Utility Washer 9110-15 Series Setting the rinse aid dosage 1) The rinse aid can be adjusted directly on the pump behind the front cover. 2) Turn the screw anticlockwise for more detergent (+). 3) Turn the screw anticlockwise for less detergent (-).

  • Page 26: Troubleshooting

    Jeros Utility Washer 9110-15 Series TROUBLESHOOTING Keys to error codes AL 01 = Temperature sensor in wash tank disconnected or short-circuited Switch the machine OFF and then ON again. If error AL 01 reoccurs, call an engineer. AL 02 = Temperature sensor in rinse tank disconnected or short-circuited Switch the machine OFF and then ON again.
  • Page 27 Jeros Utility Washer 9110-15 Series The machine does not start 1) Lid contact S6 is adjusted incorrectly / defective. 2) Too little water in wash tank. 3) Fuse F1/F10 disconnected. 4) Main fuse disconnected / defective. 5) Pressure switch in wash tank defective.
  • Page 28 Jeros Utility Washer 9110-15 Series Rinse temperature too low / high, must be at least 82°C 1) Heating element defective. 2) Pressure switch S18 defective. Flushing does not work when activated 1) Flush handle clogged / defective. 2) Relay Q10 / Q13 defective.

  • Page 29: Environmental Protection

    Jeros Utility Washer 9110-15 Series ENVIRONMENTAL PROTECTION Disposal of the machine When/If you want to scrap the machine, you must comply with the environmental regulations applicable at the time in question and at the location where the machine is scrapped.

  • Page 30: Model Overview

    Jeros Utility Washer 9110-15 Series MODEL OVERVIEW 9110 9115 Rev. Oct. 2015 8900-0013...

  • Page 31: Technical Data

    Jeros Utility Washer 9110-15 Series TECHNICAL DATA TECHNICAL DATA 9110 9115 Connection 3N~400V+PE 50Hz or 3~230V+PE 50Hz Output, depending on heaters 6.5kW or 8kW Heater in wash tank Heater in rinse tank 4.5 or 6kW Fuse at 400/230V 16A / 25A...

  • Page 32: Diagram

    DIAGRAM Key diagram 9110/15 3x230V Drawing no.: 4699-0032 Rev. Oct. 2015 8900-0013...

  • Page 33: Key Diagram 9110/15 3X400V

    Key diagram 9110/15 3x400V Drawing no.: 4699-0022. Rev. Oct. 2015 8900-0013...
  • Page 34 Ref.: Part no.: Description: Beschreibung: 59020002 Main Control PCB Steuerplatine 59010400 Option PCB no.1 Option PCB 59020001 Operating PCB Bedienungsplatine 59010365 Fuse 500mA/T Sicherung 500mmA/T F2-F5 59010363 Fuse 2A/T Feinsicherung 2A/T 59010361 Fuse 630mA/T Feinsicherung 630mA/T 59010364 Fuse 4A/T Feinsicherung 4A/T 59010553 Fuse 1A/T Sicherung 1A/T...

  • Page 35: Flow Diagram 9110/15

    Flow diagram 9110/15 Drawing no.: 8411-0251 Rev. Oct. 2015 8900-0013...

  • Page 36: Spare Parts / Ersatzteile

    Jeros Utility Washer 9110-15 Series SPARE PARTS / ERSATZTEILE Rinse / Nachspül Rev. Oct. 2015 8900-0013...
  • Page 37 Jeros Utility Washer 9110-15 Series Pos.: Part no.: Description: Beschreibung: 59020010 Rinse pump, Olympia 230/400V Klarspülpumpe, Olympia 230/400 59020022 Rep.kit Impeller Rep.kit Impeller 59020023 Rep.kit Pump Rep.kit Pumpe 59020009 Hose kit Schlauch kit 59020028 Manifold for Rinse Aid Manifold Klarpülpumpe...

  • Page 38: Wash / Wäsche

    Jeros Utility Washer 9110-15 Series Wash / Wäsche Rev. Oct. 2015 8900-0013...
  • Page 39 Jeros Utility Washer 9110-15 Series Pos.: Part no.: Description: Beschreibung: 59020036 Hose kit Schlauch kit 59010067 Kit Soap lance Kit Seifenrohr 59020011 Wash pump, T220 9110 Waschpumpe, T220 9110 59020024 Rep.kit Impeller T220 Rep.kit Impeller T220 59020025 Rep.kit Pump T220 Rep.kit Pumpe T220...

  • Page 40: Drain / Abfluß

    Jeros Utility Washer 9110-15 Series Drain / Abfluß Rev. Oct. 2015 8900-0013...
  • Page 41 Jeros Utility Washer 9110-15 Series Pos.: Part no.: Description: Beschreibung: 59010434 Drain pump 200-240V Ablaufpumpe 200-240V 59010305 Gasket EPDM sh70 ø59/38x2 Dichtung EPDM sh70 ø59/38x2 59010524 Hose 525mm Schlauch 525mm 59010085 Kit Drain Hose Kit Ablaufschlauch Rev. Oct. 2015 8900-0013...

  • Page 42: Wash System / Waschsysteme

    Jeros Utility Washer 9110-15 Series Wash System / Waschsysteme Rev. Oct. 2015 8900-0013...
  • Page 43 Jeros Utility Washer 9110-15 Series Pos.: Part no.: Description: Beschreibung: 59020044 Wash arm 9110/15 Wascharm 9110/15 59010218 Wash nozzles gray – 10 pcs Waschdüsen grau – 10 stück 59020003 Rinse arm ass'y 9110/15 Klarspülarm kompl. 9110/15 59010108 Rinse nozzles set of 15 pcs.

  • Page 44: Water Intake / Wasserzuführ

    Jeros Utility Washer 9110-15 Series Water intake / Wasserzuführ Rev. Oct. 2015 8900-0013...
  • Page 45 Jeros Utility Washer 9110-15 Series Pos.: Part no.: Description: Beschreibung: 59010314 Vacuum Valve Vakuum Ventil 59010235 Mixer tap Mischbatterie 59010280 Hose connection 2.5M 1/2" Schlauchanschluss 2,5m 1/2" 59010281 Hose ½” 1,2m Schlauchanschluss ½" 1,2m Rev. Oct. 2015 8900-0013...

  • Page 46: Lid / Haube

    Jeros Utility Washer 9110-15 Series Lid / Haube Rev. Oct. 2015 8900-0013...
  • Page 47 Jeros Utility Washer 9110-15 Series Pos.: Part no.: Description: Beschreibung: 59020064 Lid compl. 9110 Haube kompl. 9110 59020065 Lid compl. 9110 ext. Haube kompl. 9110 erhöht 59020066 Lid compl. 9115 Haube kompl. 9115 59020067 Lid compl. 9115 ext. Haube kompl. 9115 erhöht...

  • Page 48: Frontplate / Frontplatte

    Jeros Utility Washer 9110-15 Series Frontplate / Frontplatte Rev. Oct. 2015 8900-0013...
  • Page 49 Jeros Utility Washer 9110-15 Series Pos.: Part no.: Description: Beschreibung: 59010182 Dzus lock complete Dzus schloss komplett 59010368 Hood for el-chassis plastic Kappe für el-chassis kunststoff 59020072 Foil 9110 Folie 9110 59020073 Foil 9115 Folie 9115 5902 Front with foil 9110...

  • Page 50: Accessories / Ausstattung

    Jeros Utility Washer 9110-15 Series Accessories / Ausstattung Rev. Oct. 2015 8900-0013...
  • Page 51 Jeros Utility Washer 9110-15 Series Pos.: Part no.: Description: Beschreibung: 59020007 Filter 91xx Filter 91xx 59020008 Filter Baseplate 9110/15 Filterträger 9110/15 59020082 Coarse Basket 9110 Grobkorb 9110 59020083 Coarse Basket 9115 Grobkorb 9115 59900009 Tray stand complete Blechstand komp. Rev. Oct. 2015...

  • Page 52: Danish Original Version

    Jeros Utility Washer 9110-15 Series DANISH ORIGINAL VERSION Rev. Oct. 2015 8900-0013...
  • Page 53 Kære kunde Vi ønsker Dem tillykke med Deres valg af et JEROS kvalitetsprodukt. Det er af stor vigtighed, at De lærer produktets funktioner at kende, inden produktet tages i brug. Derfor anbefaler vi at medfølgende brugervejledning gennemlæses grundigt. Dette medvirker til at give mange års problemfrit brug af maskinen.
  • Page 54 Disse symboler er placeret ved siden af den del af teksten, hvor risikoen er omtalt. Arbejd sikkert! JEROS A/S har gjort sig alle mulige anstrengelser for at orientere Dem så godt og grundigt som muligt om de eventuelle risici, som er forbundet med omgangen med maskinen. Man skal selv være opmærksom på, at overholde de beskrevne adfærdsregler/forskrifter.
  • Page 55 (ekstra) bestilte dele og tilbehør. Kontakt under alle omstændigheder JEROS A/S i tilfælde af skader.
  • Page 56 SIKKERHEDSFORSKRIFTER Tegnforklaringer På maskinen er placeret en række advarselsskilte. Disse er forklaret nedenfor. Advarsel om fare for elektrisk stød. Mærkaten er placeret på afskærmninger, bag hvilke der er monteret elektriske komponenter eller ledninger med risiko for elektrisk stød ved berøring. Undgå...
  • Page 57 Ved evt. spørgsmål vedr. funktion, garanti eller reservedele bedes henvendelse rettet til vor serviceafdeling Åbn ikke maskinens låg mens et vaskeprogram er i gang. Dette kan medføre skoldning og sprøjt med aggressivt sæbevand, der kan beskadige øjnene. Vigtigt! Overholdes sikkerhedsforskrifterne ikke, kan JEROS A/S ikke gøres ansvarlig overfor personskader.
  • Page 58 Installationsvejledning JEROS grovopvaskere skal for at virke optimalt installeres på et fast solidt underlag, og maskinen justeres via de justerbare fødder, således at maskinen står vandret. JEROS grovopvaskere skal tilsluttes vandinstallation, og stophane skal være åben, før der tilsluttes spænding til maskinen.
  • Page 59 Afløbstilslutning. Maskinen må kun opstilles i rum hvor der forefindes gulvafløb. Fleksibel afløbsslange skal monteres til gulvafløb, med max. højde på 30cm over gulv. El-installation. Tilslutningen skal udføres med afbryder i den faste installation. Afbryderen skal kunne sikres imod utilsigtet genindkobling, og kan f.eks. være i henhold til IEC 60947-3. Afbryderen skal være placeret således at den altid er let tilgængelig.
  • Page 60 JEROS grovopvasker er en betjeningsvenlig maskine, der kan betjenes fra tre sider. Den kan bruges som aflæggerbord for brugte redskaber. Er der brug for yderligere aflæggeplads kan specielle aflæggeborde og eventuelt også...
  • Page 61 BETJENINGSVEJLEDNING. Før dagens første vask. 1) Den røde lanse skal være sat i sæbedunk, og den grå lanse sat i skyllemiddeldunk. Hvis skyllemiddel-slangen er tom, pumpes doseringspumpen manuelt indtil slangen igen er fyldt. Til sidst kontrolleres at tilslutningshanen er åben, samt at hovedafbryderen er indkoblet. 2) Luk låget og tryk på...
  • Page 62 2) Kontroller at der er sæbe og skyllemiddel i dunkene. Maskinen er udstyret med advarselslampe for manglende sæbe men ikke manglende skyllemiddel. Manglende sæbe eller skyllemiddel vil gå ud over det gode vaskeresultat. Maskiner med motoriseret lågåbning. For maskiner med motoriseret lågåbning er der enkelte, beskedne ændringer i forhold til ovenstående.
  • Page 63 KONTROLPANEL 9110/9115 9117/9120/9130/8150/8160 01) Tast for ON / OFF af maskine. 02) Tast for tømning af vasketank. 03) Tast for spuleslange On/Off . 04A) Tast for pulserende vasketryk ON/OFF 04B) Tast for højt / lavt vasketryk 05) Vaskeprogram 1 (standard 3 min med nedsat temperatur og sæbemængde) 06) Vaskeprogram 2 (standard 3 min) 07) Vaskeprogram 3 (standard 6 min) 08) Dioder for indikering af at maskinen kører...
  • Page 64 RENGØRING OG VEDLIGEHOLDELSE Daglig rengøring Inden rengøring sikres at maskinen er slukket og afbrudt på hovedafbryderen. 1) Grovkurven tages ud og rengøres. 2) Grovfilteret (og finfilteret hvis maskinen er forsynet med et sådan) tømmes for affald og renses. Brug vand og en børste til at rengøre filtre. Slå dem ikke imod andre ting, da dette vil/kan deformere/beskadige filteret.
  • Page 65 Forebyggende vedligeholdelse. Ud over den beskrevne daglige vedligeholdelse, anbefales det, at der foretages regelmæssige eftersyn for at sikre, at maskinen altid fungerer optimalt. Følgende bør kontrolleres: 1) Dosering af sæbe- og skyllemiddel. 2) Filter i vandtilslutning renses. 3) Slanger, rørforbindelser og pumper efterses for utætheder. 4) Afkalk skyllesystem: Demonter skylledyser, skyllearme/ramme og varmelegeme.
  • Page 66 JUSTERING. Indstilling af sæbedosering. Der er mulighed for at indstille to forskellige værdier for sæbemængde på maskinen. Den ene værdi gælder for vaskeprogram 1 (tast 5) og den anden værdi gælder for vaskeprogram 2 og 3 (tast 6 og 7). Parameter 04 gælder for vaskeprogram 2 og 3 Parameter 03 gælder for vaskeprogram 1 Start med at indstille værdi for den laveste sæbemængde, og efterfyld så...
  • Page 67 Indstilling af skyllemiddeldosering. 1) Indstillingen af skyllemiddel foregår direkte på pumpen bag frontpladen. 2) Drejes skruen mod uret, doseres mere skyllemiddel (+). 3) Drejes skruen med uret, doseres mindre skyllemiddel (-). 4) Pumpen kan også pumpes manuelt ved at trykke på skruen. Dette gøres kun når sugeslangen er tom.
  • Page 68 DRIFTSFORSTYRRELSER Betydning af fejlkoder. AL 01 = Temperaturføler i vasketank afbrudt eller kortsluttet. Sluk og tænd igen for maskinen. Hvis fejl AL 01 kommer igen, tilkald montør. AL 02 = Temperaturføler i skylletank afbrudt eller kortsluttet. Sluk og tænd i igen for maskinen Hvis fejl kommer igen, tilkald montør.
  • Page 69 Maskinen vil ikke stoppe efter endt vaskeprogram. 1) Styring defekt 2) Skyllevand ikke 85° (evt. defekt varmelegeme i skylletank) Maskinen tager vand ind selv om styrestrømmen er afbrudt. 1) Magnetventil Y1 lukker ikke, snavs / defekt. Maskinen vil ikke tage vand ind. 1) Magnetventil Y1, snavs / defekt.
  • Page 70 Maskinen vil ikke dosere sæbe, diode i sæbetast blinker 1) Der mangler sæbe / sæbedunk tom. 2) Sugeslangen tilstoppet / defekt. 3) Sæbepumpe defekt. Maskinen vil ikke dosere skyllemiddel. 1) Der mangler skyllemiddel / skyllemiddelsdunk tom. 2) Kontraventil defekt på skyllemiddel pumpe. 3) Skyllemiddelpumpe ude af justering / defekt.
  • Page 71 BESKYTTELSE AF MILJØ. Bortskaffelse af maskine Når/hvis De ønsker at skaffe Dem af med maskinen ved skrotning, skal dette ske efter de miljøregler, der gælder på det pågældende tidspunkt og på det pågældende sted hvor maskinen skrottes. Maskinen er konstrueret af materialer, fortrinsvis rustfrit stål, der i meget stor udstrækning kan genanvendes.
