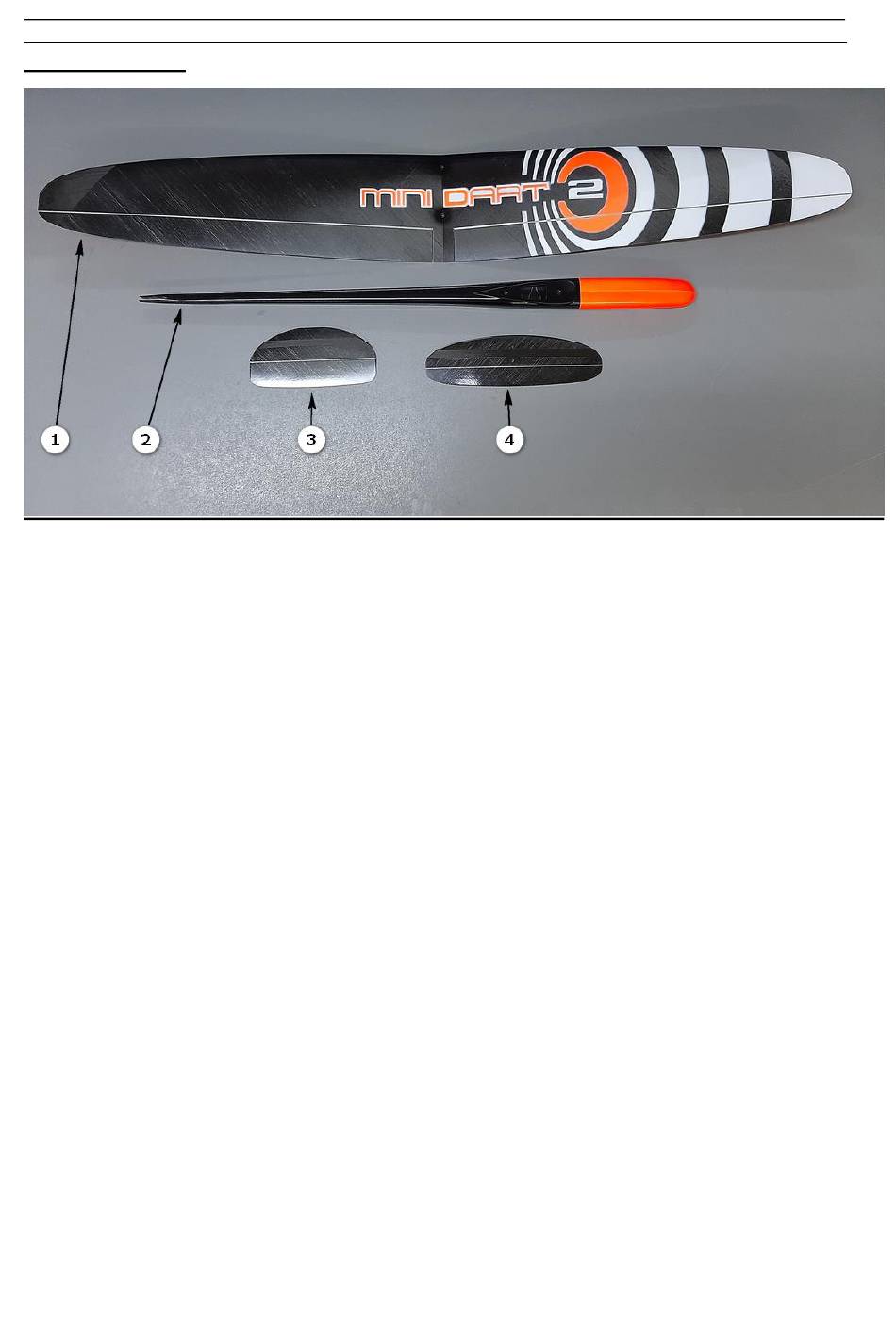

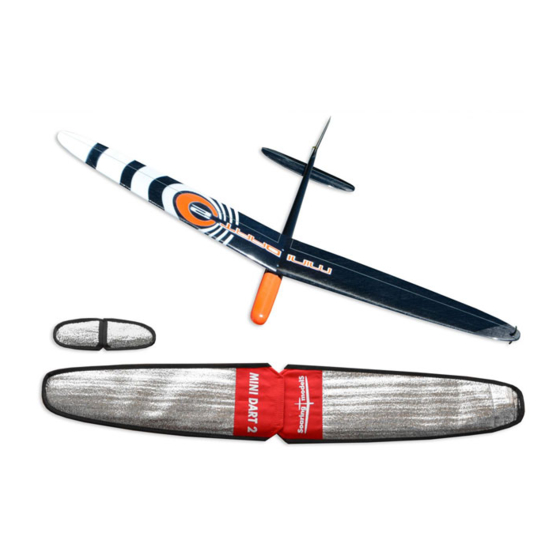

- Page 1 Mini Dart 2 _____ SoaringModels Assembly instruction _____ 2020 Kit components 1- Wing 2- Fuselage with nose cone 3- Fin 4- Stabilizer...
- Page 2 Mini Dart 2 _____ SoaringModels Assembly instruction _____ 2020 Accessories components 1- Servo frame 2- Peg 3- Tail rods 4- Crimping tubes for tail rods 5- Aileron’s horns 6- Fin horn 7- Stabilizer horn 8- Tube for rods 9- Aileron’s rods 10- Wing screws M2.5*10, M2.5*12...
- Page 3 Mini Dart 2 _____ SoaringModels Assembly instruction _____ 2020 Recommended electronic components 1- Battery 1S 250-500 mAh 2- Dymond D-47 *4 3- Receiver 4-8 channels Tools and materials for assembling 1- Ruler 2- Files 3- Sand paper 4- Knife 5- Cyanoacrylate...
- Page 4 Mini Dart 2 _____ SoaringModels Assembly instruction _____ 2020 Mounting of control horns Cut the slots for the control horns and aileron rods with a knife according to the pictures. In rudder on the right side in the middle. In elevator at the top side.
- Page 5 Mini Dart 2 _____ SoaringModels Assembly instruction _____ 2020 Heat shrink tubes at the both ends of torsions Make holes for torsions with a drill 1mm or needle, install torsions with epoxy...
- Page 6 Mini Dart 2 _____ SoaringModels Assembly instruction _____ 2020 Peg installation Prepare peg for gluing using file Make a slot for peg using drill and file. Distance from peg to wing tip 12-15mm. Glue peg with epoxy or cyanoacrylate.
- Page 7 Mini Dart 2 _____ SoaringModels Assembly instruction _____ 2020 Fuselage assembling Make holes in fuselage for rods and tubes according to the photos and glue tubes for aileron rods File out spot for tail boom on fin surface Insert fin into slot in tail boom set it vertically and fix with cyanoacrylate...
- Page 8 Mini Dart 2 _____ SoaringModels Assembly instruction _____ 2020...
- Page 9 Mini Dart 2 _____ SoaringModels Assembly instruction _____ 2020 Servos installation Screw on servos into frame and insert it into fuselage, glue frame to fuselage. For better CG servos in carbon fuselage should be far from nose as much as possible.
- Page 10 Mini Dart 2 _____ SoaringModels Assembly instruction _____ 2020 Set servos horns to neutral position. Lay rods through fuselage, put tubes 5mm length on rods and glue them between two servos. Set neutral position of tail servos, rudder and elevator.
- Page 11 Mini Dart 2 _____ SoaringModels Assembly instruction _____ 2020 Settings and flight modes Recommended CG position 58-62 mm from leading edge Launch mode – ailerons 1mm up Cruise - 0 Normal flight – 2mm down Thermal – 4-9mm down Brakes – maximum down...
