Cheeper
Assembly instruction
1. Equipment, materials and tools for assembly.................................................2
2. Assembly..........................................................................................3
3. Setting of the model.............................................................................11
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SOARING MODELS Cheeper
Summary of Contents for SOARING MODELS Cheeper

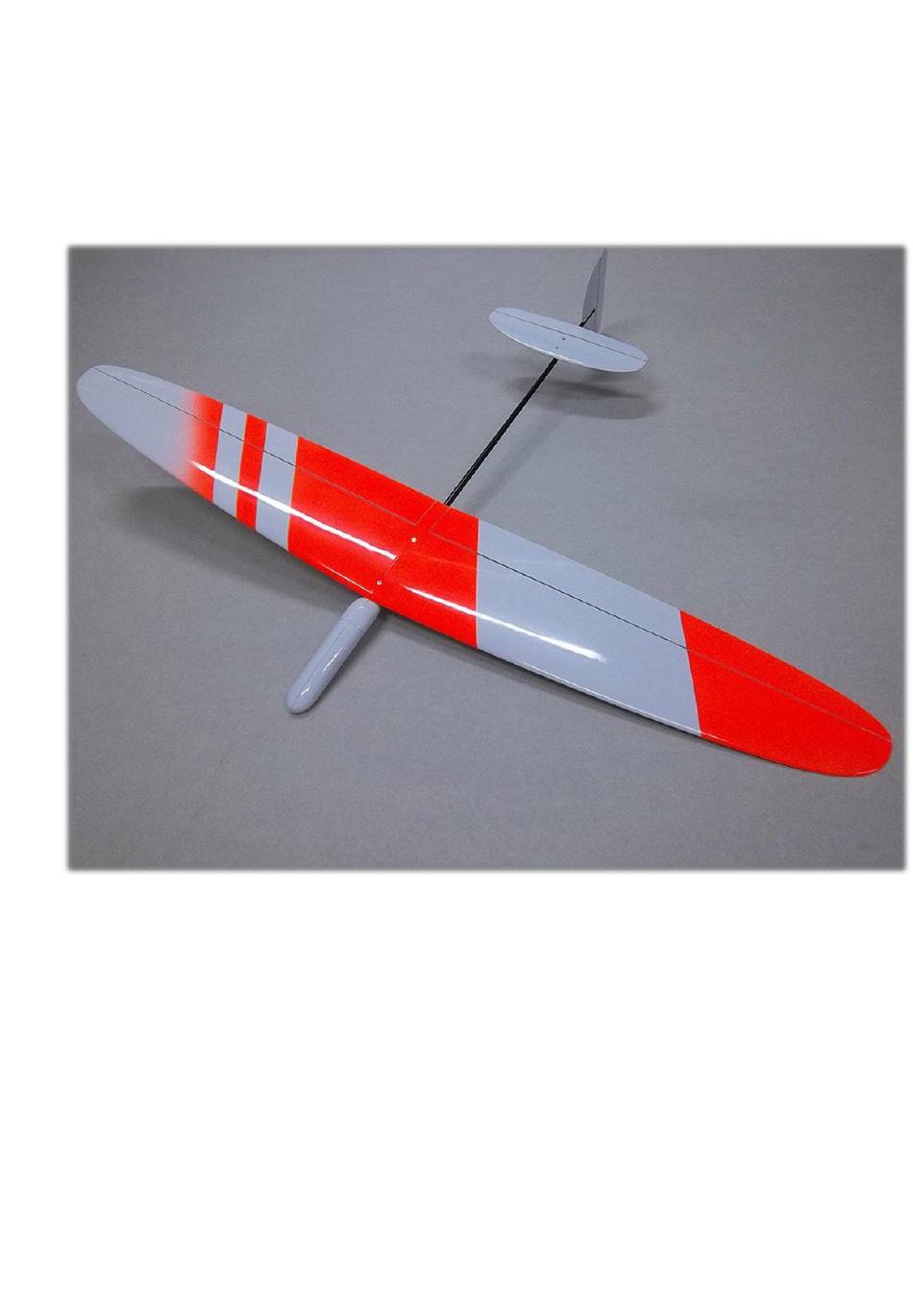

- Page 1 Cheeper Assembly instruction 1. Equipment, materials and tools for assembly...…………..…………………………..2 2. Assembly..…………………………………………………………………………..3 3. Setting of the model.…………..……………………………………………………..11...
- Page 2 Cheeper SoaringModels Assembly instruction 1. Equipment, materials and tools for assembly Picture 1.1. Supply kit 1 – Wing; 11 – Rod tips (4 pieces); 2 – Fuselage; 12 – Heat shrink tube; 3 – Stabilizer; 13 – Tail control horns (2 pieces);...
- Page 3 Cheeper SoaringModels Assembly instruction Materials and tools for the installation of the model: 1) Liquid superglue (Akfix 702); 2) Superglue activator; 3) Epoxy; 4) Masking tape; 5) Sandpaper №240-320; Ø Ø 6) Drills 7) Needle file (round and flat); 8) Pliers;...
- Page 4 Cheeper SoaringModels Assembly instruction Picture 2.1. Pasting in the control horn of the rudder Picture 2.2. Pasting in the control Picture 2.3. Pasting in the control horn of the horns of the ailerons elevator 2.2. Pasting in the fin Set up the wing and the stabilizer, insert the fin into the groove, set it vertically and carefully pour it with superglue.
- Page 5 Cheeper SoaringModels Assembly instruction 2.3. Installing servos and tail rods Mark out the holes for tubes, transmitter antennas and wires of the aileron servos with Ø a pencil, drill with a 2-mm drill and finish with a needle file. Picture 2.5. Rework of the pod Glue the tip to one of the ends of the carbon fiber rods, put on the thermal shrinkage and heat shrink.
- Page 6 Cheeper SoaringModels Assembly instruction Cut off two 60-mm-long tubes, glue them like in the picture 2.7, glue the other 5- mm-long ones with superglue to the beam with the pace of 50-60 mm Picture 2.7. Pasting in the rod housing tubes Cut off the eyelets on servos, wrap them with masking tape and, if possible, with thin strong thread.
- Page 7 Cheeper SoaringModels Assembly instruction Temporarily glue 2 servos and an battery with tape to the beam in the most forward position. Make sure the cap can be put on and machine rockers don’t touch it. Glue the servos to the beam using superglue.
- Page 8 Cheeper SoaringModels Assembly instruction Picture 2.12. Installing the aileron servos. 2.5. Inserting the dowel for throwing Round the dowel with sandpaper until the shape is comfortable for you to use Picture 2.13. Dowel for throwing...
- Page 9 Cheeper SoaringModels Assembly instruction At the distance of 15 mm from the wingtip drill a hole for the dowel and then finish it with a needle file. Spread the holes inside with epoxy, insert the dowel and form a rounding as it is shown in the picture.
- Page 10 Cheeper SoaringModels Assembly instruction 2.6. Installation of the aileron rods Insert the rode into the control horn, denote the position of the hole of the machine rocker with a marker, bend the edges of the rods with pliers. Picture 2.15. Installation of the aileron rods 2.7.
- Page 11 Cheeper SoaringModels Assembly instruction 2.8. Final assembly Fix the rods in the control horns by the pieces of the thermal shrinkage (except the elevating rudder rod) Picture 2.17. Fixation of the rods in the control horns Stretch the wires of...
- Page 12 Cheeper SoaringModels Assembly instruction 3. Setting of the model Set up the receiver and establish the alignment at the distance of 50-52 mm from the front edge. We recommend setting up 5 flight modes on the transmitter Start - 0,5mm up...
