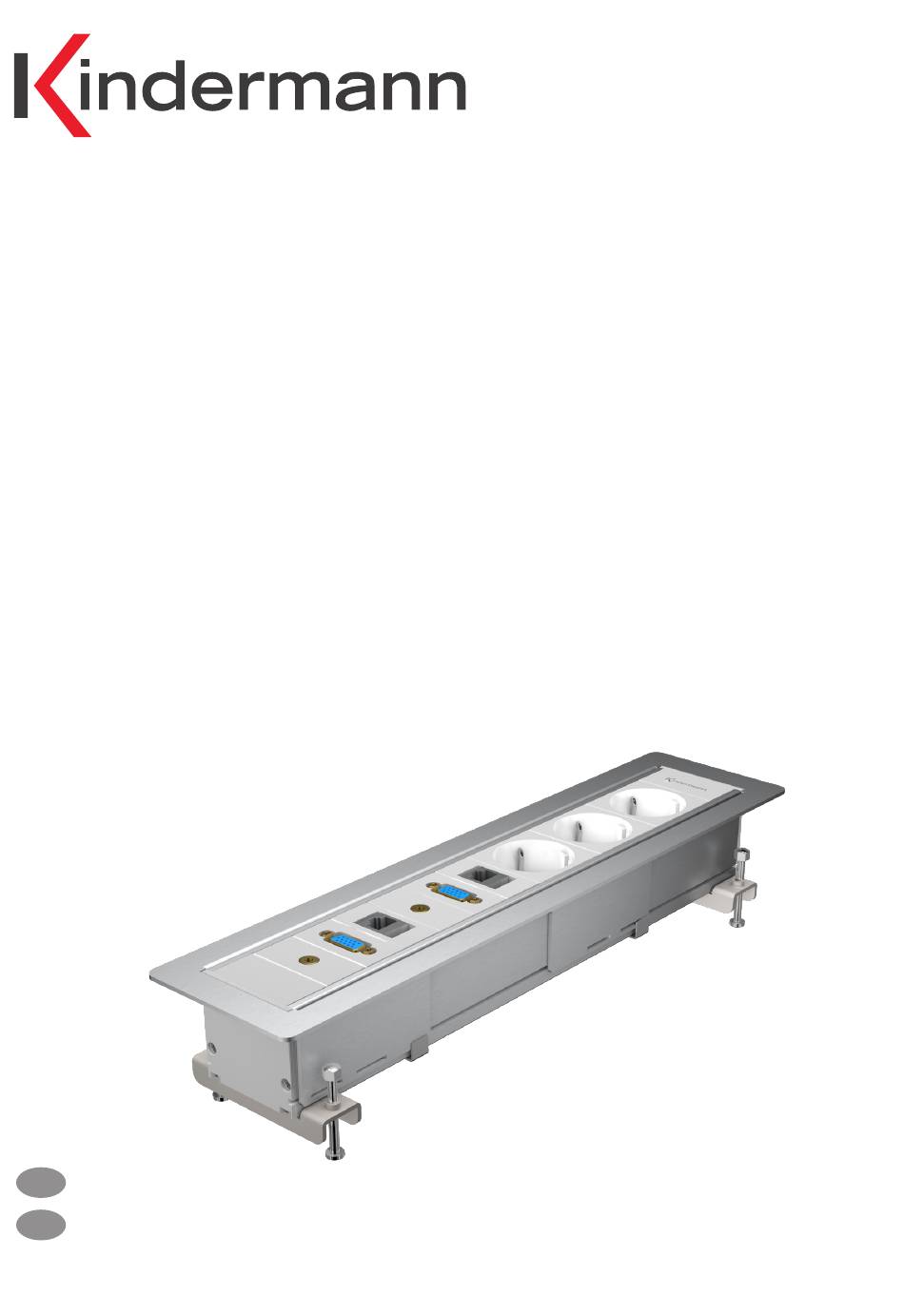

- Page 1 CablePort frame Art.-Nr. 7449 000 020/022 4-fach Ref. No. 7449 000 020/022 for 4 adapter plates Art.-Nr. 7449 000 021/023 6-fach Ref. No. 7449 000 021/023 for 6 adapter plates Montageanleitung – Mounting Instructions 11.2016...
- Page 2 Übersicht – Overview Aluminium-Rahmen 4-fach bzw. 6-fach Aluminium frame for 4 or 6 adapter plates Modulträger 4-fach, bzw. 6-fach (nicht im Lieferumfang, getrennt bestellen) Module panel for 4 or 6 adapter plates (not included, must be ordered separately) 4x Halteklammer; mit 4x Nutensteinen und 4x Schrauben M3 x 6 4x brackets;...
- Page 3 Einbau einfach, schnell und sicher. The CablePort frame can be used for a multitude of applications. It can be mounted into a table and generally into furniture, it can also be used in showrooms and in display windows, at exhibitions and on demonstration stands.
- Page 4 Use only in closed, dry areas. 7449 000 020 / 7 449 000 021 / 7 449 000 022 / 7 449 000 023 D GB 2016-11/842 053 Änderungen vorbehalten Printed in Germany Kindermann GmbH · Mainparkring 3 · D-97246 Eibelstadt · E-Mail: info@kindermann.de · www.kindermann.com...
