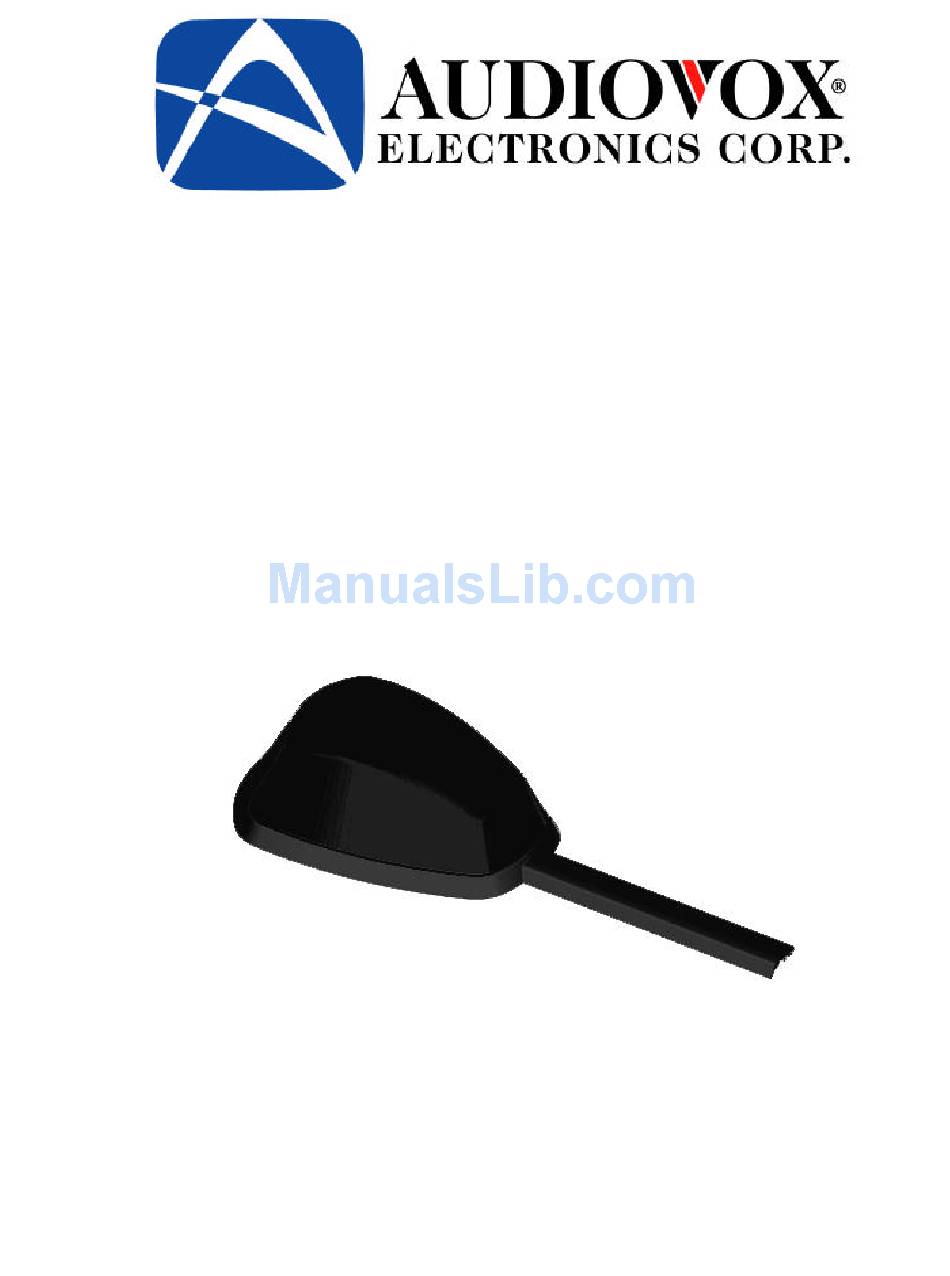

- Page 1 Installation Guide For the Roof Mount Satellite Antenna for SIRIUS/AVX Based Receiver Unit MODEL SRANT-RMSIR...
-
Page 2: Table Of Contents
Contents 1 Introduction... 2 2 Roof- mount Antenna ... 2 3 General Instructions ... 3 4 Sedans ... 4 5 Convertibles ... 7 6 SUV’s, Minivans and 5 Door Vehicles ... 8 7 Pickup Trucks ... 9... -
Page 3: Introduction
1 Introduction Your new Sirius satellite antenna, approved by Sirius Satellite Radio, Inc., has been specially designed to receive signals from Sirius’ three satellites and Sirius’ network of ground-based “repeater” transmitters. Figure 1: Ideal reception pattern Figure 2: Effect of obstruction on reception pattern... -
Page 4: General Instructions
3.1 Mounting location The satellite antenna should be mounted hori- zontally on a metal surface measuring at least 18 inches by 18 inches. The best reception quality is achieved at the highest point of the vehicle (i.e. -
Page 5: Sedans
Figure 6: Removing antenna 4 Sedans Figure 7: Installed antenna The antenna module should be located along the centerline of the roof, at least 4 inches from the rear window. The antenna cables should be tucked and routed underneath the rubber molding around the rear window and into the trunk 1. - Page 6 There are two types of window moldings, used on most vehicles. Both are suitable for conceal- ing the antenna cable. Figure 11: Outside rubber molding (most common) Figure 12: Encapsulated molding (less common) Note: The window molding will be more flexi- ble and easier to work with at room temperature or above.
- Page 7 Figure 16: Cables routed directly through the molding and through the cable channel to the interior 7. If there is no suitable cable channel, the ca- ble may be routed directly from the window molding to the right or left corner of the trunk. Figure 17: Cable routing along the t runk rubber molding It may be necessary to remove the plastic hous- ings from the antenna connectors in order to...
-
Page 8: Convertibles
5 Convertibles Figure 20: Mounted on trunk of sedan Figure 21: Mounted on trunk of convertible On convertibles (and some sedans which have insufficient space under the window molding) the antenna module should be located on the centerline of the trunk approximately 6 inches from the rear window. -
Page 9: Suv's, Minivans And 5 Door Vehicles
Figure 25: Antenna mounting on composite 6 SUV’s, Minivans and 5 Door Vehicles Figure 26: Minivan with Antenna Module The antenna module should be located on the centerline of the roof, not less than 4 inches from the gap between the roof and tailgate. Note the following: If the vehicle is equipped with a roof rack, the crossbar should be placed at least 6... -
Page 10: Pickup Trucks
b. Alternatively, the cable may be hidden under the rubber molding following the metal groove underneath the molding to the interior. Figure 30: Hiding the cable under the rubber molding Figure 31: Going inside under the interior trim 7 Pickup Trucks Figure 32: Pickup truck with antenna module The antenna module should be mounted on the centerline of the roof approximately 4 inches... - Page 11 12 MONTH LIMITED WARRANT Y- AUDIOVOX CORPORATION (the Company) war- rants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the...
- Page 12 128-6440...
