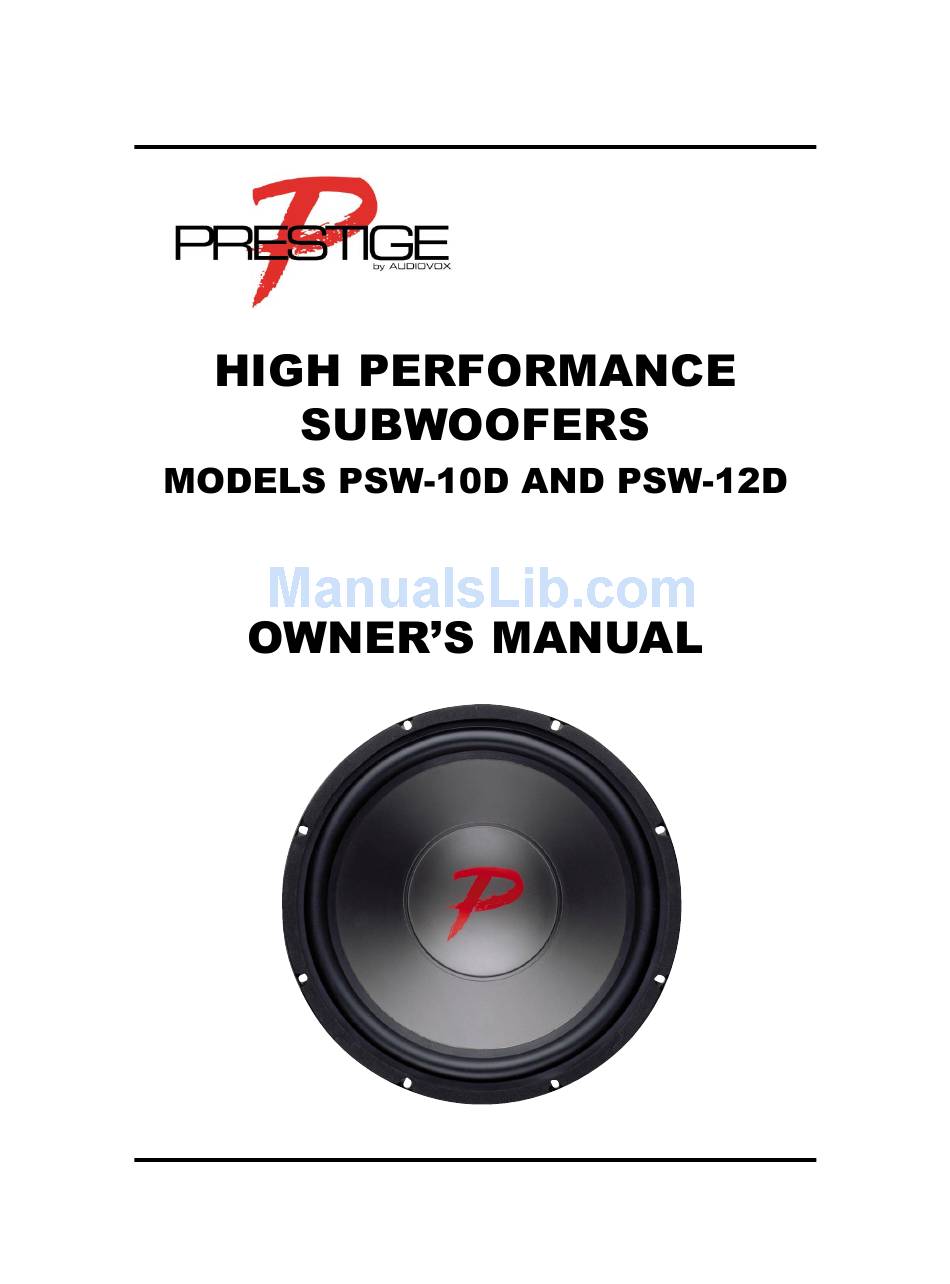

Page 2: Subwoofer Parameters
Congratulations on your purchase of the Prestige High Performance Subwoofer. The Prestige Subwoofers are designed to provide you with high quality Bass reproduction required to make your car audio system perform to its full potential. PRESTIGE Subwoofer Features Dual 4-Ohm voice coil for maximum flexibility and performance Low-Q parameters for Isobaric and small sealed box enclosures Vented magnet for improved performance Gold-plated binding posts that can accept up to 10-gauge wire... - Page 3 each other in parallel, a 1-Ohm monaural output would result (See Fig. 2). On the other hand, if your amplifier is rated for 4-Ohm operation in bridged or one-channel operation, series-connect the woofer voice coils (See Fig. 3). If the amplifier is rated for 8 Ohms, interconnect the voice coils of the woofer in series as shown to obtain an 8-Ohm monaural output (See Fig.
-
Page 4: Installation Recommendations
SERIES/PARALLEL CONNECTION USING THREE WOOFERS Three dual 4-Ohm voice-coil woofers can be connected in such a way as to produce a 0.66-Ohm (See Fig.8) or 2.66-Ohm monaural output as shown below (See Fig.9). INSTALLATION RECOMMENDATIONS To realize the utmost in sound reproduction from your subwoofer(s), follow these installation recommendations: Use a quality large gauge wire to connect your subwoofer to the amplifier... - Page 5 DESIGNING AND BUILDING YOUR SPEAKER ENCLOSURE The following parameters are offered to assist you in designing your own enclosure. There are many computer software programs available on the market that, along with this information, will allow you to construct the type of enclosure that best suits your needs.
- Page 6 10" W (inside) x 16" H (inside) x 6" D (inside) (sealed side) x 6.25" D (inside) (vented side) © 2000 Audiovox Corporation, Hauppauge, NY 11788 (Vb) Box Volume = 1.42.Cu. Ft. F3: 52 Hz Dimensions: 13.5" W x 21.75" H x 8.25" D (Vb) Box Volume = 1.68 Cu.
