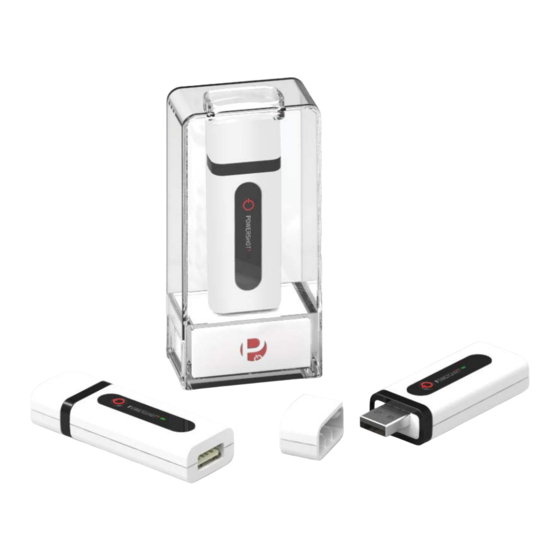

Ultra-portable mobile device charger with optional flash memory

Advertisement

Quick Links

How It Works
Charge it.
Power up your mobile device.
CHARGES YOUR MOBILE PHONE AND PORTABLE DEVICES
ON THE GO.
Features
Rechargeable worldwide via USB
Efficient, highly engineered and micro-controlled universal charging system
LED status indicator shows the battery status and when device is charging
Lithium polymer power cell with three layers of built-in stability and safety protection
Optional
2 GB, Hi-Speed USB 2.0/1.1 interface, quick and flexible data storage
Compatible with Windows ME, 2000, XP, Vista, 7, 8, Linux Kernel 2.4 and Mac OSX
Operating Instructions
Remove cap from PowerShot II, then plug it into a USB port to charge. The LED flashes
green when charging begins.
Disconnect the charger
Use the appropriate USB cables to plug your device into the PowerShot II to charge
Press the Power Button to start charging your device
USB memory stick is Plug & Play, compatible with any multimedia and data storage
Warranty
Powerstick.com warrants its PowerSeries products against defects for life
if the item has been purchased from an authorized distributor and proof of payment can
be verified. The defective product must be mailed postage paid to:
Powerstick.com, 29 Camelot Drive, Ottawa, Ontario, K2G 5W6, CANADA
Upon receipt, Powerstick.com will either correct any problems with the unit and
restore it to working condition, or replace the unit, at its discretion. This warranty will not
apply to units that have been purchased from non-authorized sources or ones damaged
through improper use.
PowerShot II is a trademark of Powerstick.com Inc. All rights reserved.
POWERSHOT
by powerstick.com
PORTABLE CHARGER
CHARGEUR PORTATIF
CARGADOR PORTATIL
Available In 2 Colors
NOTE: In case of problems with your unit, press the power button for 5 seconds to reset
it.
Specifications
Battery Type
Lithium Polymer
Output Voltage
DC 5V max
Output Current
500 mA max
Operating Temperature
0 to 40 C/32 to 104 F
Storage & Transportation Temperature
-20 to 50 C/-4 to 122 F
Charge Time
(90% capacity)
~90 minutes
2.85" x 1" x 0.6"
Dimensions
Weight
0.85 oz.
Cycle Life
1,000+
Charge Input Voltage
4.5 - 5.5V
Charge Input Current
10 - 400 mA
Battery Capacity
400 mAH
Memory Capacity
2 GB (Optional)
†Charging capability and time is based on the power capability of the computer's USB port/hub.
Safety
Do not operate in wet conditions or submerge in water.
Do not charge the PowerShot II above 40 C/100 F or below 0 C/32 F.
Do not charge your tablet, cellphone, or portable device above 40 C/100 F or below
-15 C/5 F. This device complies with Part 15 of FCC rules. Operation is subject to the
following conditions:
1.
This device may not cause harmful interference.
2.
This device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
C
C
US
US
Printed in Canada.
II
Redesigned Smaller Than Ever
POWERSHOT
ULTRA-PORTABLE MOBILE DEVICE CHARGER WITH OPTIONAL FLASH MEMORY
II
TM
