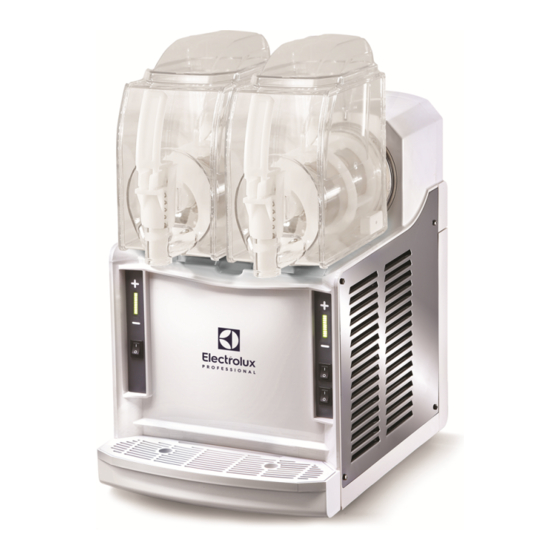

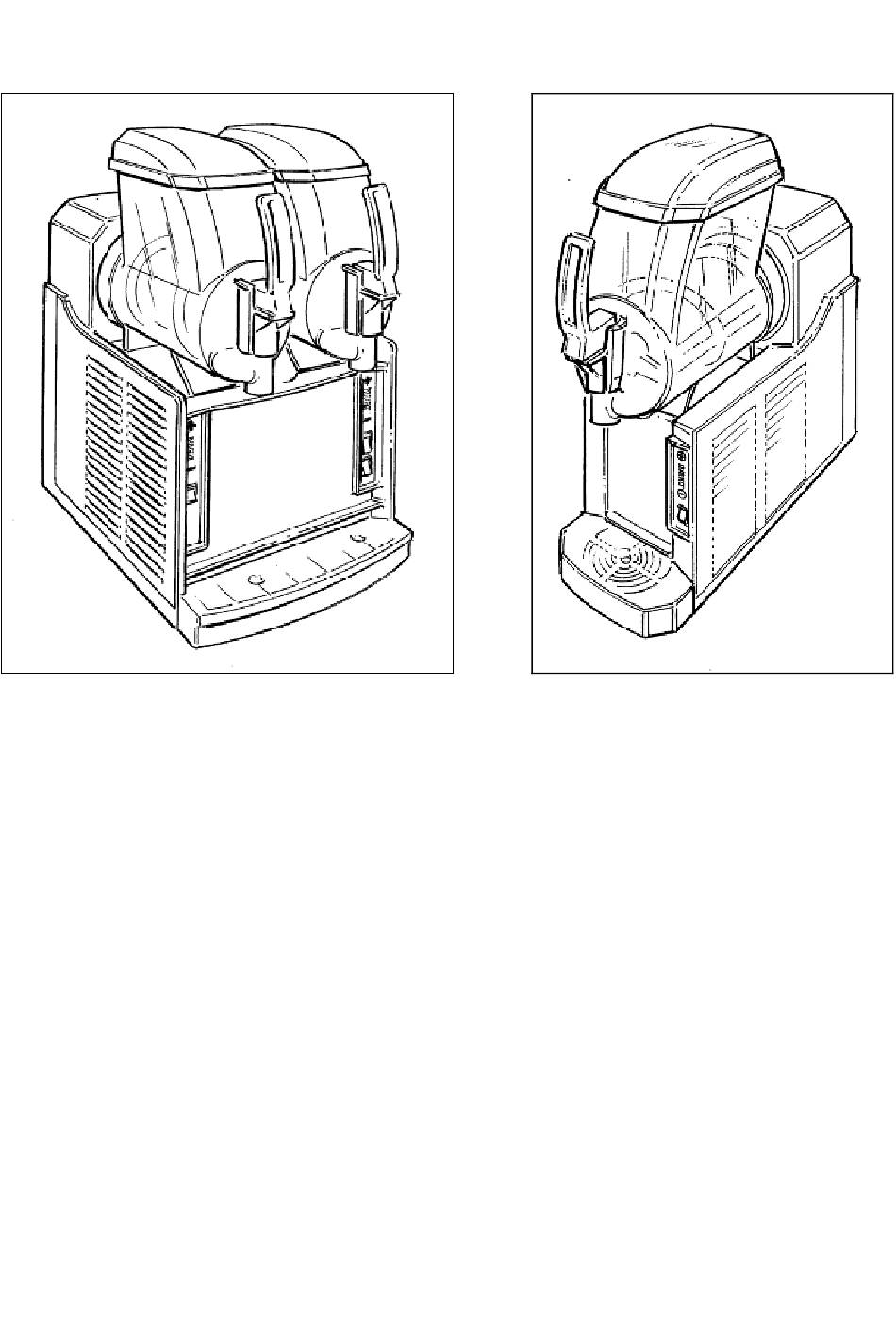

- Page 1 NINA Operator’s manual Data di emissione: February, 2019 Revisione: 2 Pag. : 1/24...
- Page 2 In case of loss or damage, it’s possible to ask for a copy to Electrolux Professional SPA, pointing out the information stated on the identification label;...
-
Page 3: Table Of Contents
INDEX 1. SAFETY INSTRUCTIONS......4 Cleaning and daily sanitizing procedures ..5 2. EQUIPMENT KIT ........11 3. TRANPORT TIPS ........11 4. LIFTING TIPS ..........11 5. TECHNICAL SPECIFICATIONS ....12 6. POSITIONING ..........13 7. CONNECTION TO THE POWER SUPPLY MAINS ............14 8. START-UP PROCEDURES .......15 9. -
Page 4: Safety Instructions
his appliance must be installed in places 1. SAFETY INSTRUCTIONS where it can be checked by qualified personnel. his installation and operation manual is an integral part of the equipment and must o not store explosive substances such as be kept for future consultation. aerosol cans with a flammable propellant in this appliance. -
Page 5: Cleaning And Daily Sanitizing Procedures
the frequency of cleaning and conservation of products used. f the power cable is damaged, it must be replaced by the manufacturer, its after sale he cleaning instructions explained in this service or by qualified personnel, to prevent any possible risk. section are essential procedures to remove bacteria and maintain a sanitarily clean machine. - Page 6 top the refrigerating system (by switching off all the LED acting on the – button or by pressing the +button and keep it pressed to switch off the defrost mode) and let the machine run with the only auger activated (all LED switched off) for ten minutes.
- Page 7 !Caution! o avoid electrical shock or contact with moving parts, before proceeding with the disassembling operations, make sure all switches are in “OFF” position and that the main power supply is disconnected. witch off the machine and disconnect the power cable. emove the cover.
- Page 8 ull out the mixing unit, the bell shaped seal and the bowl gasket on the back (fig.7 and 8). emove the drip tray by moving it upward and pulling it outward (fig.9). Fig. 7 horoughly wash all the removed components with hot water and dishwashing, but do not use abrasive detergents or powders that can damage the bowl.
- Page 9 nce performed all these cleaning and sanitizing procedures, it’s possible to reassemble all the components. he correct assembly of the device is essential to prevent leakage of product and damage of the machine. o assemble the machine you will need an approved lubricant (such as vaseline). Fig.
- Page 10 ubricate the rear of the tank where it meets with the seal to facilitate the reassembling procedures (see fig.15); Fig. 15 eassemble the bowl by positioning it back into its seat until it gets blocked into it (see fig.16). Fig. 16 e-insert the tap (fig.17) spreading Vaseline on the o-rings to facilitate sliding the tap in its seat until completely inserted.
-
Page 11: Equipment Kit
3. TRANPORT TIPS SANITIZING prevent held hermetic compressor running into the cooling circuit, the device must be carried, stored and handled in henever the machine has remained unused the upright position, following the direction for some days after been cleaned and sanitized instructions on the packing. -
Page 12: Technical Specifications
Noise emissions 5. TECHNICAL SPECIFICATIONS The continuous, equivalent, weighted level of acoustic pressure is below 70 dB. Technical and electrical specifications In the event of breakdown: machine’s technical electrical specifications are stated on the identification In most cases, any technical problem can be plate, positioned in the internal part of the settled with slight interventions (please see the equipment;... -
Page 13: Positioning
6. POSITIONING FOR MAINTENANCE WORKER ONLY The installation and subsequent servicing operations must be carried out by skilled members who have been trained to use the device compliance with regulations in force. a) Remove the packing (fig.18) and preserve it in order to reuse for winter storage. - Page 14 7. CONNECTION POWER SUPPLY MAINS FOR SERVICEMAN ONLY Before fitting the plug in the power supply socket, your safety, already mentioned in the previous paragraph, please read the following precautions. machine’s electrical safety only guaranteed when it is connected to a suitable earth system, structured as provided by the national safety current...
-
Page 15: Start-Up Procedures
8. START-UP PROCEDURES !IMPORTANT! BEFORE STARTING THE MACHINE, CARRY OUT THE CLEANING AND SANITISING PROCEDURES DESCRIBED IN CHAPTER 10. - Dilute and mix the product in a separate container according to the manufacturer’s instructions (see fig.21). NOTE: “mix” is the result of the blending between water or milk with the powder to make soft serve creamy product, sorbets, and similar products. - Page 16 - In order to activate the refrigerating system and to regulate the product consistency, it is necessary to use the buttons on the control board (fig.25); operating on the button, the number of lighted LED will increase with the product consistency; operating on the button, the number of lighted LED will decrease with the product consistency (fig.24).
-
Page 17: Operating Instructions
9. OPERATING INSTRUCTIONS Activating the main switch A on the front right side of the unit and then, only for NINA2, the small one (B for the right bowl, C for the left one), the augers will start rotating and mixing (fig.27). -
Page 18: Special Maintentance
10. SPECIAL MAINTENTANCE Caution Before proceeding with any maintenance operation, it is compulsory to switch off the machine and unplug it from the mains. Condenser filter cleaning In order to guarantee good cooling system performance, the condenser filter must be well cleaned every month... -
Page 19: Control And Replacement Of Seals
Control and replacement of seals Winter storage EVAPORATOR HARD SEAL To protect the unit during seasonal shutdown, it’s important to properly store the machine using the following procedures: Replace every 9 to12 months according to the conditions of use and level of maintenance. - Disconnect all power to the freezer. -
Page 20: Soft Serve Ice Cream Information
11. SOFT SERVE ICE CREAM 12. DISCLAIMER INFORMATION The manufacturer declines all responsibility for any damage that directly or indirectly might be OVERRUN brought on to people, things, animals, as a consequence of failure to comply with all While the product is frozen in the bowl, its instructions given in this manual with the volume increase;... -
Page 21: Troubleshooting Guide
13. TROUBLESHOOTING GUIDE NOTE: the following procedures must be performed by a qualified service technician. Problem Possible cause Solution The machine does not cool, space around machine Allow at least 20cm between the • • or cools only partially and inadequate for ventilation machine and anything next to it;... -
Page 22: Wiring Diagram
14. WIRING DIAGRAM Data di emissione: February, 2019 Revisione: 2 Pag. : 22/24... - Page 23 Data di emissione: February, 2019 Revisione: 2 Pag. : 23/24...
- Page 24 Electrolux Professional SPA Viale Treviso 15 33170 Pordenone www.electrolux.com/professional Data di emissione: February, 2019 Revisione: 2 Pag. : 24/24...
