OT-3G-08
3G GNSS TRACKER
Quick Guide
To start use OT-3G-08 , please follow
instructions below in numerical order.
For more detailed information, please refer
to OT-3G-08 User's Manual on Web Site:
www.hpu24.com
2.
Remove the battery cover
As shown below by red circle, please press the
cover at the center and pull downward to remove
the battery cover.
3.
Insert SIM card
2. PIN code checking of this SIM card has
been disabled
Version 0.1
Please make sure:
1. 3G data service of
this SIM Card is enabled.
1.
Packing List
...1430mAh, 3.7V
Li-ion Battery
.....USB(type A) to micro
4.
Insert the battery
As shown below, please insert the battery with

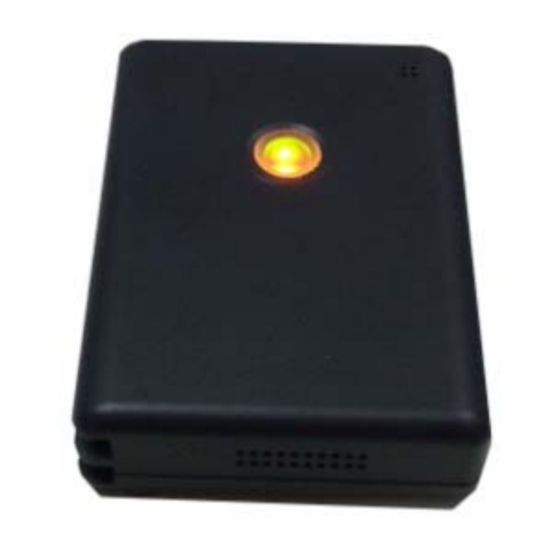

the right direction. Orange LED blinks for 5
seconds and then OFF when battery is well
connected.
...Quick Guide
OT-3G-08.Body
USB power cable
....Wireless Charging
Pad(Optional)
Advertisement
Related Manuals for APM OT-3G-08
Summary of Contents for APM OT-3G-08
- Page 1 3G GNSS TRACKER Li-ion Battery …Quick Guide Quick Guide OT-3G-08.Body To start use OT-3G-08 , please follow instructions below in numerical order. For more detailed information, please refer …..USB(type A) to micro to OT-3G-08 User’s Manual on Web Site: USB power cable www.hpu24.com...
- Page 2 Fully charge the battery SOS button The micro-USB connector is pointed by the red arrow as shown below. SOS Button Pressing SOS button will make calls, send SMS to preset phones , and send SOS message to cloud. Connect micro-USB connector to GT-200 and ...
- Page 3 Login. It could be in any language. Add a member in the group Phone and SMS Settings : SOS Help It’s very easy to manage multiple OT-3G-08 s in a Tick “Screen incoming calls”: These phone single login account. All group members could be numbers are used for Both SOS calls and tracked simultaneously (Group Tracking).
- Page 4 Time Interval Geo-Fence Tips Time Interval: The tracker updates its position once every this time interval. Disable: The position will be updated ONLY By Demand or Events. Cloud Notify Awake Suggest to enable all Cloud Notify alert options.
- Page 5 Warning C. Do not use or store the device in dusty or dirty The following suggestions help you protect the environment. It may create short circuit and harm tracker device from damage. the device. D. Do not attempt to open the whole device. A.
