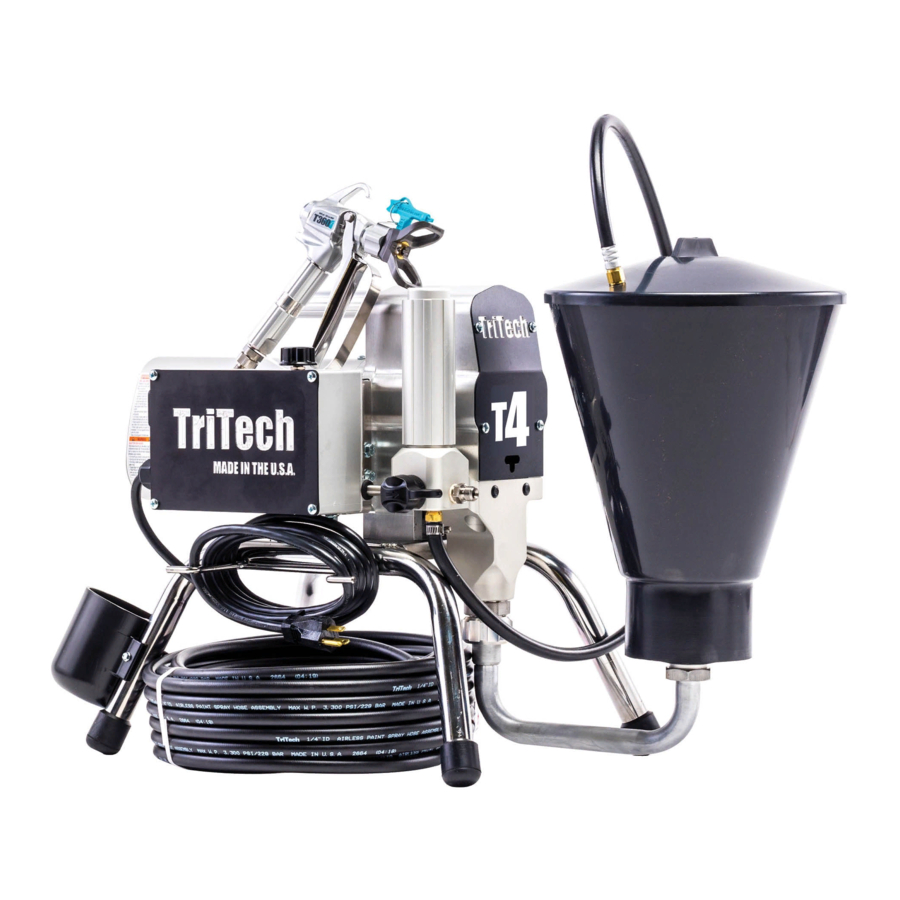

T4 Airless Sprayer.
USER
MANUAL
Aristospray (Ireland) Ltd
2b Stephenstown Industrial Park
Balbriggan
County Dublin
Ireland
K32 KV26
Email sales@aristospray.com
Web www.tritechairless.com
Phone
UK 01895 276751
Ireland 01 690 3162
International + 353 1690 3162
TriTechAirless
@Aristospray
Aristospray
2b:creative - 028 9266 9888
Advertisement
Table of Contents
Related Manuals for Tritech T4 Airless Sprayer
Summary of Contents for Tritech T4 Airless Sprayer
- Page 1 TriTech. T4 Airless Sprayer. USER MANUAL Aristospray (Ireland) Ltd 2b Stephenstown Industrial Park Balbriggan County Dublin Ireland K32 KV26 Email sales@aristospray.com Web www.tritechairless.com Phone UK 01895 276751 Ireland 01 690 3162 International + 353 1690 3162 TriTechAirless @Aristospray Aristospray 2b:creative - 028 9266 9888...
-
Page 2: Weee Compliance
TriTech Industries products are designed to meet Reduction of Hazardous Substance Directive 2011/65/EU 8June2011, the product manufactured by TriTech Industries do not contain materials that exceed thresholds for cadmium, mercury, hexavalent chromium, Polybrominated diphenyl ethers (PBDEs) or other regulated substances. - Page 3 Get immediate surgical treatment. Below are general warnings related to the use and maintenance, safe grounding and repair of the TriTech airless • Do not point gun at anyone or at any part of the body.
-
Page 4: Power Requirements
Do not use 1,1,1-trichloroethane, methylene chloride, other halogenated hydrocarbon solvents or fluids containing 1. Connect TriTech airless hose to sprayer. Tighten securely. such solvents in pressurized aluminum equipment. Such use can cause serious chemical 2. Connect other end of the hose to gun. - Page 5 13. Remove filter from gun and sprayer, if installed. Clean and inspect. Reinstall filters. Inspect upper packing. Replace if needed 14. If flushing with water, flush again with mineral spirits or TriTech Pump Cleaner to leave a protective coating to Paint leaking front wet cup prevent freezing or corrosion.
- Page 7 Pressure Relief Procedure The sprayer’s pressure must be manually relieved to prevent sprayer from starting or spraying EXTENSION CORD VOLTAGE DROP accidentally. 120V 15 AMP 100' 200' 300' Fluid under high pressure can be injected through skin and cause serious injury. To reduce risk of injury from injection, splashing fluid, or moving parts, 14 AWG 110.6...
- Page 8 PAINT/FILTER MANIFOLD SERVICE AND REPAIR (A) FLUID MANIFOLD REPACKING PAINT/FILTER MANIFOLD Follow pressure relief procedure before attempting to service or repair unit. 1. Remove suction set by unthreading nut item # 85, see frame and siphon tube then pull downwards the inlet adaptor from intake housing # 20.
- Page 9 23. If connecting rod is not in the down position plug unit in and cycle unit to get connecting rod into down position. 24. With piston slots aligned slide pump/filter manifold onto connecting rod #56 Diagram “B”. Push pump/filter manifold towards crank housing # 53 to line up dowel pins then thread mounting bolts #25 through pump filter manifold and thread into crank housing #53.
- Page 10 REPLACE CONTROL BOX Follow pressure relief procedure before attempting to service or repair unit. 1. If trouble shooting guide suggests replacing the control box follow the directions below. 2. Remove 6 screws #40 and remove cover plate #70. Diagram 3. Unthread transducer from fluid manifold #9. 4.
-
Page 11: Replace Motor
REPLACE TRANSDUCER REPLACE MOTOR Follow pressure relief procedure before attempting to service or repair unit. Follow pressure relief procedure before attempting to service or repair unit. If trouble shooting guide suggests replacing the transducer follow the directions If trouble shooting guide suggests replacing the motor follow the directions below. below. -
Page 12: Warranty Cover
Ireland) for use in the United Kingdom, Northern Ireland, the Isle of Man, the Channel Islands including Alderney, Guernsey and Jersey and the Republic of Ireland only. Such TriTech airless sprayers must be for the purchaser’s own use, not for hire purposes. Any TriTech airless sprayers not supplied by an approved dealer or for use in regions other than those listed are expressly excluded from this warranty.
